Lock System Does Not Lock

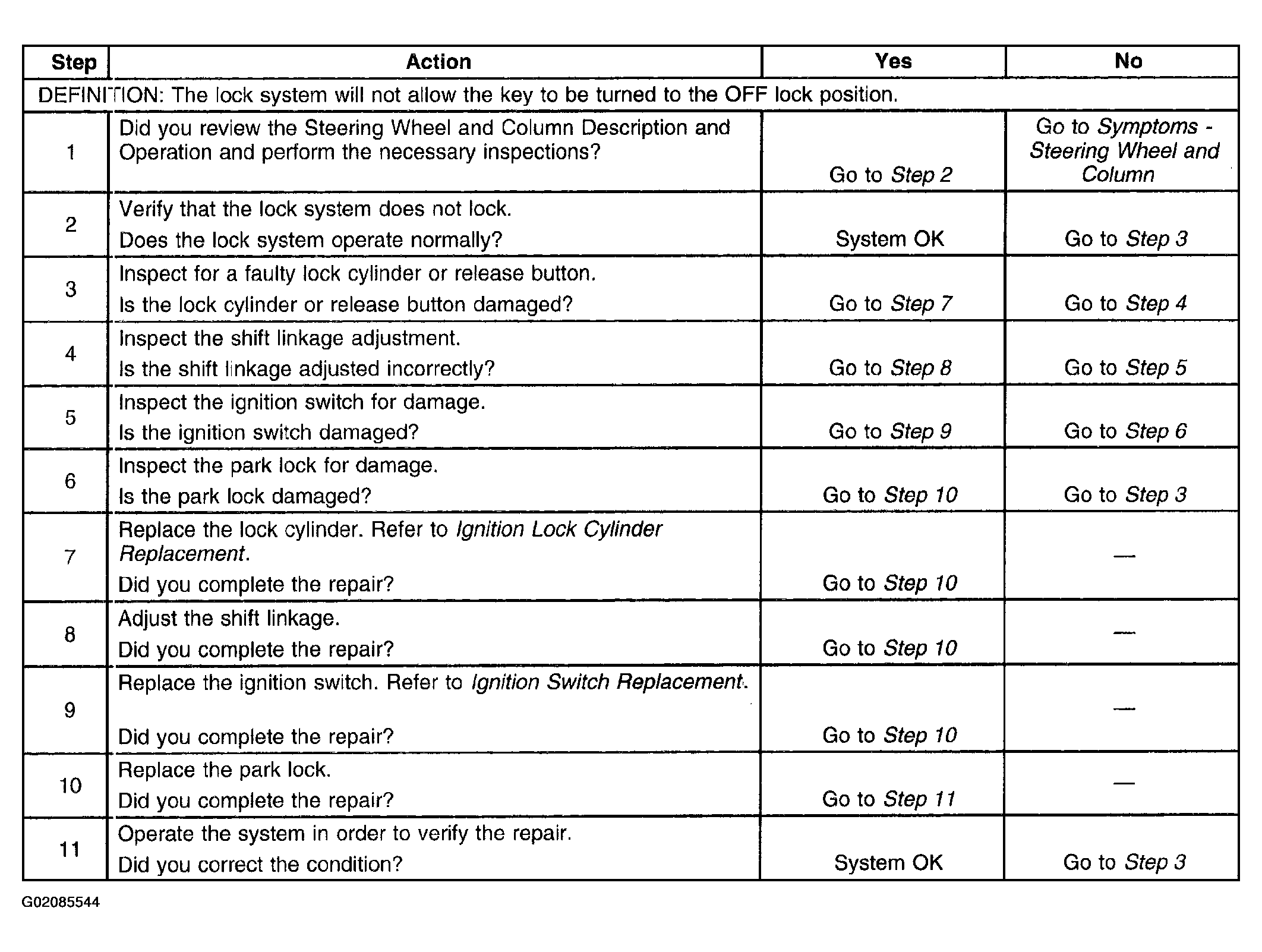

Fig 1: Lock System Does Not Lock - Diagnostic Table

G02085544

Courtesy of GENERAL MOTORS CORP.
