Steering Wheel and Column Connector End Views

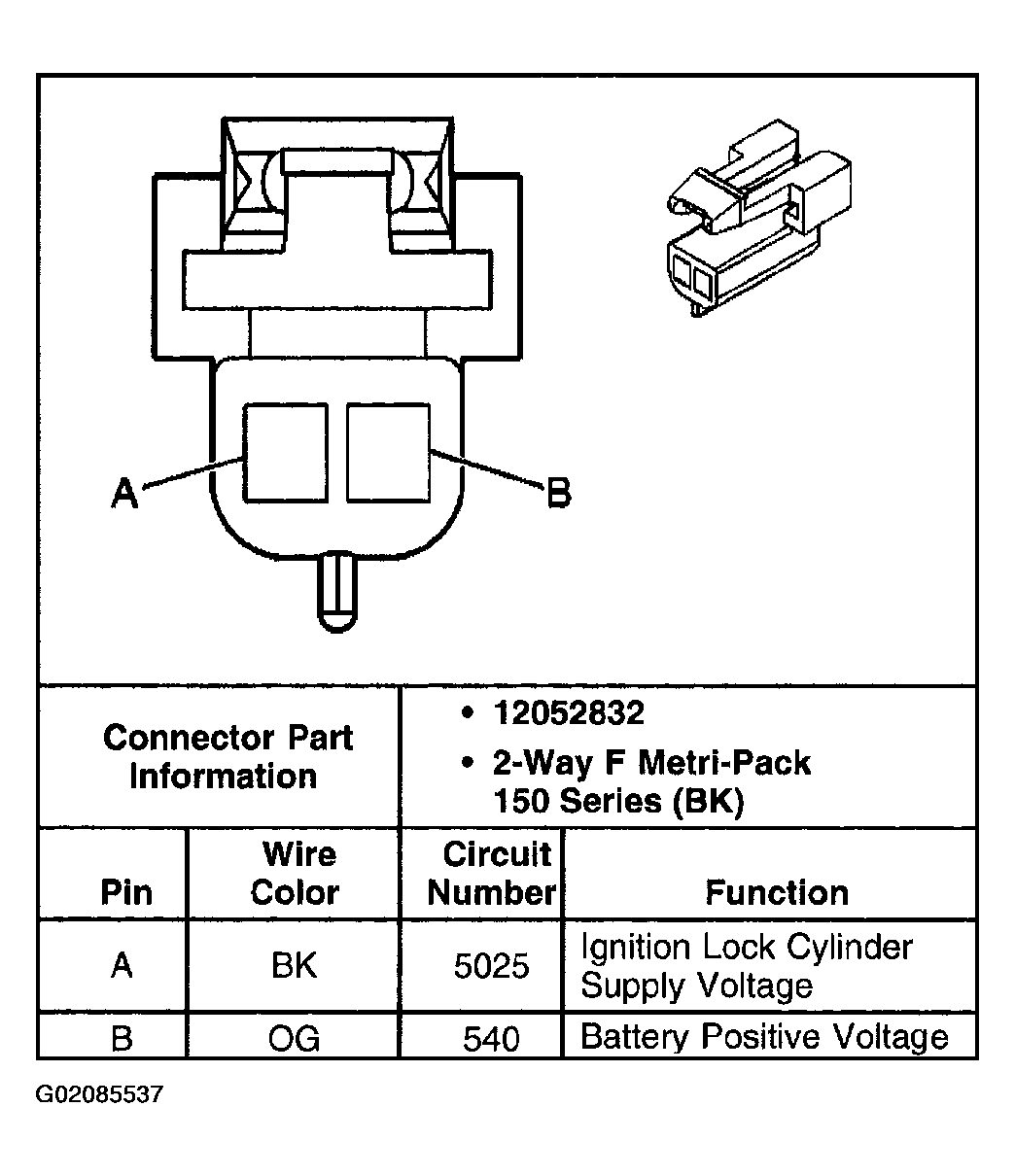

Fig 1: Ignition Lock Cylinder Control Actuator Connector
G02085537Courtesy of GENERAL MOTORS CORP.

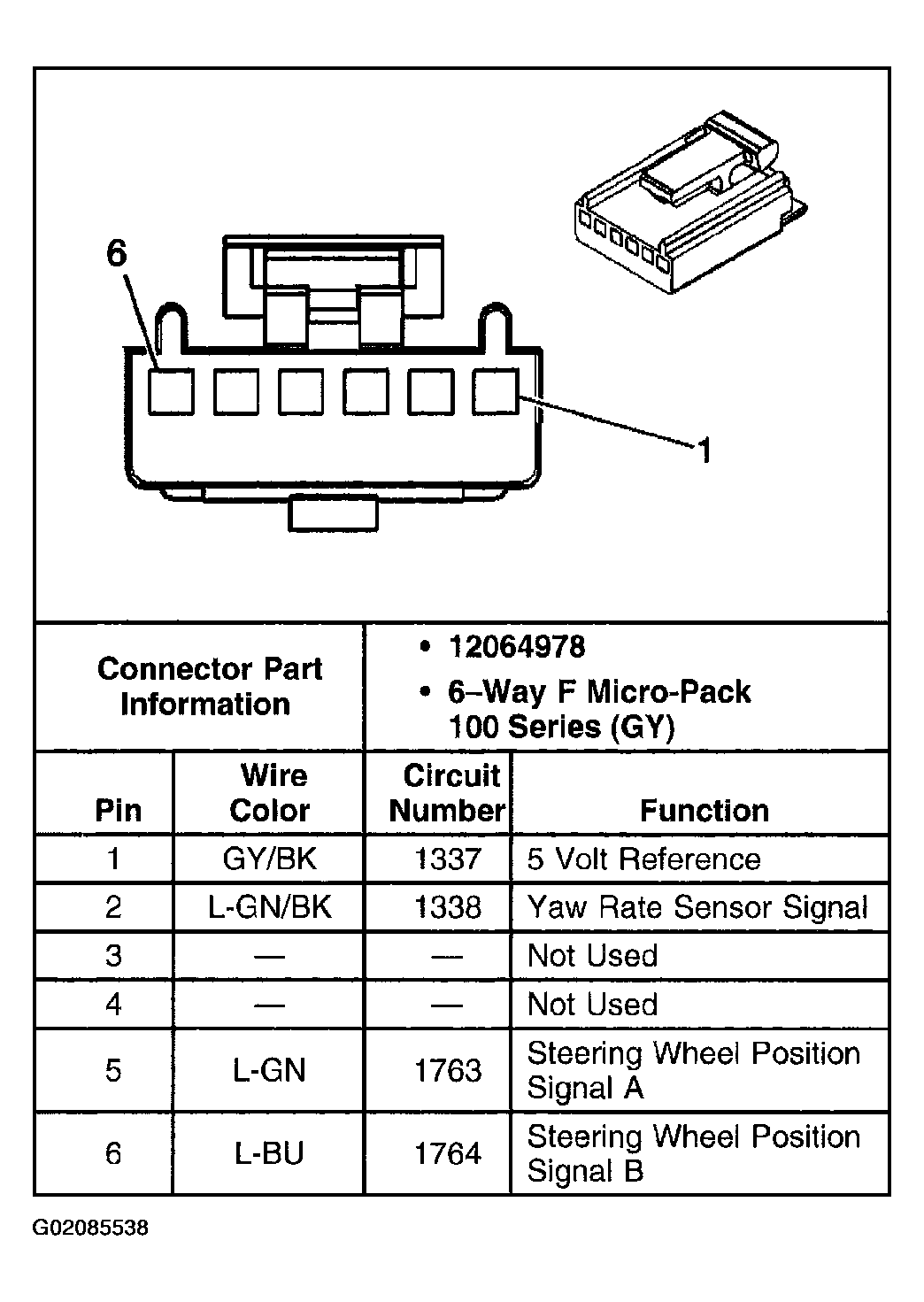

Fig 2: Steering Wheel Position Sensor Connector
G02085538Courtesy of GENERAL MOTORS CORP.
