Steering Column Disassembled View

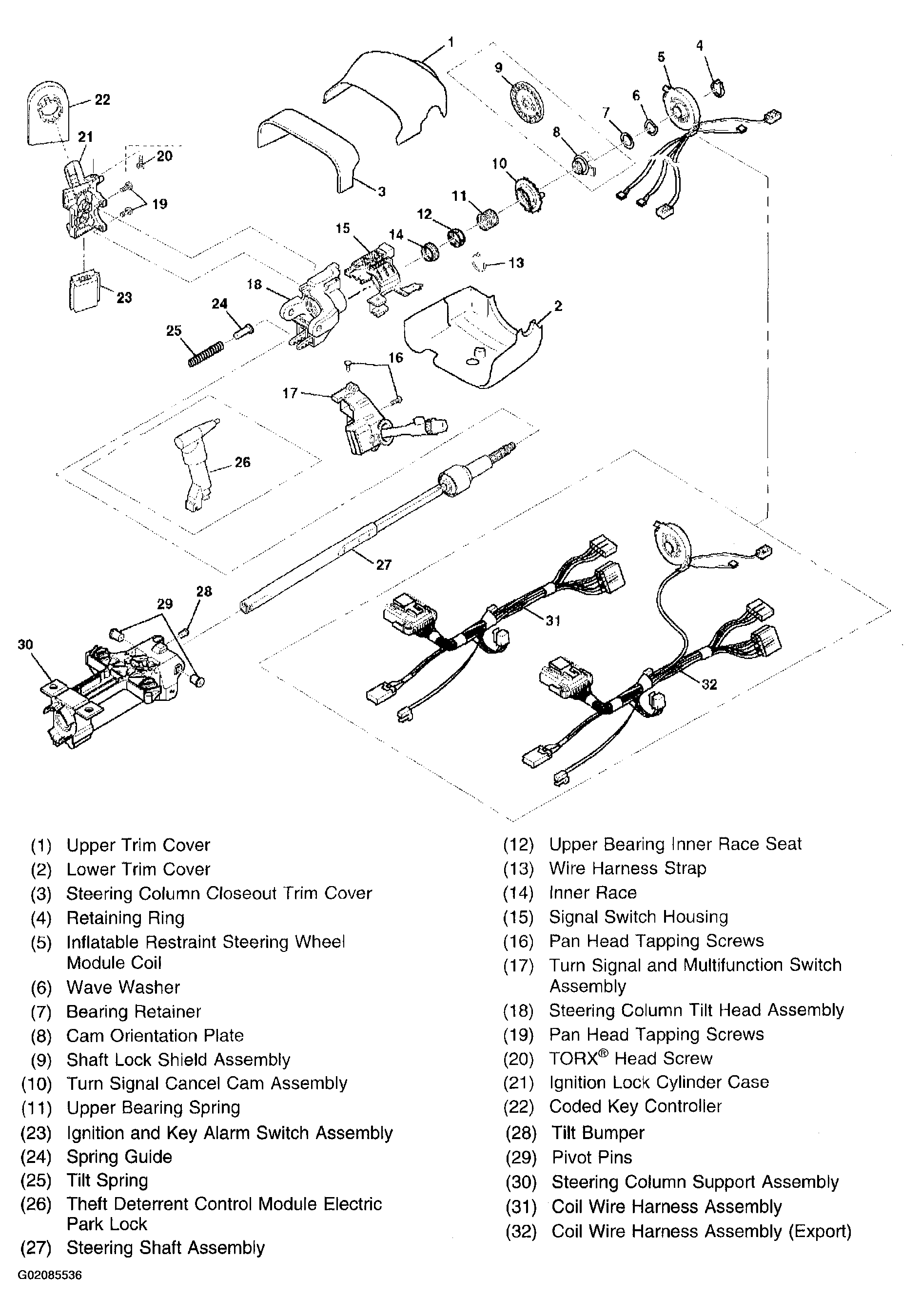

Fig 1: Exploded View Of Tilt Steering Column Components

G02085536

Courtesy of GENERAL MOTORS CORP.
