Installation Procedure

  1. Install the knee bolster trim (1).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the retaining screws (2).

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

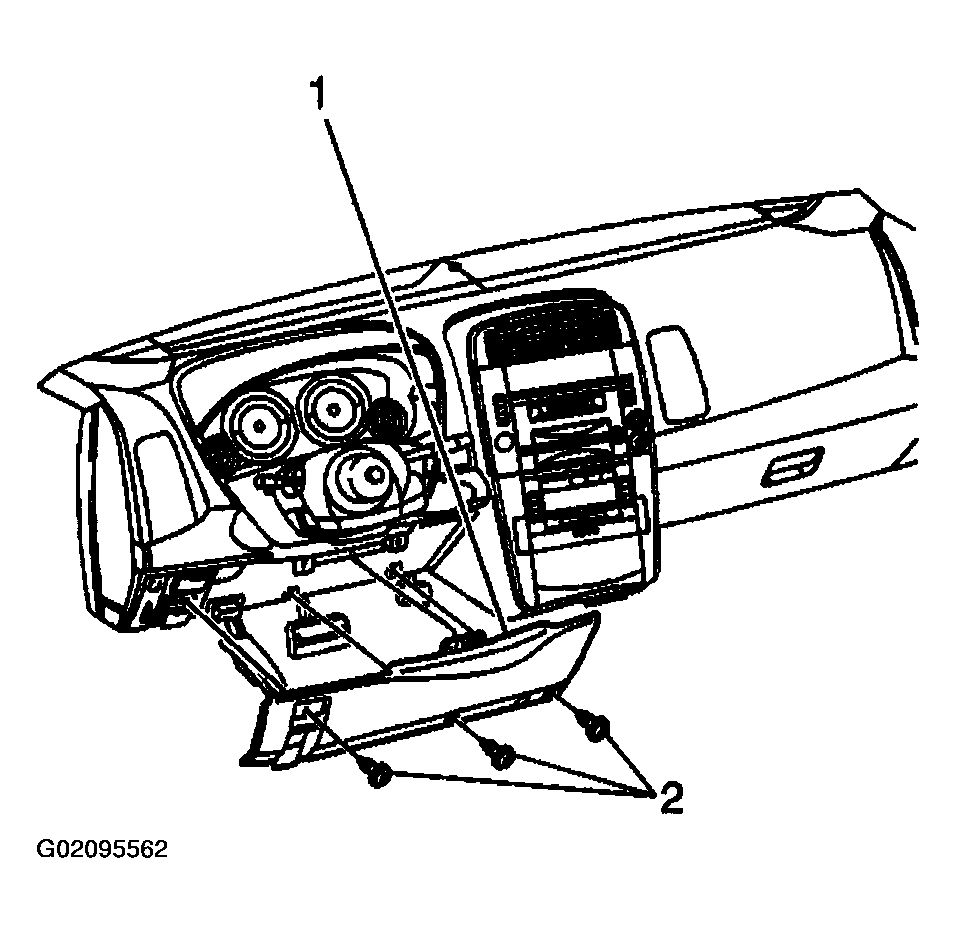

    Fig 1: Installing Knee Bolster Trim And Retaining Screws
    G02095562Courtesy of GENERAL MOTORS CORP.
  3. Install the hood release lever.

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

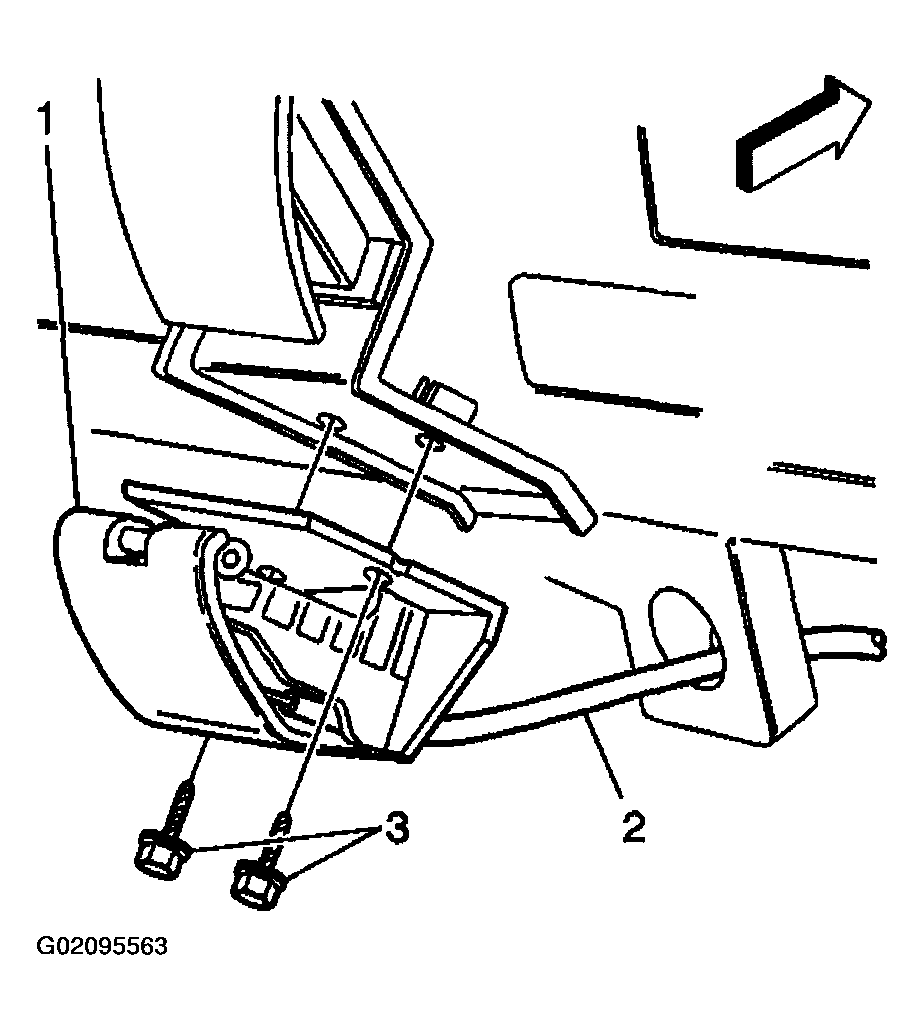

    Fig 2: Installing Hood Release Lever
    G02095563Courtesy of GENERAL MOTORS CORP.
  4. Install the parking brake release lever to the cable (1).
  5. Install the lever retainers screws.

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

  6. Install the left hand closeout panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT  .

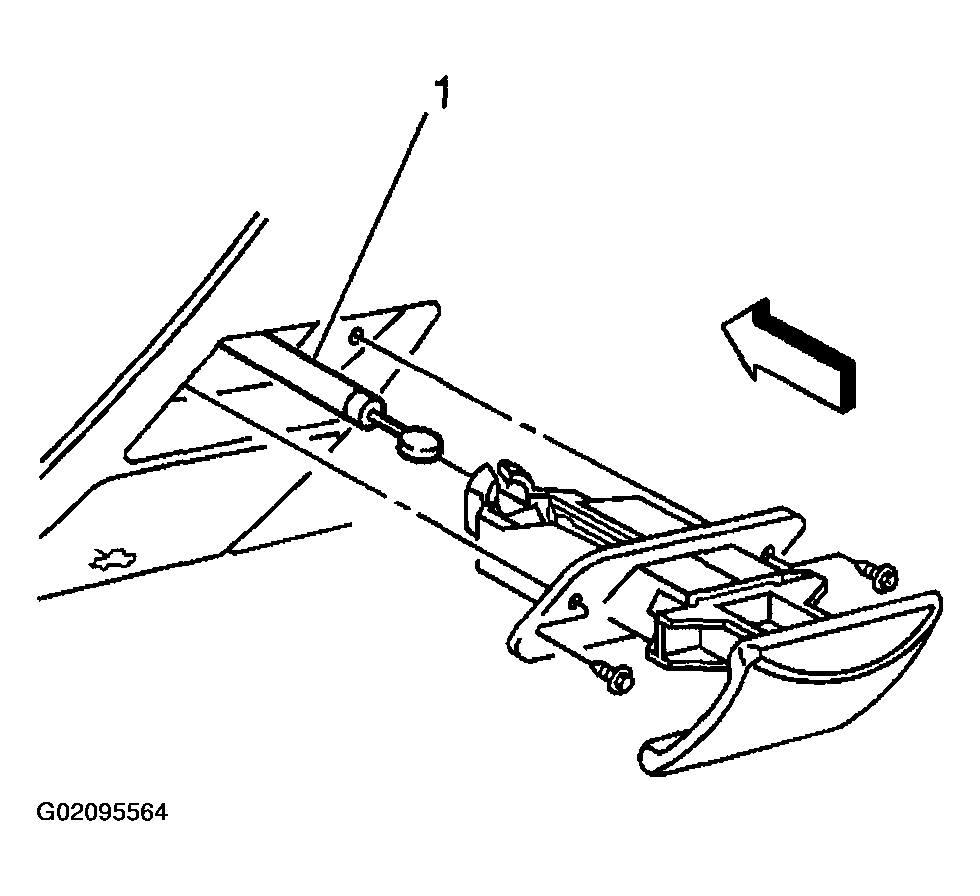

    Fig 3: Installing Parking Brake Release Lever To Cable
    G02095564Courtesy of GENERAL MOTORS CORP.
