Installation Procedure

  1. Install the rear compartment lid enable switch to the instrument panel (IP) storage compartment bezel.

    Push the switch inward in order to fasten the compartment.

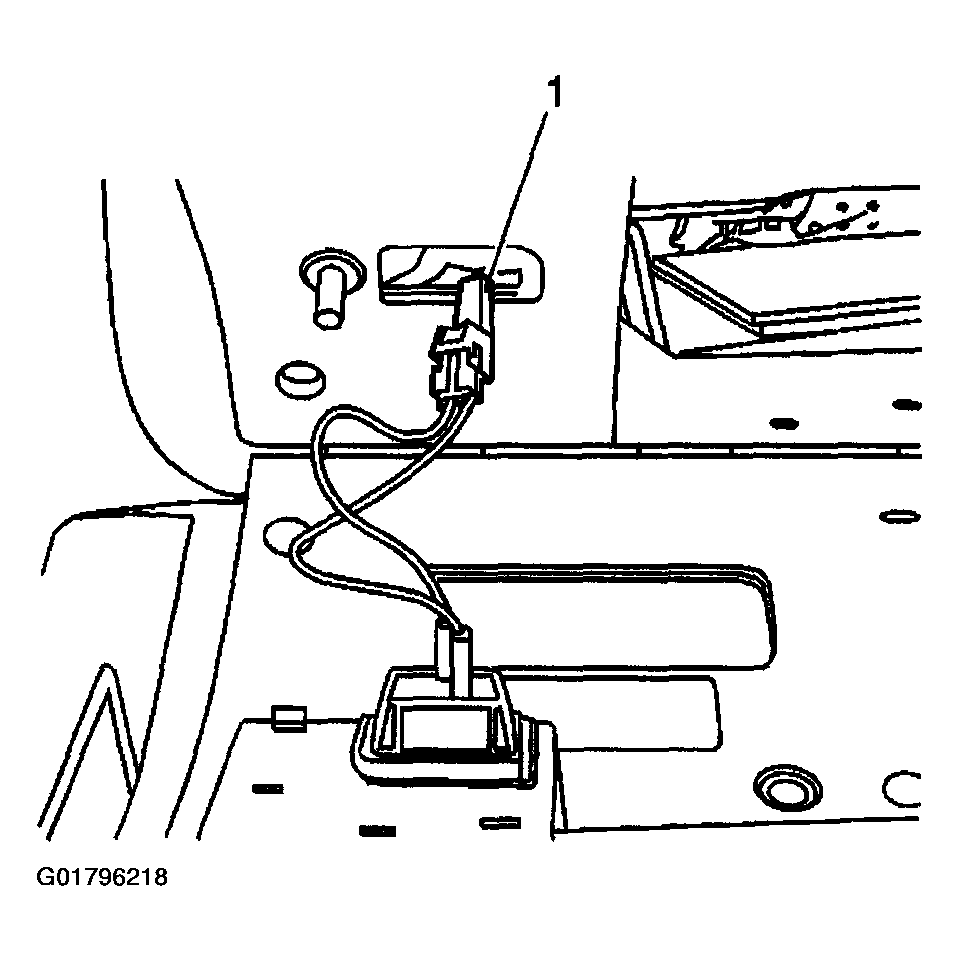

  2. Connect the rear compartment lid enable switch electrical connector (1).
  3. Align the IP storage compartment bezel with the IP storage compartment.
  4. Push the bezel inward in order to fasten the compartment.
  5. Close the instrument panel storage compartment door.
    Fig 1: Installing IP Storage Compartment Bezel Retainers Use A Flat-Bladed Tool
    G01796218Courtesy of GENERAL MOTORS CORP.
