Removal Procedure

CAUTION: Refer to SIR HANDLING CAUTION .
  1. Disable SIR. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the floor console. Refer to Console Replacement (w/o UV8)  or Console Replacement (with UV8)
  3. Remove the drivers knee bolster. Refer to Knee Bolster Replacement
  4. Remove the IP outer trim cover. Refer to Instrument Panel (I/P) Outer Trim Cover Replacement
  5. Remove the IP upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper
  6. Remove the defroster grille. Refer to Defroster Grille Replacement
  7. Disconnect the body to IP electrical connectors (1) at the top, outside corners of IP.

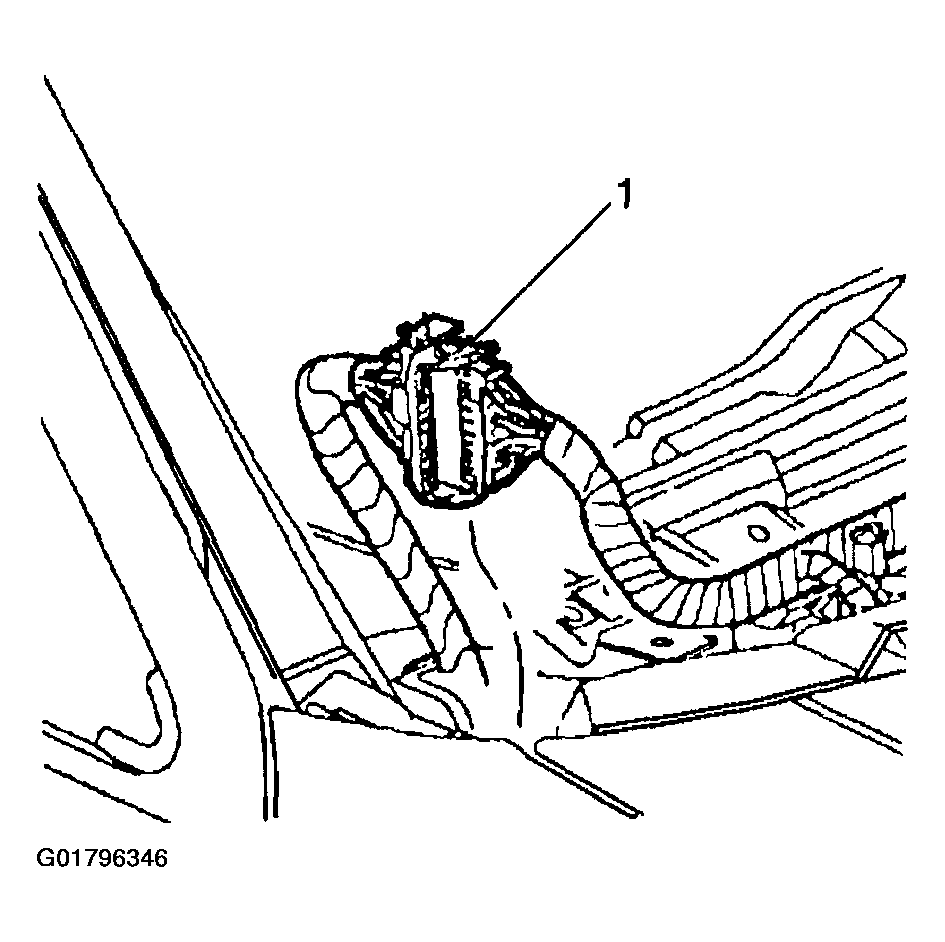

    Fig 1: Removing Body To IP Electrical Connectors
    G01796346Courtesy of GENERAL MOTORS CORP.
  8. For RHD only, remove the park brake cable from the park brake pedal assembly. Refer to PARK BRAKE CABLE (FRONT) .

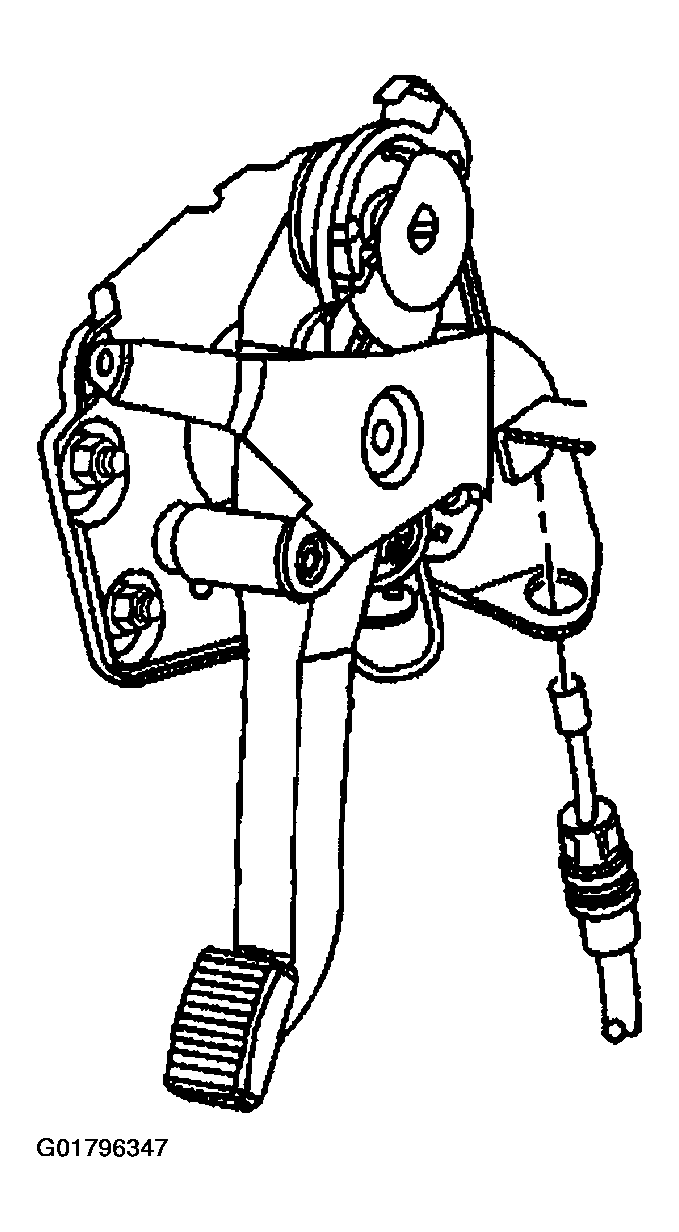

    Fig 2: Removing Park Brake Cable & Park Brake Pedal Assembly
    G01796347Courtesy of GENERAL MOTORS CORP.
  9. With the steering wheel centered, install the J 42640  in order to lock the steering column.

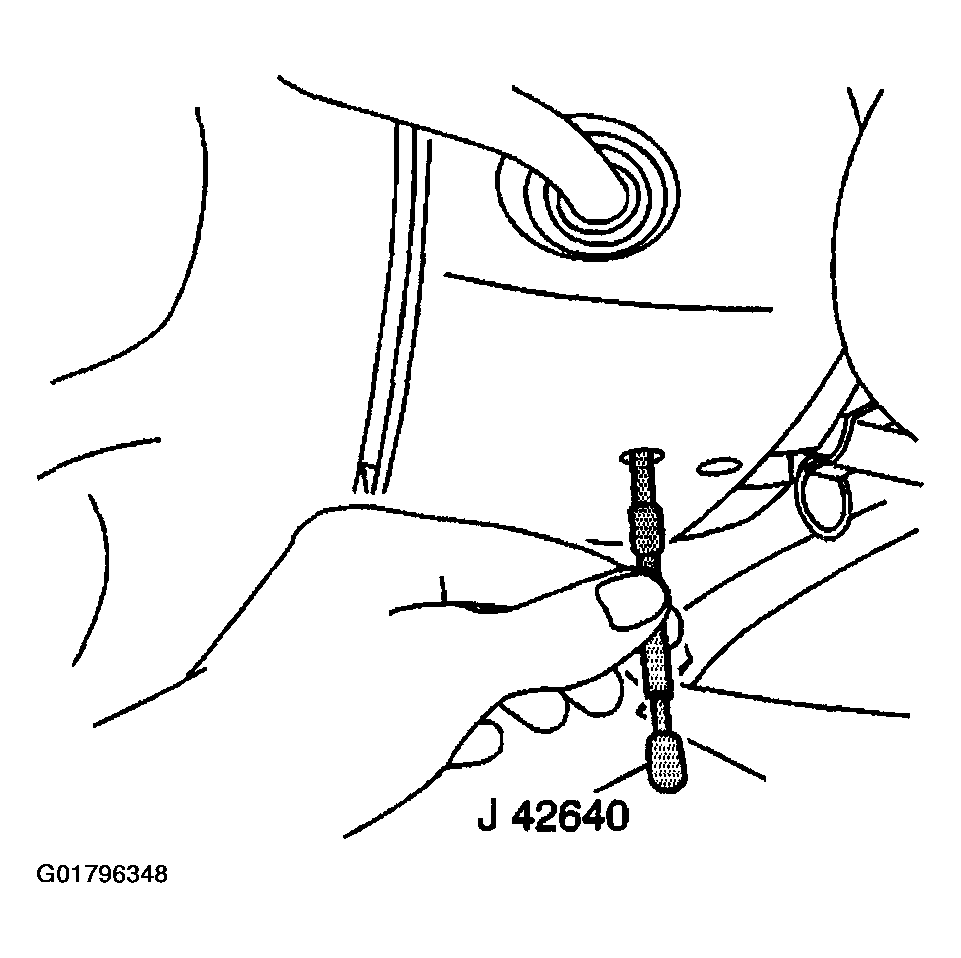

    Fig 3: Installing J 42640 To Steering Column
    G01796348Courtesy of GENERAL MOTORS CORP.
  10. Remove the steering column to body bolts (1). Refer to STEERING WHEEL REPLACEMENT .
  11. Disconnect the steering shaft from the steering gear. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT .

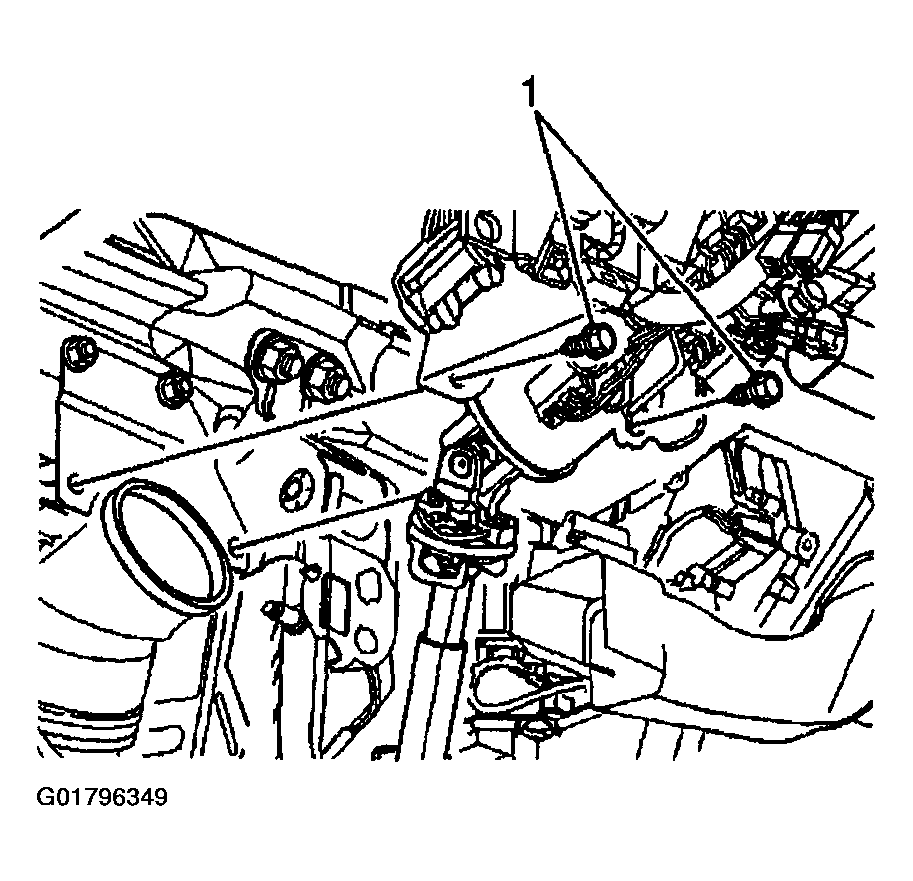

    Fig 4: Removing Steering Column & Body Bolts
    G01796349Courtesy of GENERAL MOTORS CORP.
  12. Disconnect the steering column harness connector (1).

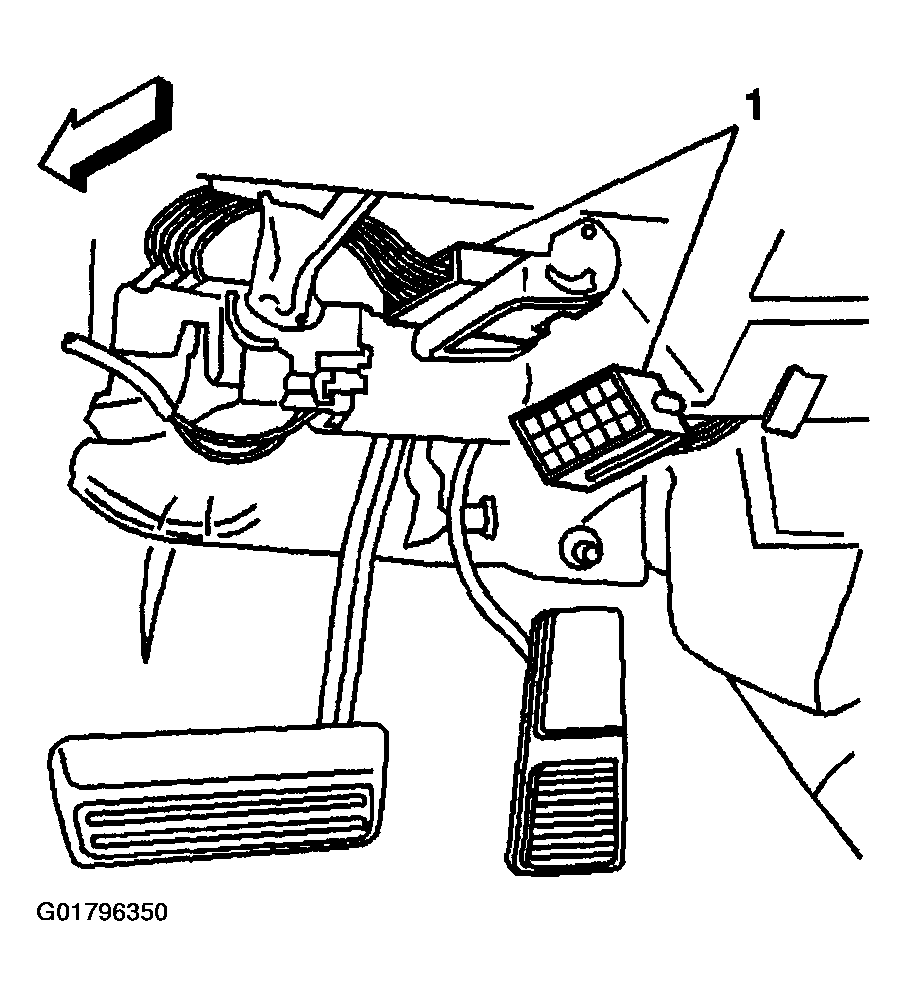

    Fig 5: Disconnecting Steering Column Harness Connector
    G01796350Courtesy of GENERAL MOTORS CORP.
  13. Disconnect the electrical connector (1) for the tilt and telescoping module, to the main body harness, if equipped.

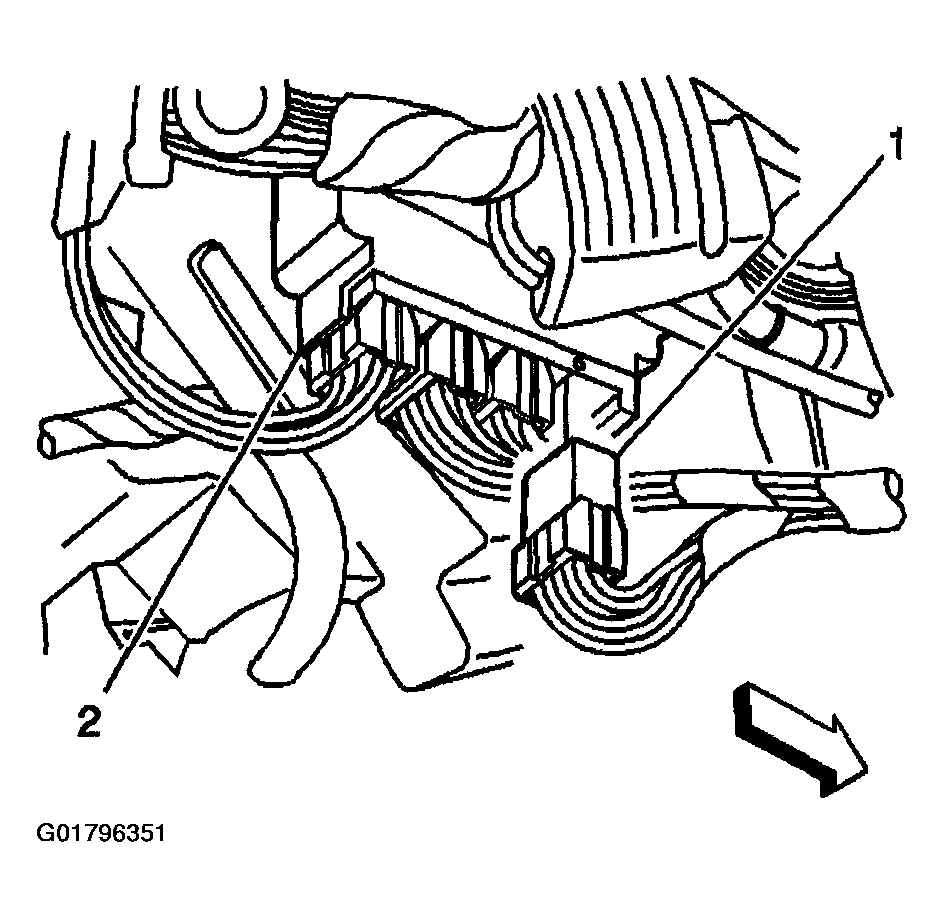

    Fig 6: Disconnecting Electrical Connector
    G01796351Courtesy of GENERAL MOTORS CORP.

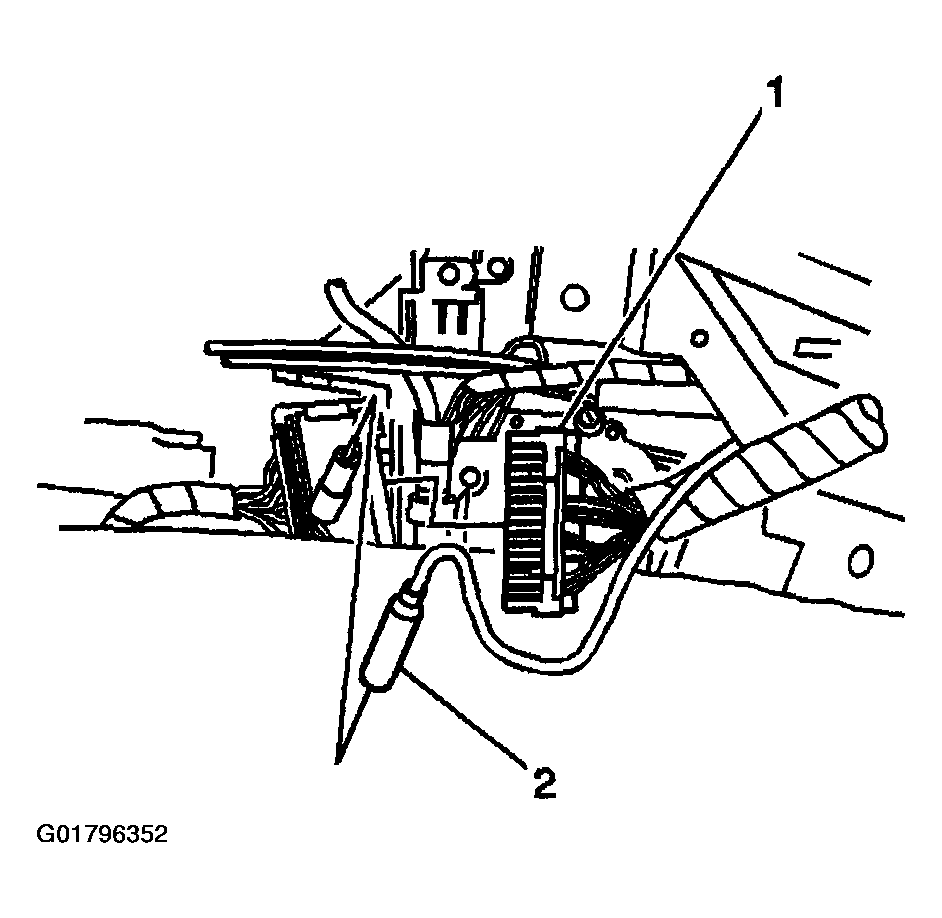

  14. Disconnect the body harness connection (1) and the audio antenna connection (2), which are located next to the IP extension.
    Fig 7: Disconnecting body harness connection
    G01796352Courtesy of GENERAL MOTORS CORP.
  15. Remove the IP extension bolts (1).

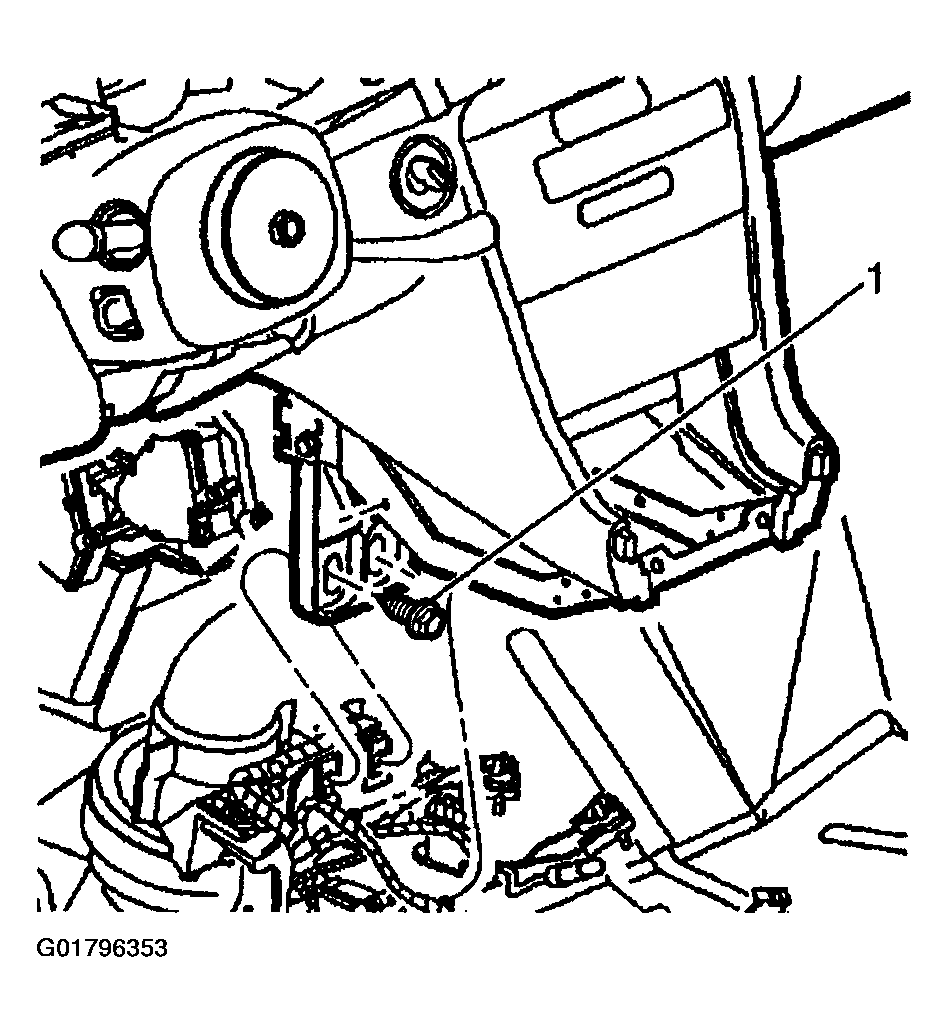

    Fig 8: Removing IP Extension & Bolts
    G01796353Courtesy of GENERAL MOTORS CORP.
  16. Remove IP carrier to cowl nuts (1).

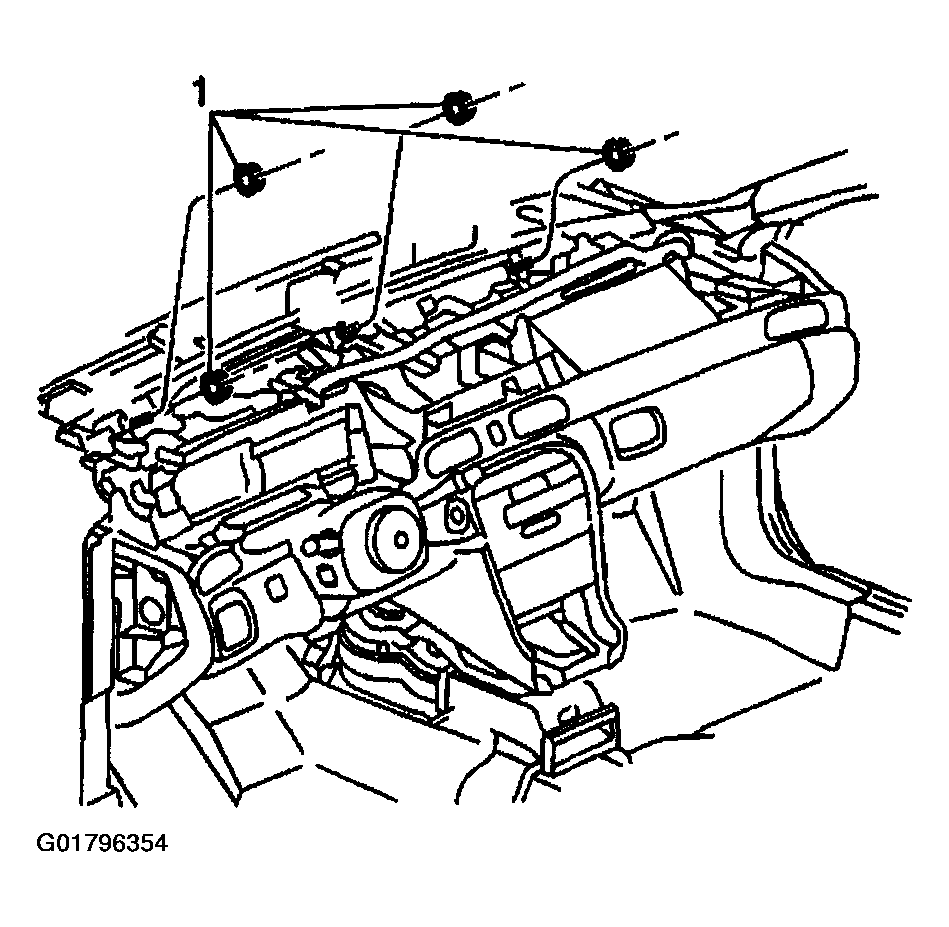

    Fig 9: Removing IP Carrier & Cowl Nuts
    G01796354Courtesy of GENERAL MOTORS CORP.
  17. Remove the bolts (2) from the left and right IP carrier to hinge pillar.
  18. Remove the IP assembly (3) from the vehicle.

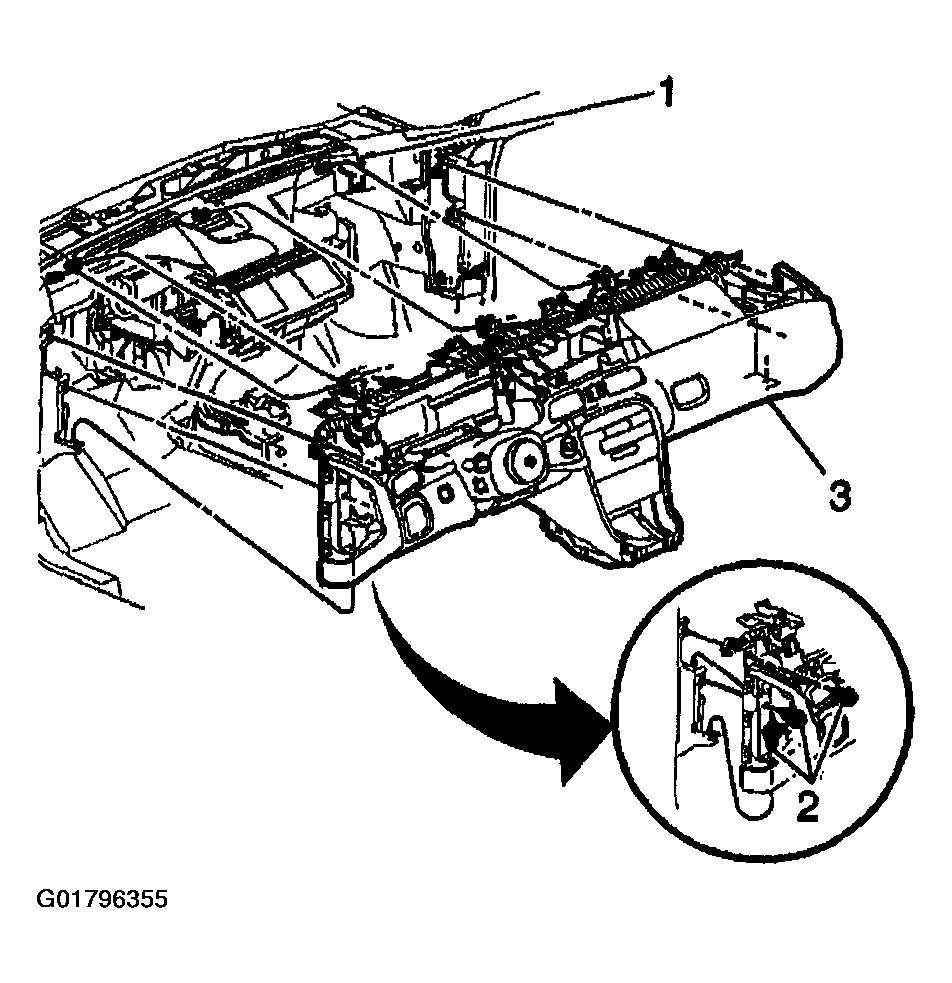

    Fig 10: Removing IP Assembly & Bolts
    G01796355Courtesy of GENERAL MOTORS CORP.
