Removal Procedure

  1. Remove the console trim plate. Refer to Trim Plate Replacement - Console
  2. Remove the cigar lighter (2) from the housing (1).
  3. Unscrew the cigar lighter retainer from the housing (1).
  4. Push the housing out of the opening.

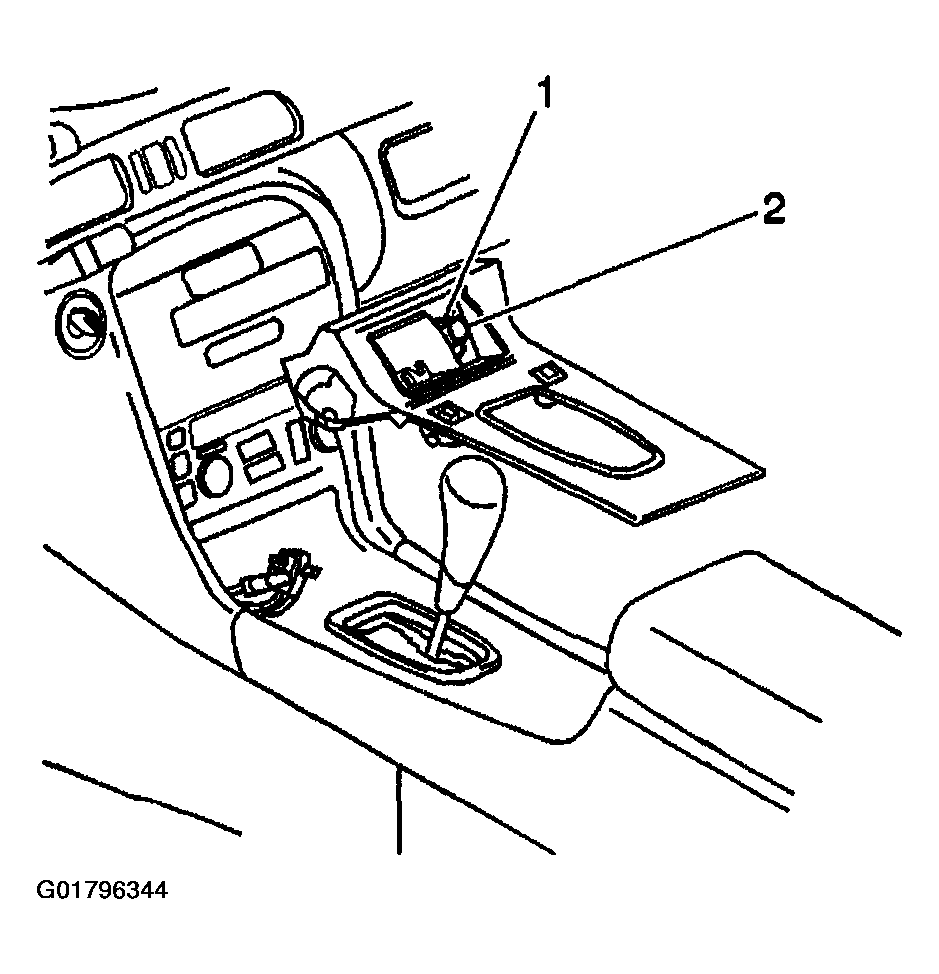

    Fig 1: Removing Cigar Lighter & Housing
    G01796344Courtesy of GENERAL MOTORS CORP.
