Removal Procedure

CAUTION: Refer to SIR HANDLING CAUTION .

Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove the IP upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper
Remove the IP cluster trim panel. Trim Panel Replacement - Instrument Panel (I/P) Cluster

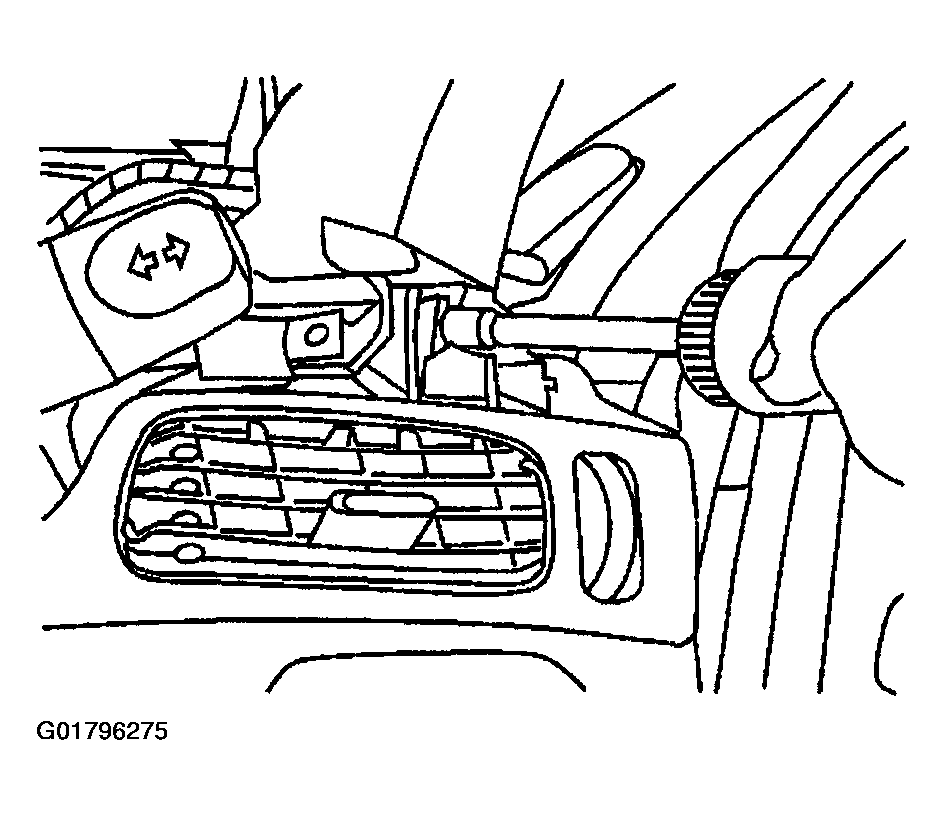

Fig 1: Removing Trim Plate Replacement - Instrument Panel (I/P) Accessory Right (RHD)
Courtesy of GENERAL MOTORS CORP.
Remove the screw near the IP cluster at the IP retainer.
Pull rearward on the trim panel in order to disengage the three retainers, and remove the trim plate.
