Removal Procedure

CAUTION: Refer to SIR HANDLING CAUTION .
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the IP upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper
  3. Remove the IP cluster trim panel. Trim Panel Replacement - Instrument Panel (I/P) Cluster
  4. Remove the screw near the IP cluster at the IP retainer.
  5. Lift the outboard end of the trim plate in order to disengage the locating tab, then pull the trim plate rearward.

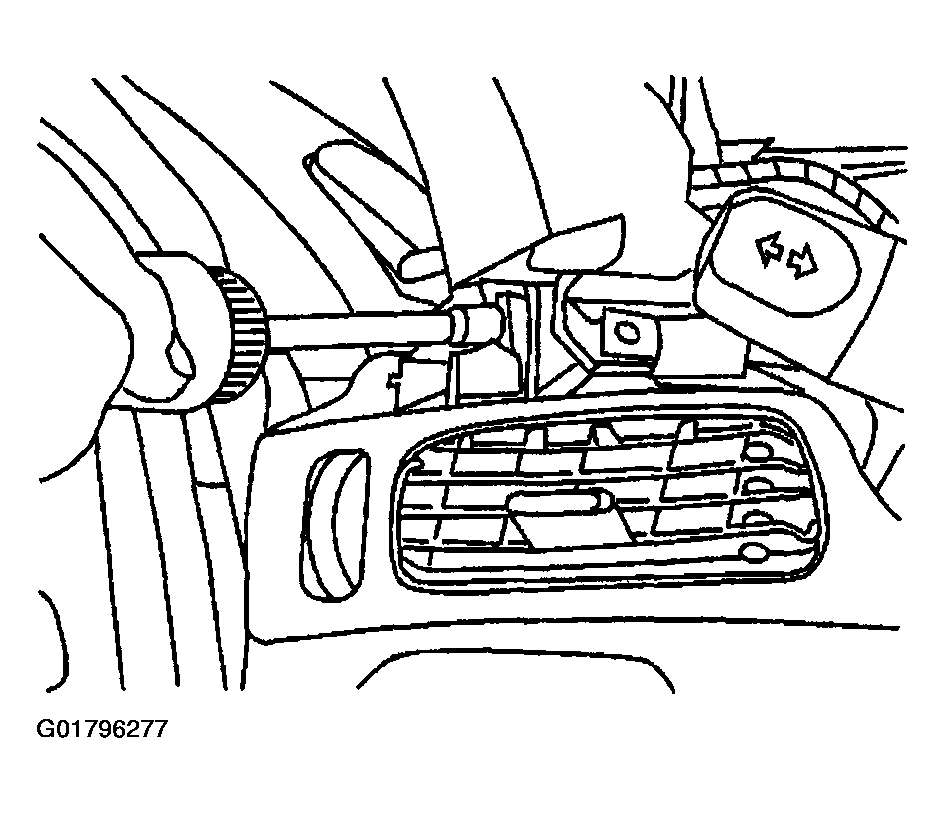

    Fig 1: Removing Trim Plate Replacement - Instrument Panel (I/P) Accessory Left (LHD)
    G01796277Courtesy of GENERAL MOTORS CORP.
