Installation Procedure

  1. Align the knee bolster trim panel (1) retainers with the lower IP.
  2. Push the panel upward firmly in order to snap the bolster into the retainer bracket.
  3. Install the knee bolster fasteners (2).
  4. Install the driver's side sound insulator. Refer to Closeout/Insulator Panel Replacement - Left (LHD)  or Closeout/Insulator Panel Replacement - Left (RHD)  or Closeout/Insulator Panel Replacement - Right (LHD)  or Closeout/Insulator Panel Replacement - Right (RHD)

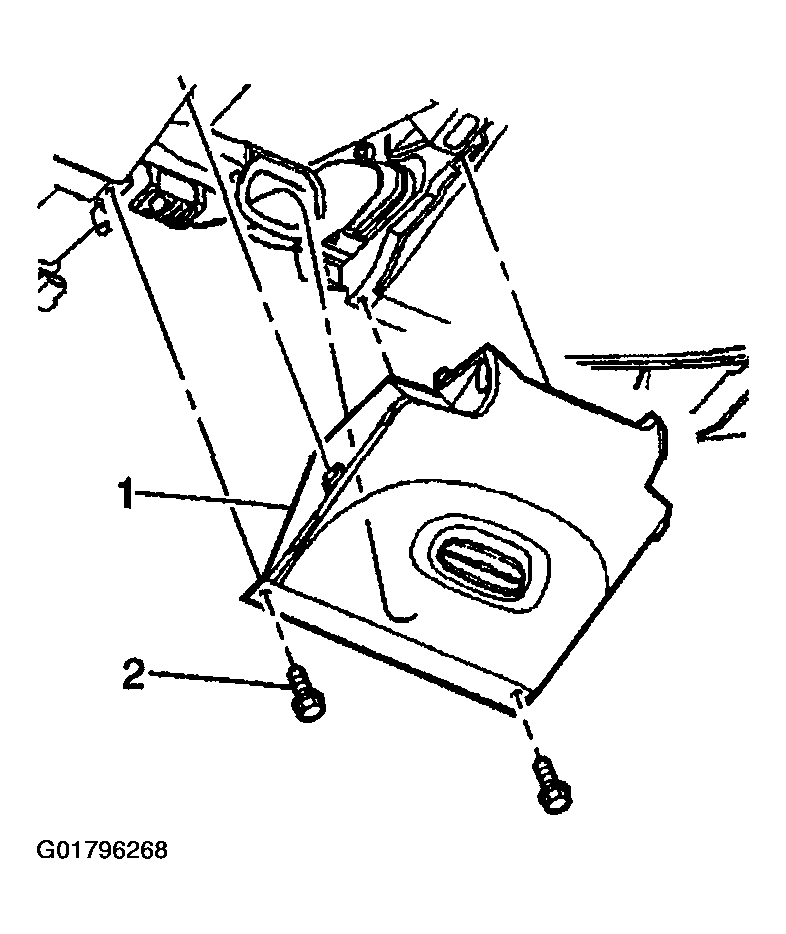

    Fig 1: Installing Knee Bolster Fasteners & Trim Panel
    G01796268Courtesy of GENERAL MOTORS CORP.
