Removal Procedure

CAUTION: Refer to SIR HANDLING CAUTION .
  1. Remove the Instrument Panel (IP) upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper
  2. Remove the screw holding the cluster trim panel and the passenger trim panel together.

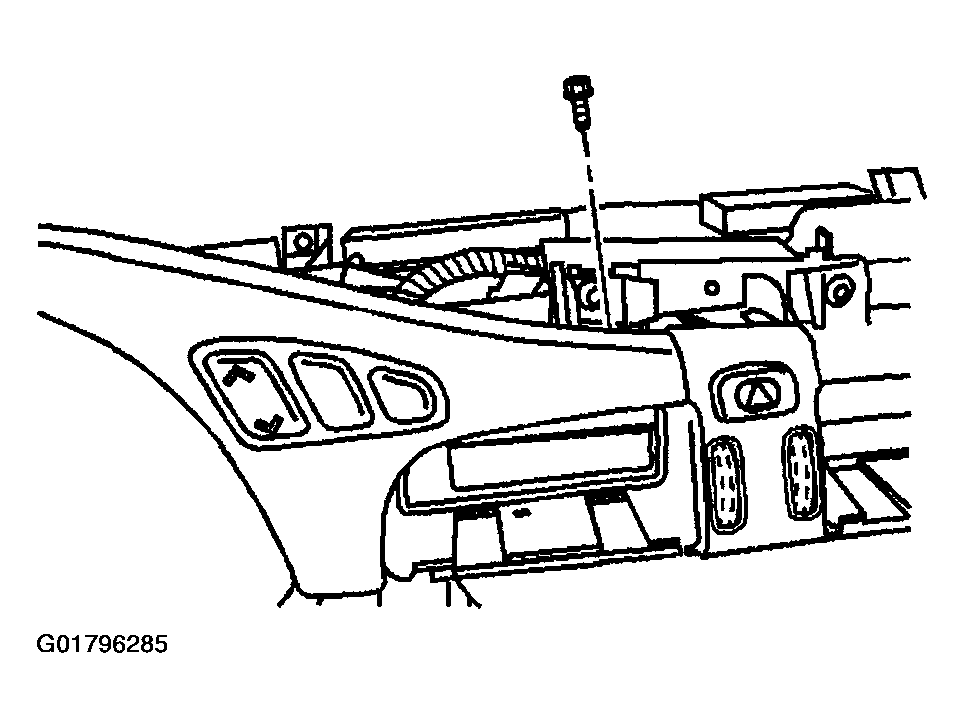

    Fig 1: Removing Screw & Cluster Trim Panel
    G01796285Courtesy of GENERAL MOTORS CORP.
  3. Remove the two screw on each side of the IP cluster.
  4. Disconnect the left (1) and the right (2) Driver Information Center (DIC) switch electrical connectors.
  5. Lift the IP cluster trim (3) out of the IP retainer.
  6. If the IP cluster trim panel is to be replaced, remove the left and the right driver's information center switches from the trim panel. Refer to Driver Information Center Switch Replacement

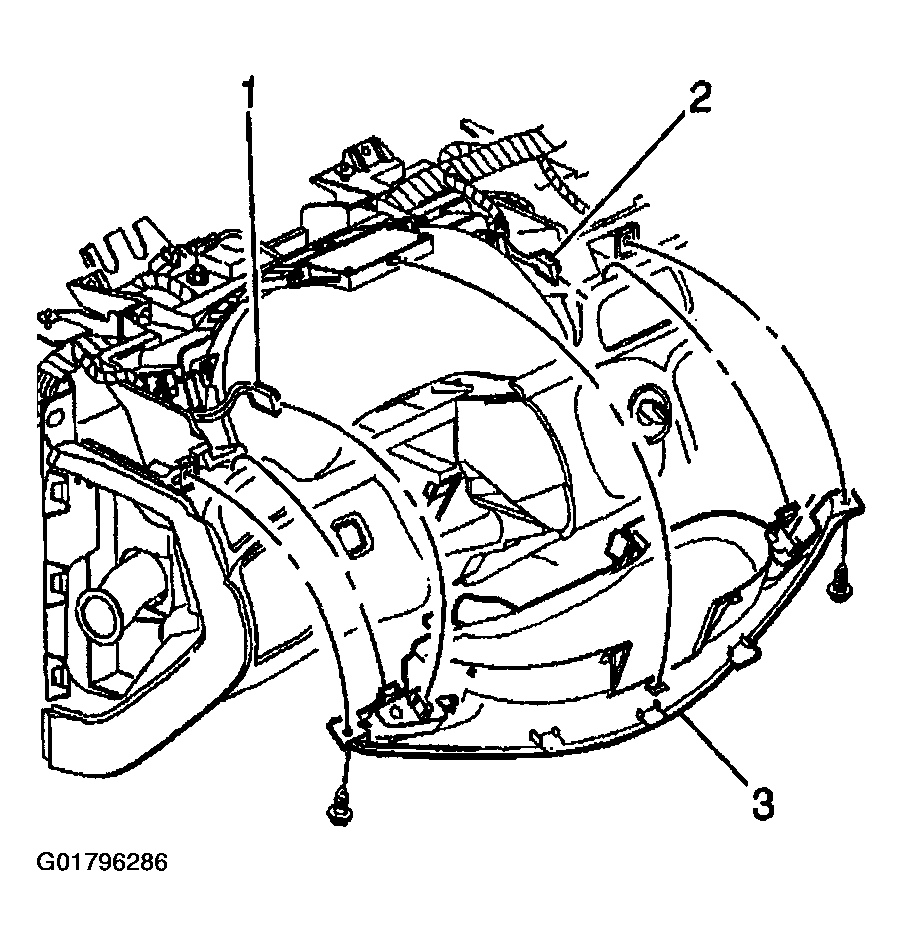

    Fig 2: Disconnecting left/right DIC Switch Electrical Connectors
    G01796286Courtesy of GENERAL MOTORS CORP.
