Installation Procedure

  1. Install the DIC switches to the IP cluster trim panel. Refer to Driver Information Center Switch Replacement
  2. Engage the lower edge of the IP cluster trim plate (3) to the IP.
  3. Connect the two electrical connectors (1,2) to the DIC switches.
    NOTE: Refer to FASTENER NOTICE
  4. Install the two screws from the trim panel to the IP retainer.

    Tighten

    Tighten the IP cluster trim panel screws to 2 N.m (18 lb in).

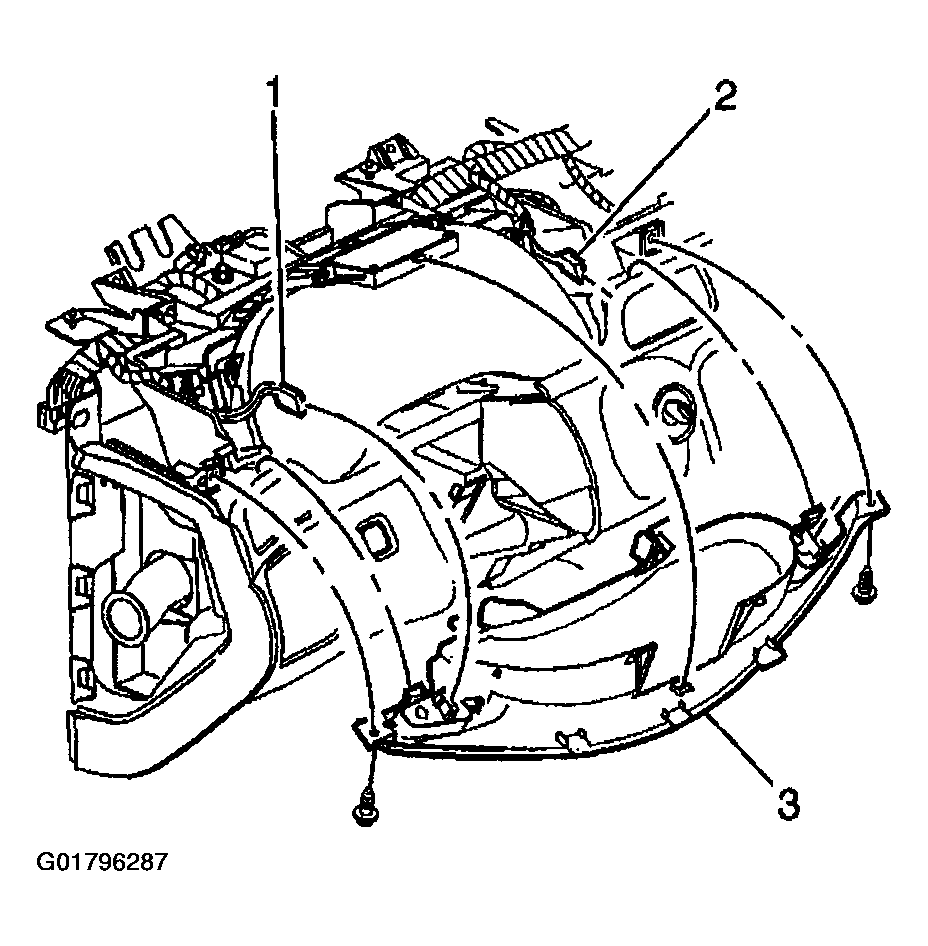

    Fig 1: Connecting left/right DIC Switch Electrical Connectors
    G01796287Courtesy of GENERAL MOTORS CORP.
  5. Install the screw securing the IP cluster bezel to the passenger trim panel.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  6. Install the Upper Trim Pad Trim Pad Replacement - Instrument Panel (I/P) Upper

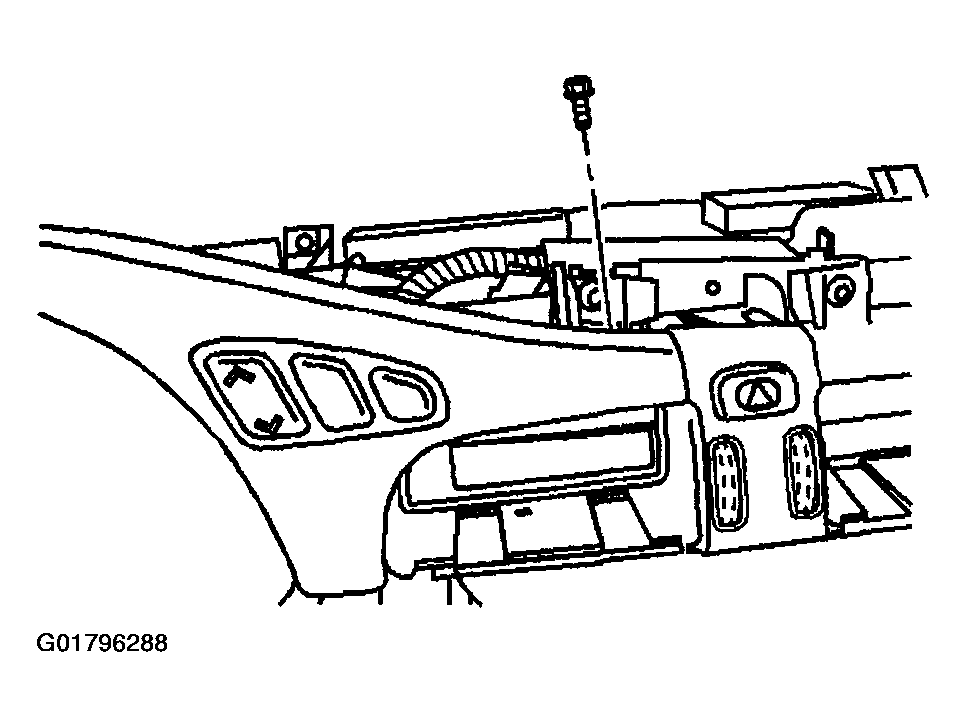

    Fig 2: Installing Screw & Cluster Trim Panel
    G01796288Courtesy of GENERAL MOTORS CORP.
