Removal Procedure

  1. Using a small hooked tool, reach behind the trim panel (1) and pull outward on each side of the trim panel.
  2. Pull toward the rear of the vehicle in order to remove the trim panel.

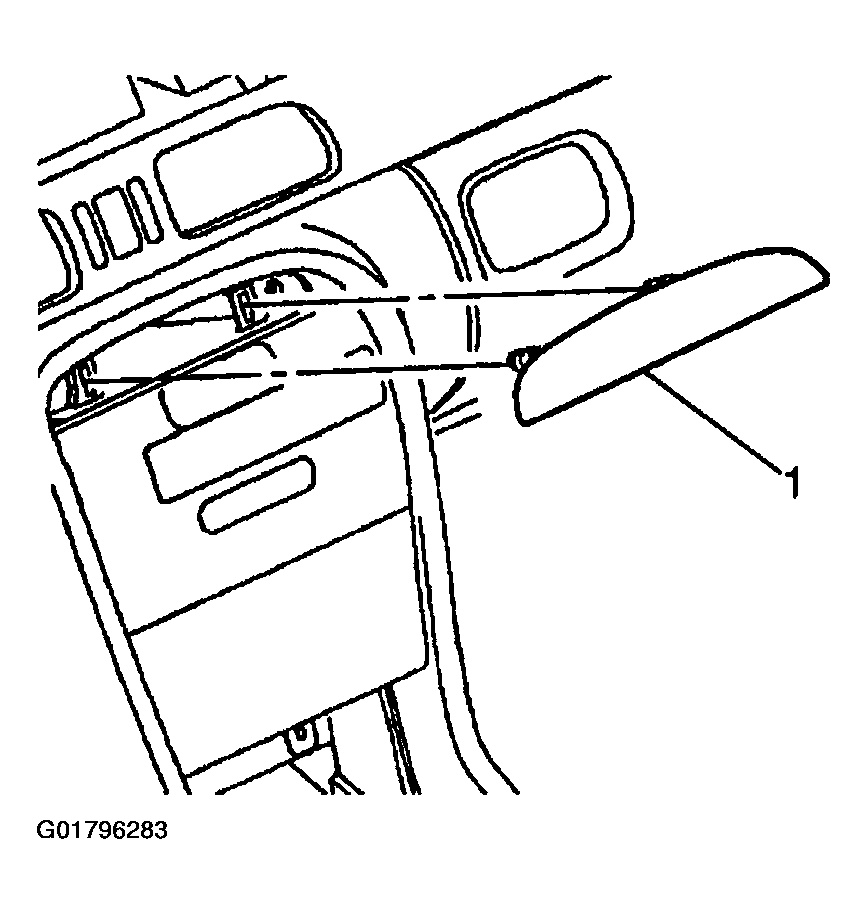

    Fig 1: Removing Trim Panel
    G01796283Courtesy of GENERAL MOTORS CORP.
