Removal Procedure

CAUTION: Refer to SIR HANDLING CAUTION .
  1. Disable the SIR. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the defroster grill. Refer to Defroster Grille Replacement
  3. Disconnect the electrical connector from the twilight sensor or the solar sensor.
  4. Remove the sensors from the defroster grill by twisting each sensor 1/4 turn and pulling the sensors out of the defroster grille.

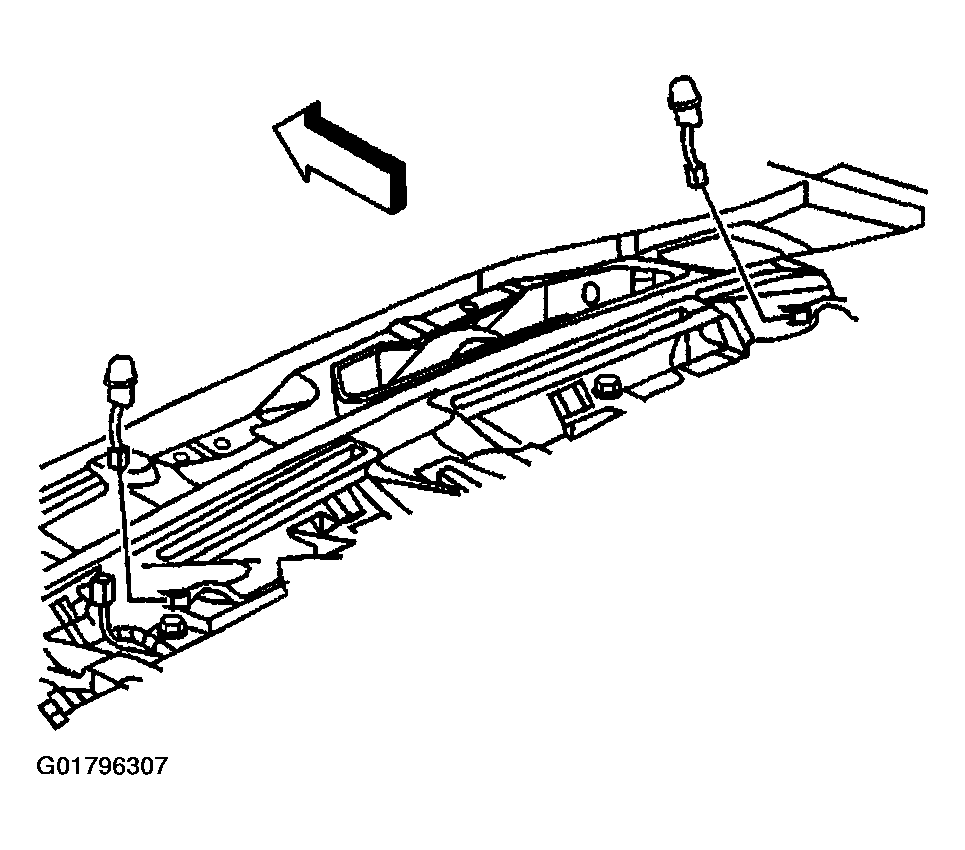

    Fig 1: Disconnecting Electrical Connector & Twilight Sensor
    G01796307Courtesy of GENERAL MOTORS CORP.
