Removal Procedure

  1. Open the instrument panel (IP) storage compartment door.
  2. Use a flat-bladed tool in order to disengage the IP storage compartment bezel retainers.
  3. Partially remove the bezel.
    Fig 1: Disengaging IP Storage Compartment Bezel Retainers Use A Flat-Bladed Tool
    G01796216Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector (1).
  5. Remove the bezel.
  6. Disengage the retainers that fasten the rear compartment lid enable switch.

    Remove the rear compartment lid enable switch.

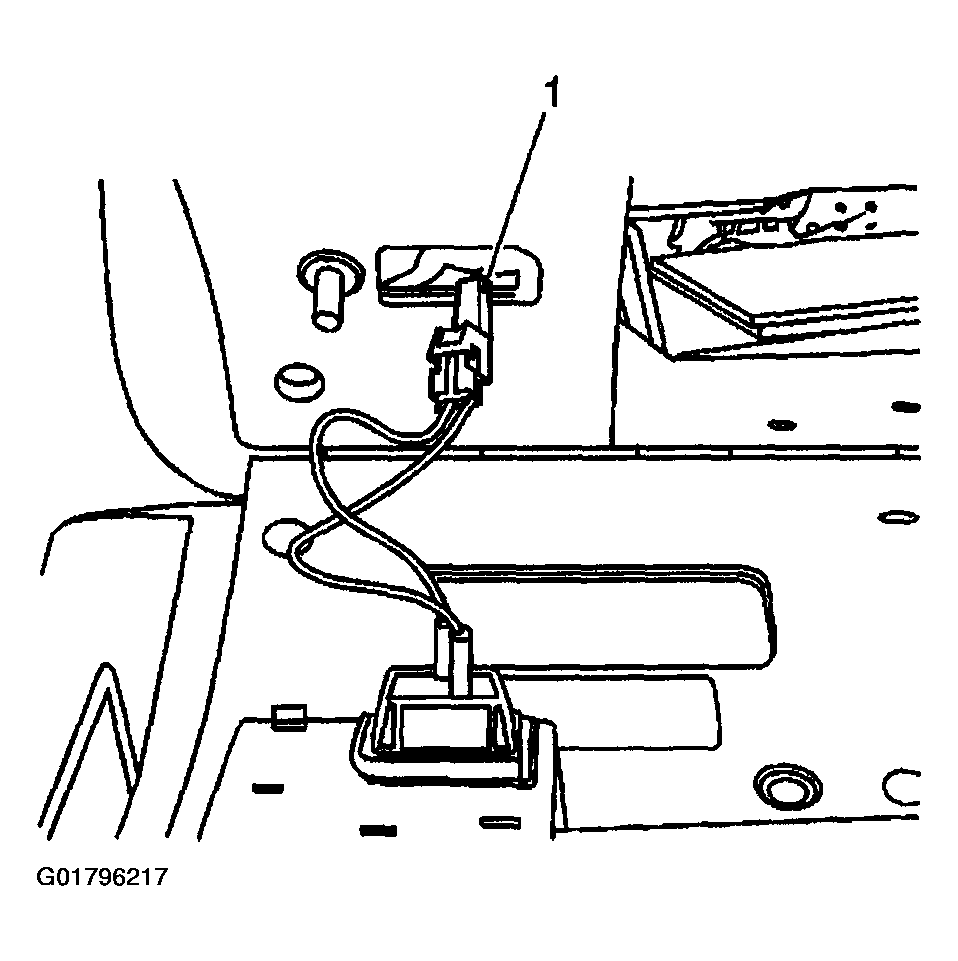

    Fig 2: Disconnecting Electrical Connector
    G01796217Courtesy of GENERAL MOTORS CORP.
