Removal Procedure

Open the console compartment lid in order to access the console storage compartment.

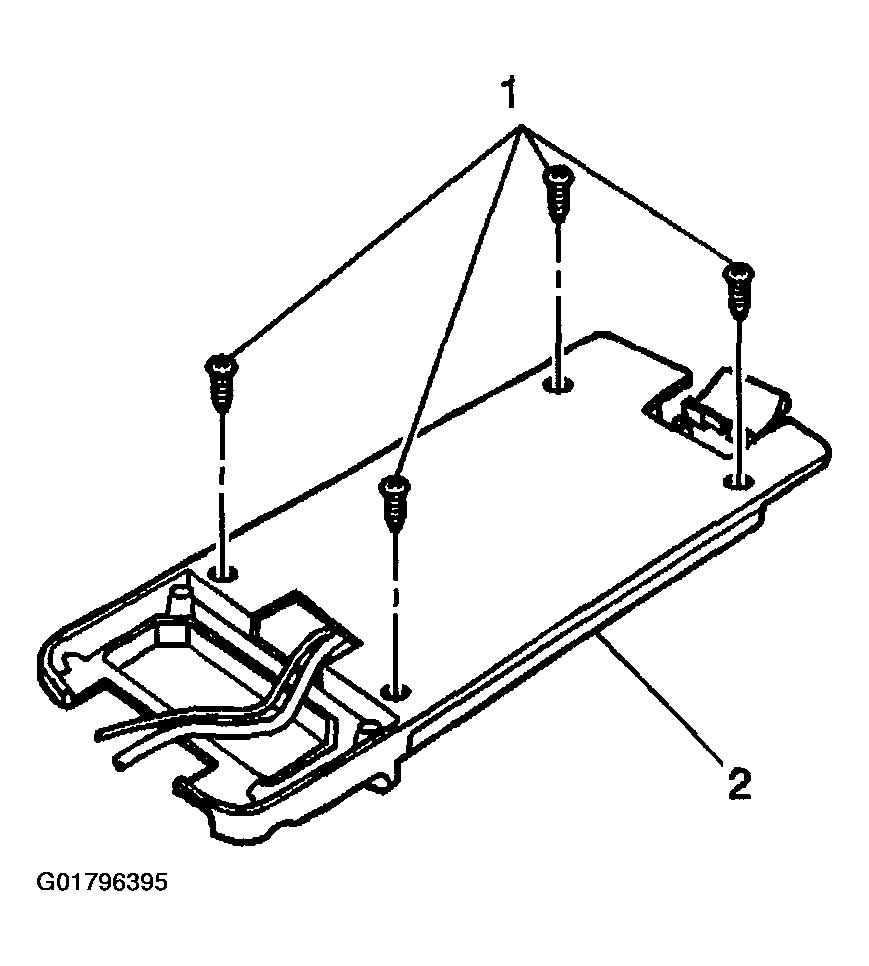

Remove the 4 screws (1) that retain the mobile telephone storage tray to the console tray (2).

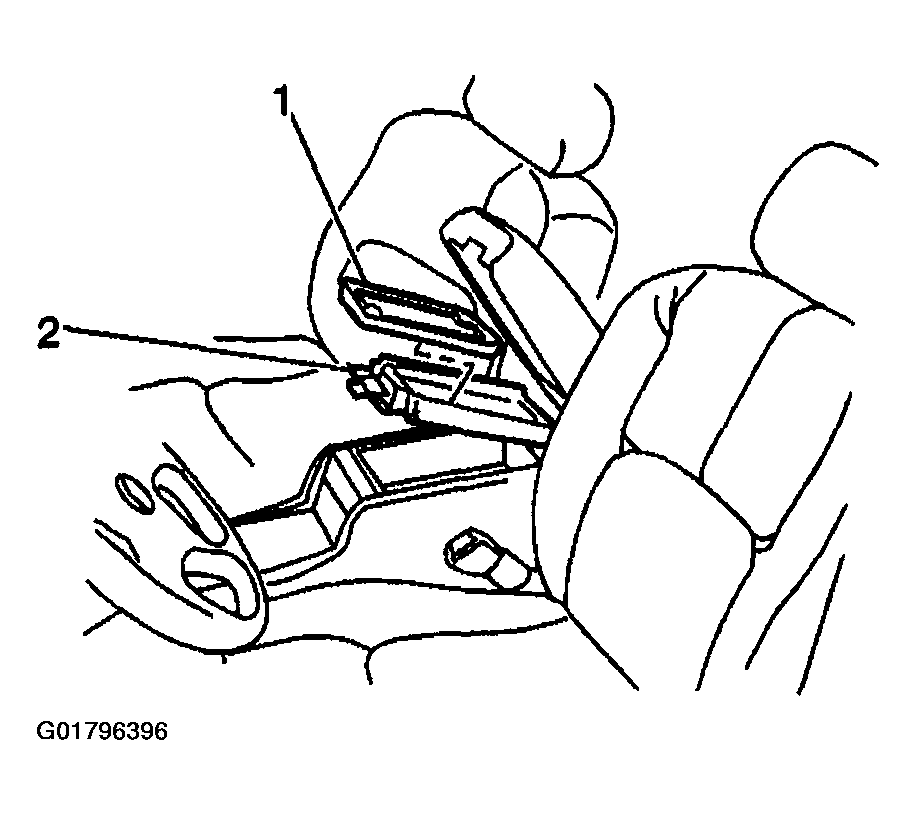

Fig 1: Removing Screws & Armrest Inner Trim Panel Console Compartment Door (Lower)
Courtesy of GENERAL MOTORS CORP.
If equipped with UV8, remove the mobile telephone storage tray (1) from the console tray (2) in order to expose the console lid latch screws.
Remove the 2 screws that hold the console lid latch to the console tray.
Remove the console latch from the console tray.

Fig 2: Removing Mobile Telephone Storage Tray & Console Tray
Courtesy of GENERAL MOTORS CORP.
