Removal Procedure

CAUTION: Refer to SIR HANDLING CAUTION .
  1. Remove the driver's side sound insulator. Refer to Closeout/Insulator Panel Replacement - Left (LHD)  or Closeout/Insulator Panel Replacement - Left (RHD)  or Closeout/Insulator Panel Replacement - Right (LHD)  or Closeout/Insulator Panel Replacement - Right (RHD)
  2. Remove the knee bolster trim panel. Refer to Trim Panel Replacement - Knee Bolster
  3. Remove the data link connector (DLC) from the knee bolster.
  4. Remove the 4 fasteners (2) that secure the knee bolster bracket to the lower IP.
  5. Remove the knee bolster bracket (3).

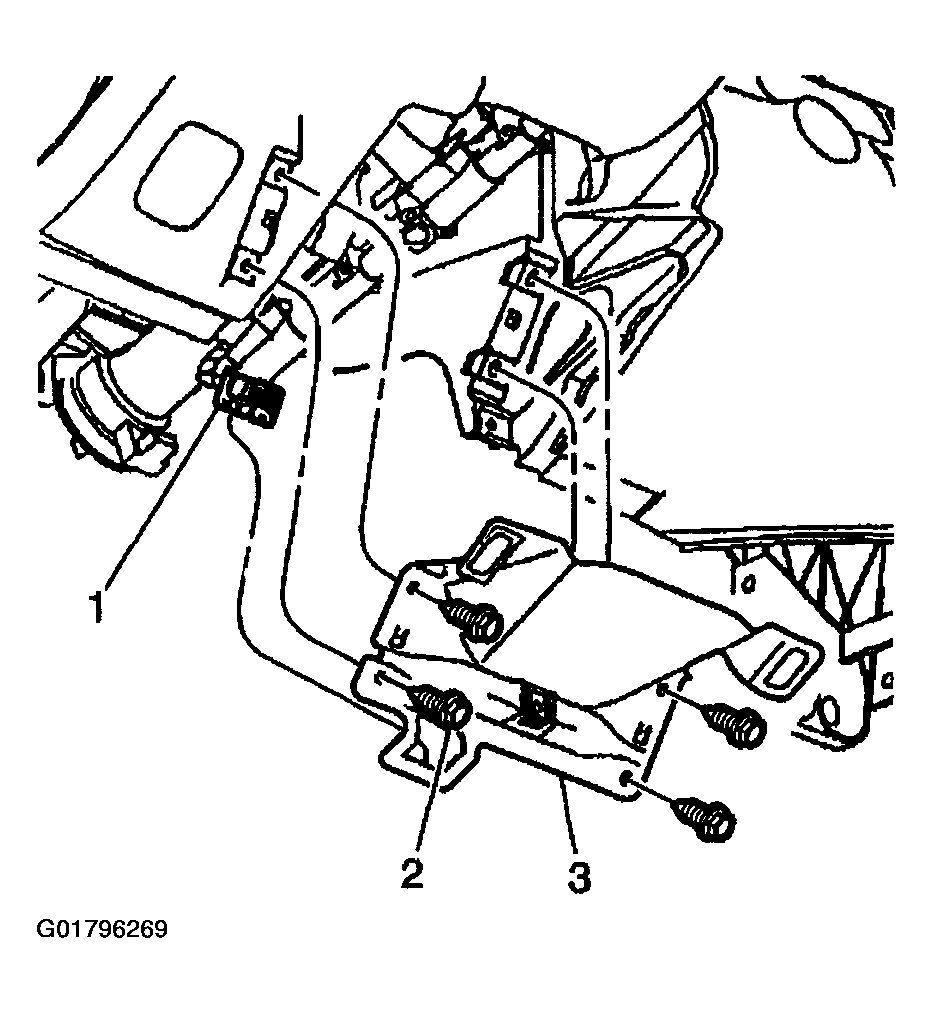

    Fig 1: Removing Fasteners & Knee Bolster Bracket
    G01796269Courtesy of GENERAL MOTORS CORP.
