Removal Procedure

CAUTION: Refer to SIR HANDLING CAUTION .
  1. Remove the IP upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper
  2. Remove the instrument cluster trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster
  3. Remove the four fasteners (3) from the IP cluster to the IP retainer.
  4. Partially remove the IP cluster.

    Disconnect the electrical connectors (1) on each side of the IP cluster.

  5. Remove the IP cluster (2) from the retainer.

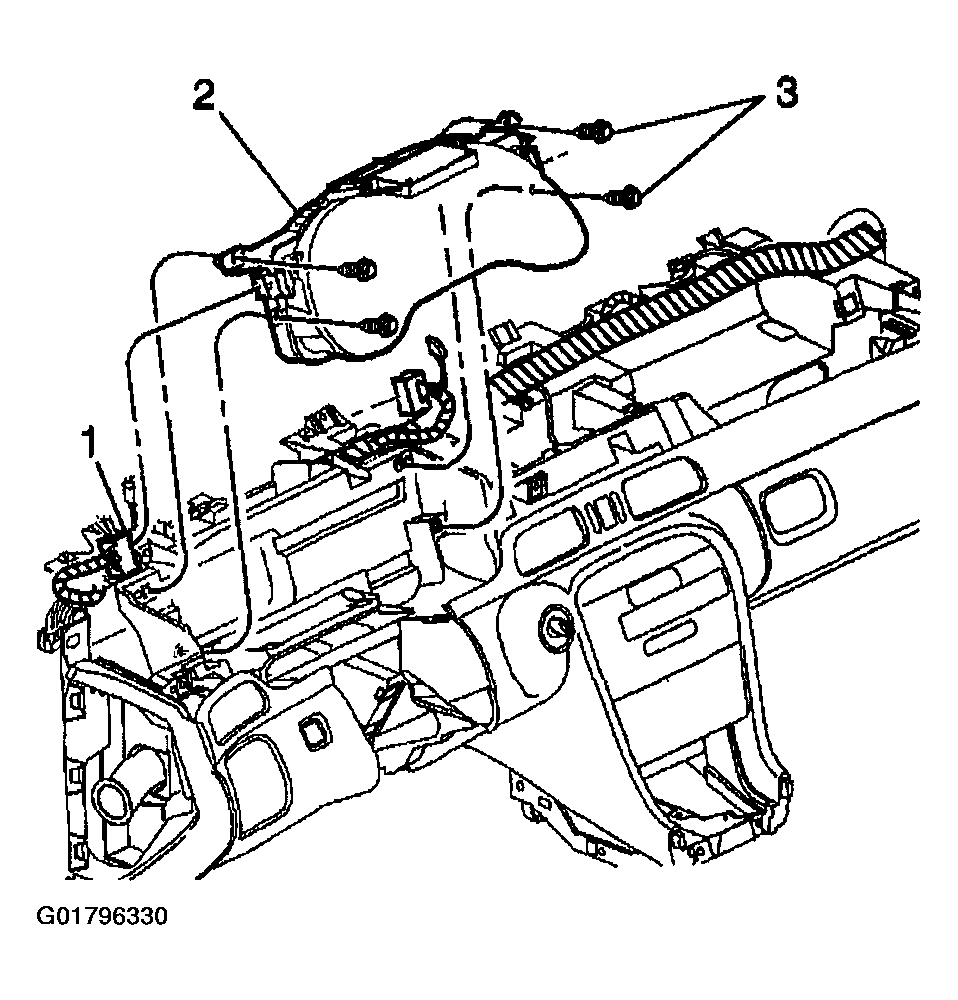

    Fig 1: Removing Fasteners, IP Cluster & Electrical Connectors
    G01796330Courtesy of GENERAL MOTORS CORP.
