Installation Procedure

  1. Set the IP cluster (2) partially into the retainer.
  2. Connect the electrical connectors (1).
  3. Align the IP cluster to the retainer.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the four fasteners (3).

    Tighten

    Tighten the cluster fasteners to 1.5 N.m (14 lb in).

  5. Install the IP cluster trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster
  6. Install the IP upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper

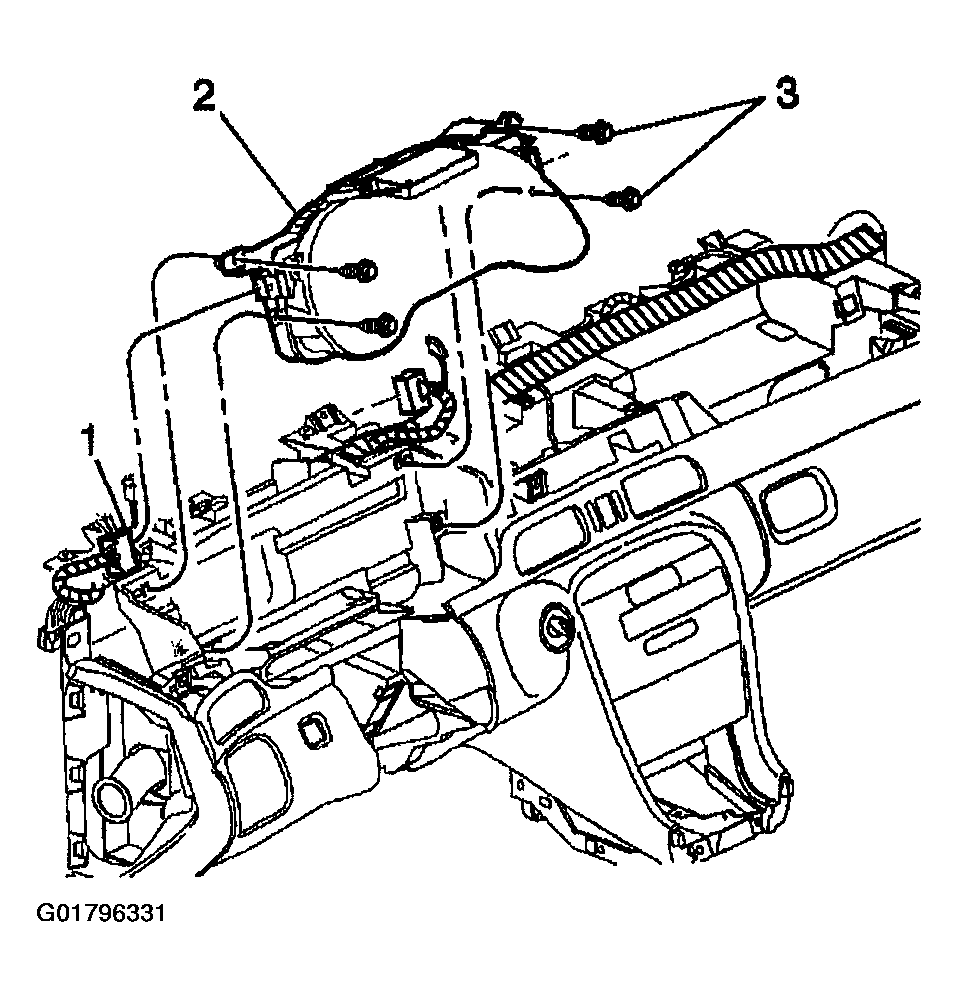

    Fig 1: Installing Fasteners, IP Cluster & Electrical Connectors
    G01796331Courtesy of GENERAL MOTORS CORP.
