Installation Procedure

  1. Align the IP cluster lens to the IP cluster.

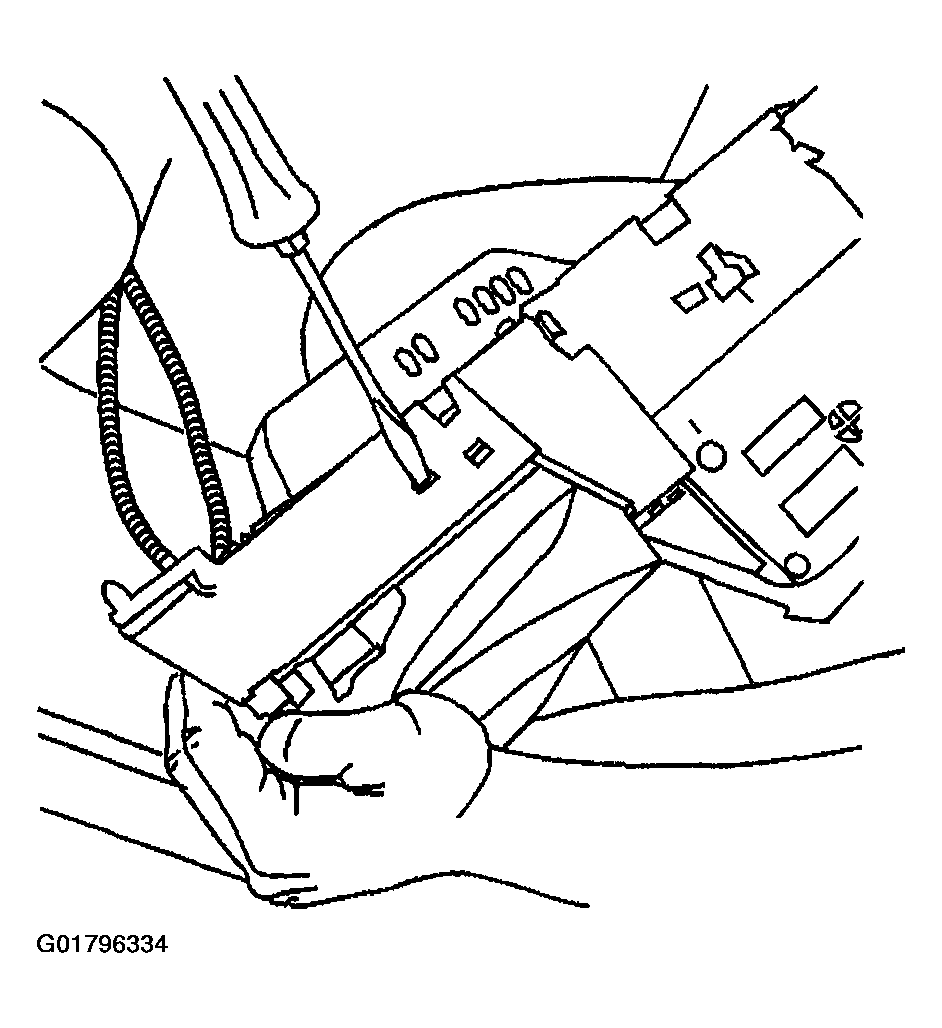

    Fig 1: Installing IP Cluster Lens
    G01796334Courtesy of GENERAL MOTORS CORP.
  2. Push the IP cluster lens toward the IP cluster in order to engage the snap retainers.
  3. Install the fasteners to the lens to the cluster housing.
  4. Install the IP cluster. Refer to Instrument Panel Cluster (IPC) Replacement

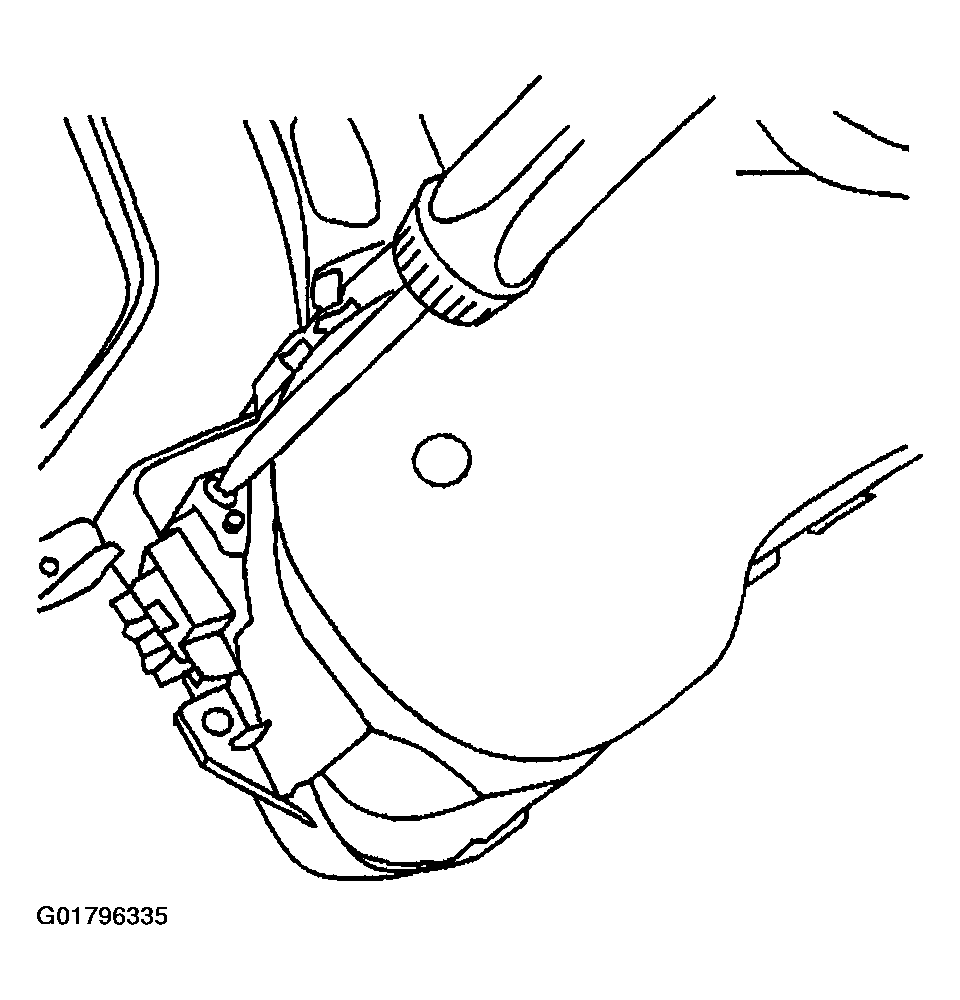

    Fig 2: Installing Fasteners & Lens To IP Cluster
    G01796335Courtesy of GENERAL MOTORS CORP.
