Removal Procedure

CAUTION: Refer to SIR HANDLING CAUTION .
  1. Disable the SIR. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Apply the parking brake.
  3. Disconnect the negative battery cable, in order to maintain the key code. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PRO .
  4. Remove the right instrument panel (I/P) outer trim cover. Refer to Instrument Panel (I/P) Outer Trim Cover Replacement
  5. Insert the ignition key into the ignition cylinder.

    Important:  A new lock cylinder housing and lock cylinder bezel will be required if the ignition cylinder is seized or the ignition key is lost or broken.

  6. If the keys are unavailable or the ignition lock cylinder is seized, proceed with the following steps:
    1. 6.1. Pry the ignition lock cylinder bezel off of the ignition switch.
    2. 6.2. Remove the knee bolster. Refer to Knee Bolster Replacement
    3. 6.3. Disconnect the ignition switch electrical connectors.
    4. 6.4. Remove the fasteners securing the ignition switch to the I/P retainer.
    5. 6.5. Remove the ignition switch through the radio opening.
    6. 6.6. Protect the immediate work area with suitable materials such as clean shop towels or a clean fender cover.
    7. 6.7. Locate the ignition switch lock cylinder release button (2) on the plastic ignition switch housing.
    8. 6.8. Center punch on the rib (1) approximately 3/8 inch toward the key entry end of the ignition lock housing.
    9. 6.9. Drill a pilot hole through the plastic housing, where the housing had been center punched in the previous step, with a 1/8 inch drill bit.
    10. 6.10. Drill the larger hole at the pilot location, and slightly into the ignition switch lock cylinder surface to break the release button retaining spring using a 1/4 inch drill bit.
    11. 6.11. Use a magnet and remove the lock cylinder release button (2).
    12. 6.12. Grasp the ignition switch lock cylinder and remove it from the switch housing.
    13. 6.13. Remove any plastic flash from the drilling operation. Using compressed air, blow out the ignition switch assembly and proceed to step  10.

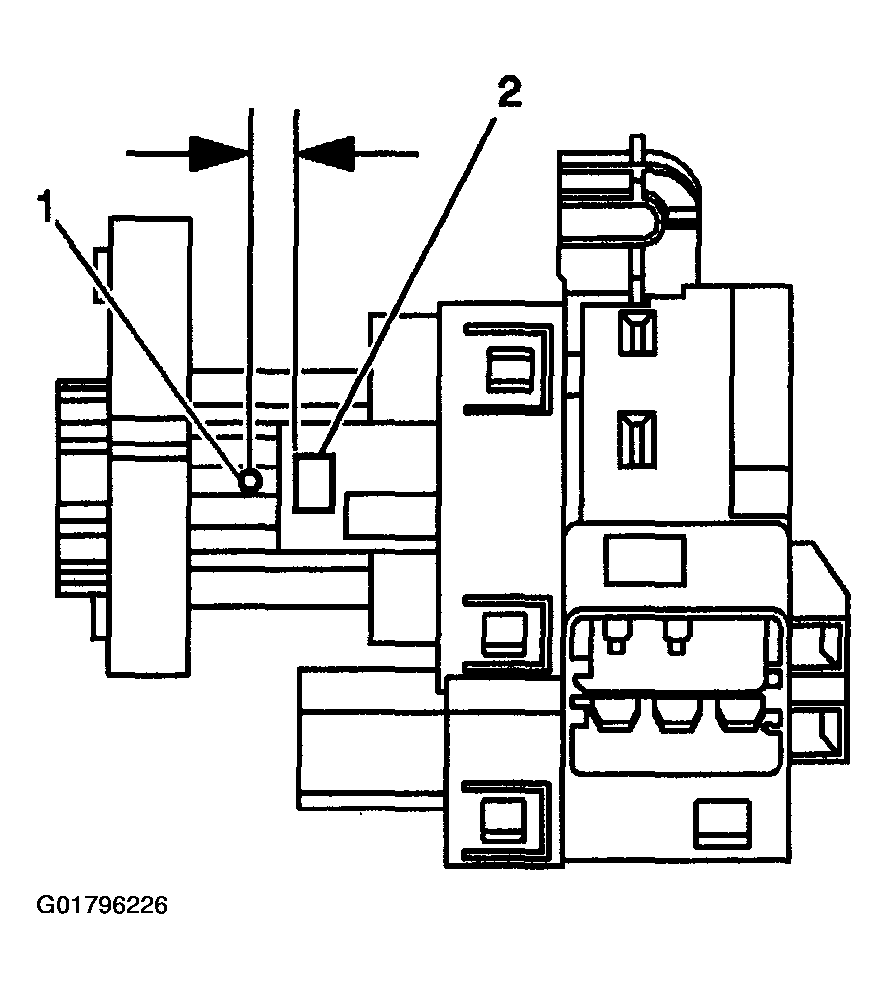

    Fig 1: Ignition Switch Lock Cylinder Release Button & Center Punch On Rib (RHD)
    G01796226Courtesy of GENERAL MOTORS CORP.
  7. Turn the ignition to the RUN position.
  8. Look through the IP outer trim cover opening and locate the ignition lock cylinder release button (3), located on the right lower side of the ignition switch assembly (2).
  9. Using a flat-bladed tool, depress and hold the ignition lock cylinder release button.

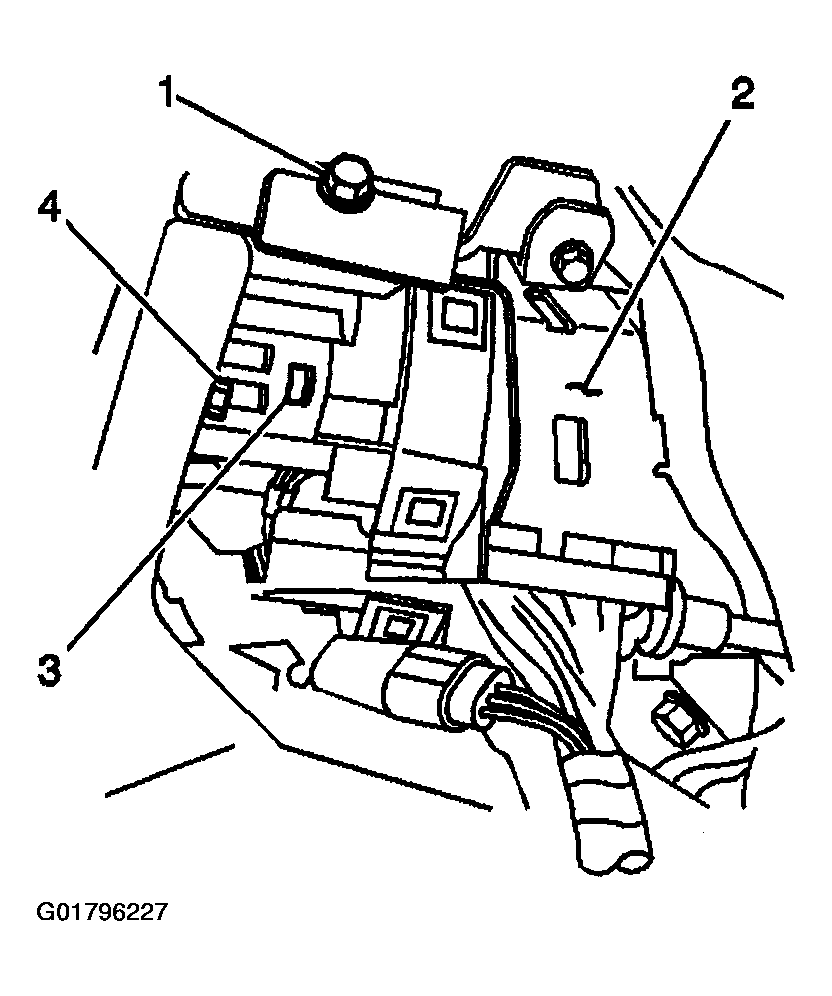

    Fig 2: IP Outer Trim Cover Opening & Ignition Lock Cylinder Release Button (RHD)
    G01796227Courtesy of GENERAL MOTORS CORP.
  10. Pull on the ignition cylinder in order to remove the ignition lock cylinder.

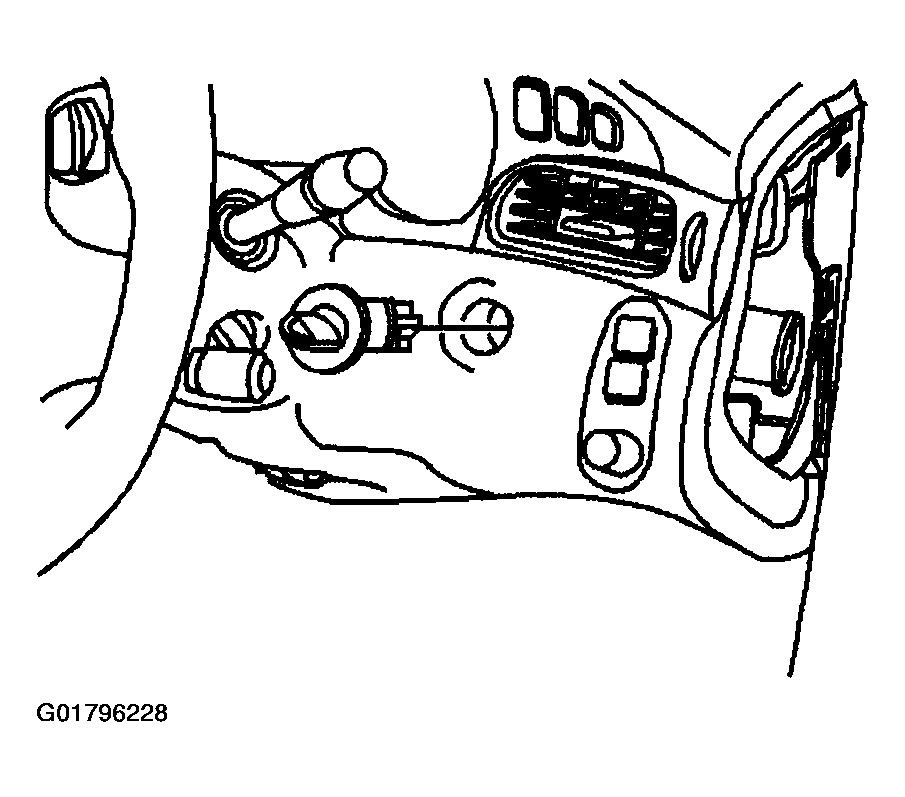

    Fig 3: Ignition Lock Cylinder (RHD)
    G01796228Courtesy of GENERAL MOTORS CORP.
  11. Release the ignition cylinder lock cylinder bezel retaining tabs.
  12. Remove the ignition lock cylinder bezel from the ignition lock cylinder.
    Fig 4: Ignition Cylinder Lock Cylinder Bezel Retaining Tabs (RHD)
    G01796229Courtesy of GENERAL MOTORS CORP.
  13. Remove the light pipe (2) from the lock cylinder. Slide the reader/exciter (4) off of the ignition lock cylinder.
    Fig 5: Removing Light Pipe, Lock Cylinder & Reader/Exciter (RHD)
    G01796230Courtesy of GENERAL MOTORS CORP.
