Removal Procedure

CAUTION: Refer to SIR HANDLING CAUTION .
  1. Remove the instrument cluster trim panel (3). Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster
  2. Disconnect the left and the right driver information center switch electrical connectors (1,2).
  3. Remove the fasteners from the switch being serviced.

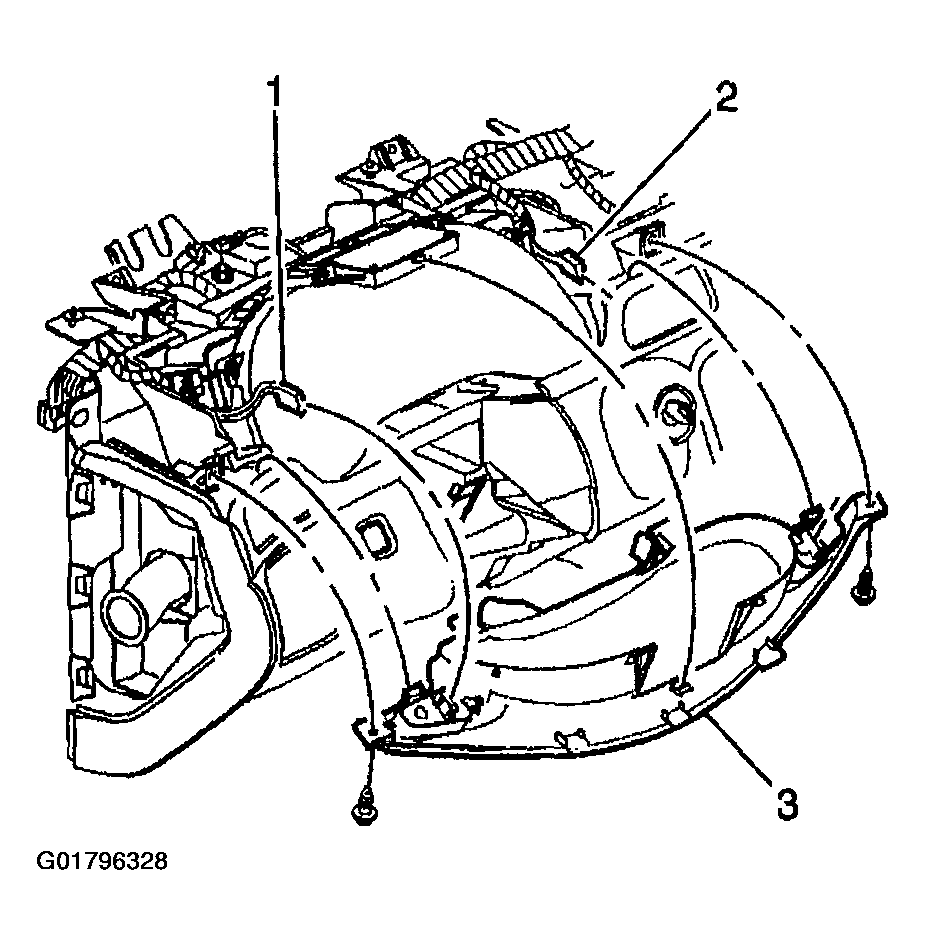

    Fig 1: Removing Instrument Cluster Trim Panel
    G01796328Courtesy of GENERAL MOTORS CORP.
