Installation Procedure

  1. Align the switch that was removed with the instrument cluster trim panel (3) and install the fasteners.
  2. Connect the two electrical connectors to the driver information center switches (1, 2).
  3. Install the instrument cluster trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster

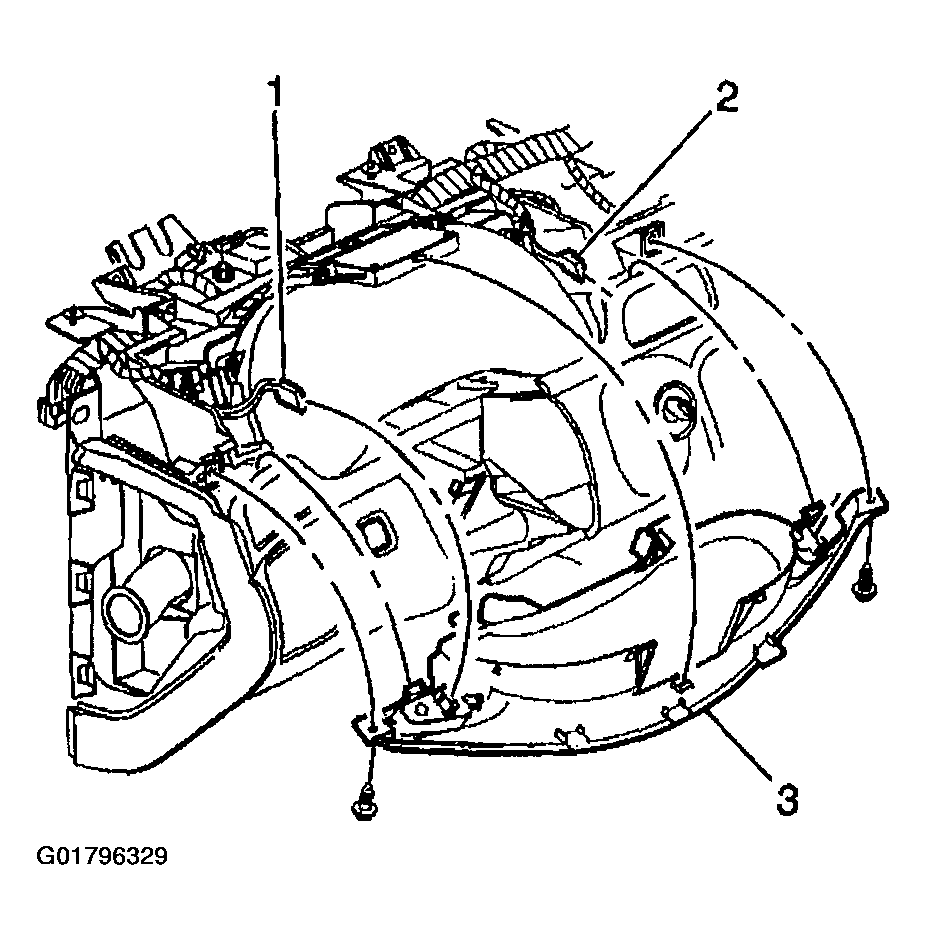

    Fig 1: Installing Instrument Cluster Trim Panel
    G01796329Courtesy of GENERAL MOTORS CORP.
