Removal Procedure

  1. Remove the center console trim plate. Refer to Trim Plate Replacement - Console
  2. Open the center console door.

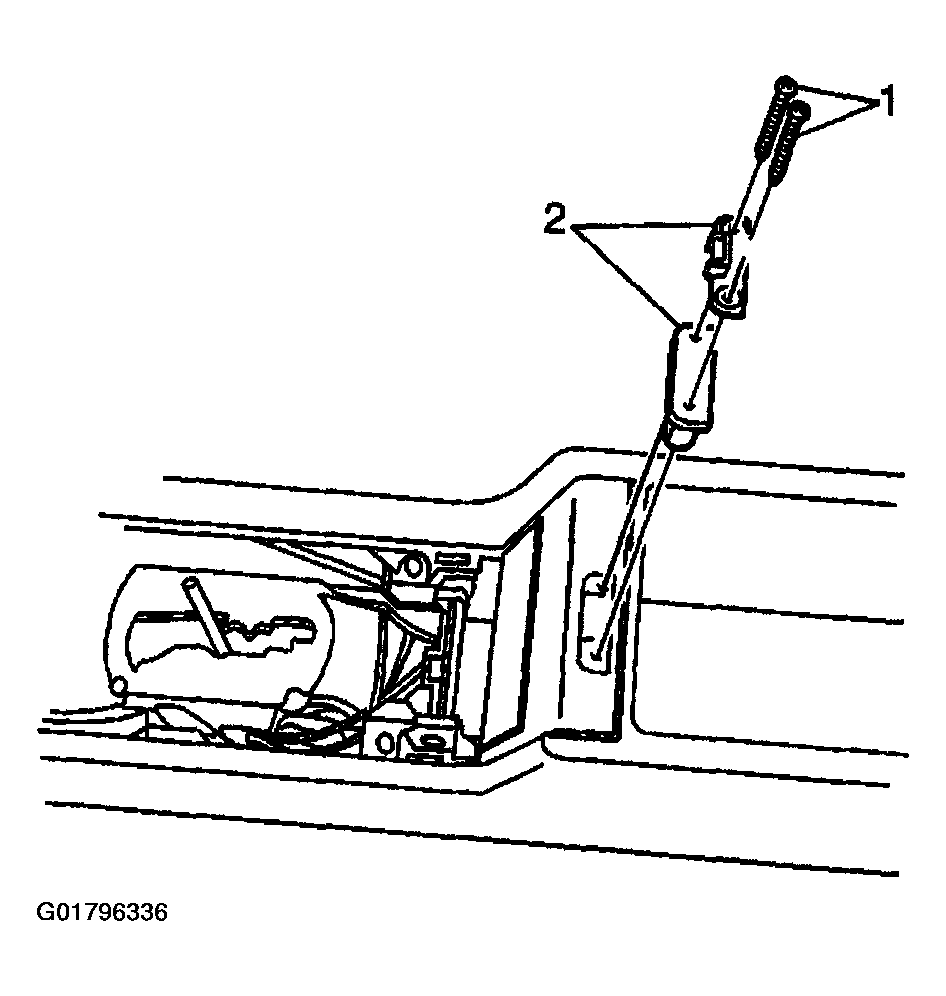

  3. Remove the console door striker assembly (1,2).
    Fig 1: Removing Console Door Striker Assembly
    G01796336Courtesy of GENERAL MOTORS CORP.

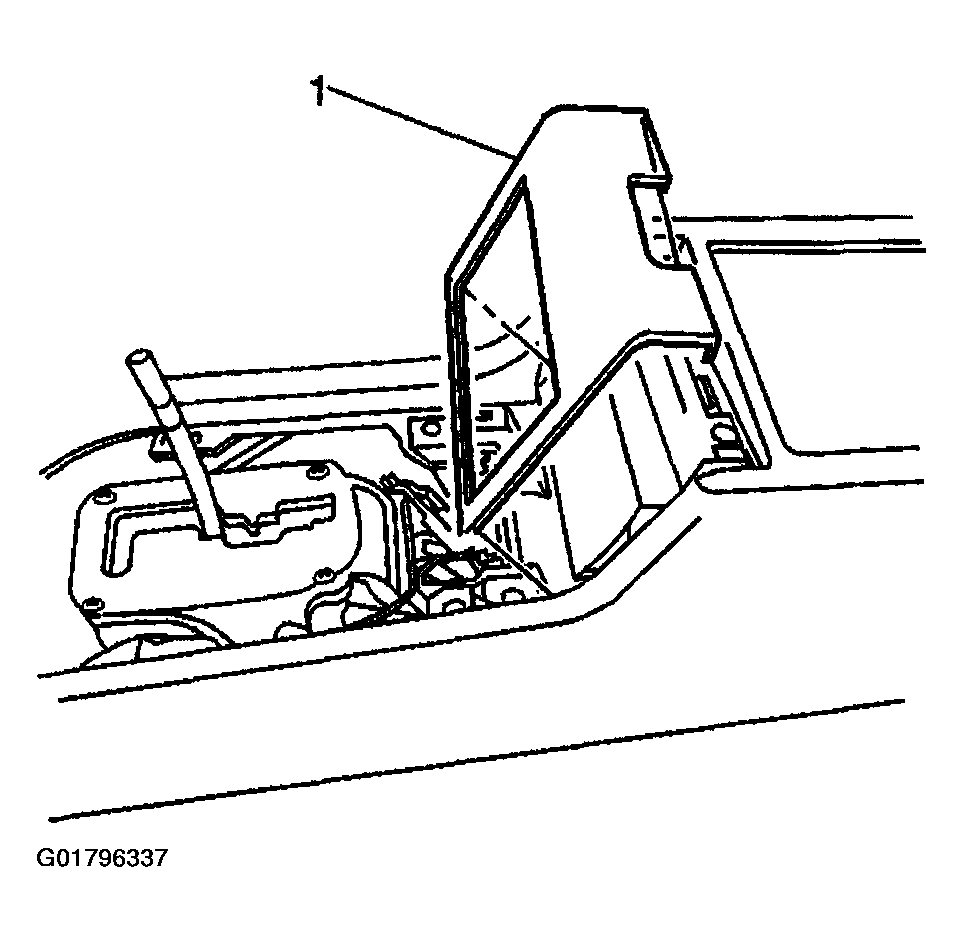

  4. Remove the cup holder trim plate (1) from the center console.
    Fig 2: Removing Cup Holder Trim Plate
    G01796337Courtesy of GENERAL MOTORS CORP.

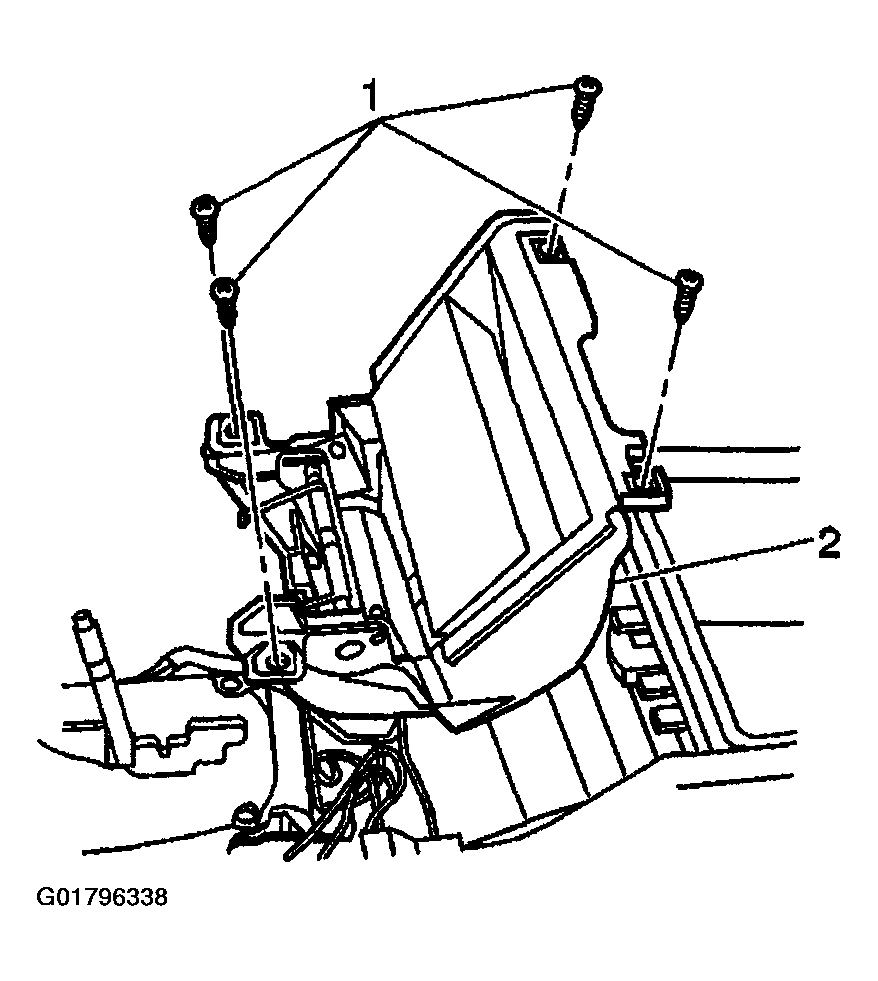

  5. Remove the four fasteners (1) from the cup holder assembly (2).
  6. Remove the cupholder assembly (2) from the center console.
    Fig 3: Removing Fasteners & Cupholder Assembly
    G01796338Courtesy of GENERAL MOTORS CORP.
