Removal Procedure

  1. Grasp the front edge and the lower rear edge of the console trim panel.
  2. Pull the trim panel outward in order to disengage the retainers.
  3. Partially remove the trim panel (2).
  4. Disconnect the auxiliary power outlet electrical connector (1).
  5. Remove the trim panel (2).

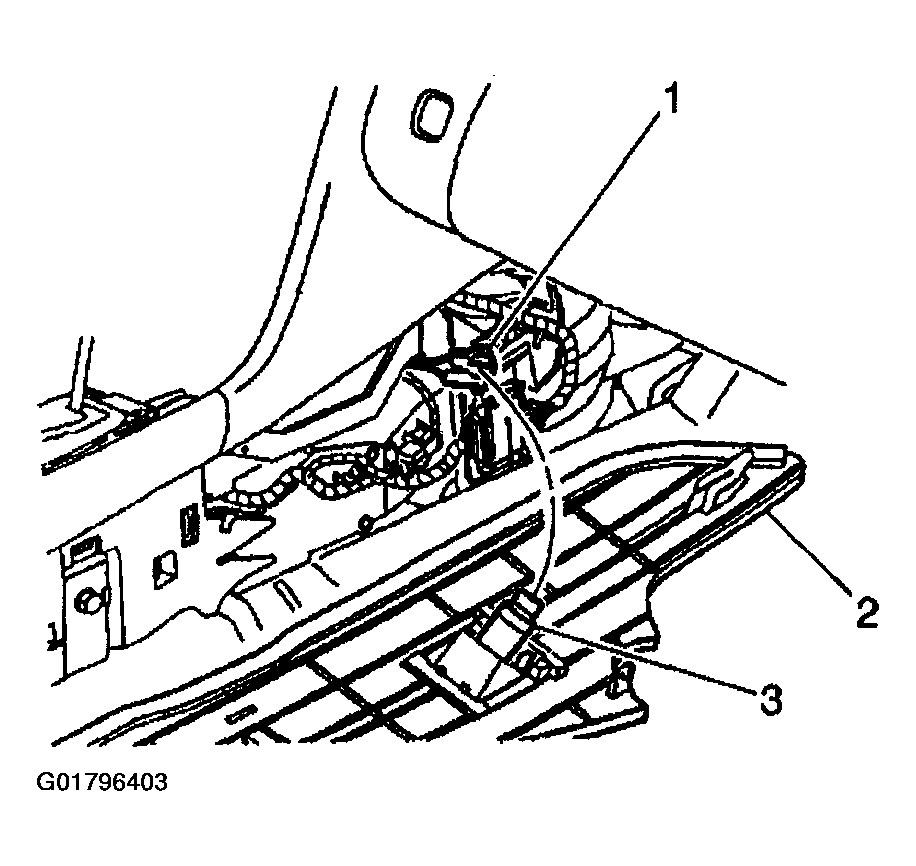

    Fig 1: Removing Auxiliary Power Outlet Electrical Connector & Trim Panel - Right
    G01796403Courtesy of GENERAL MOTORS CORP.
