Installation Procedure

  1. Align the trim panel retainers with the console side.
  2. Push firmly on the console trim panel (1) in order to engage the retainers.

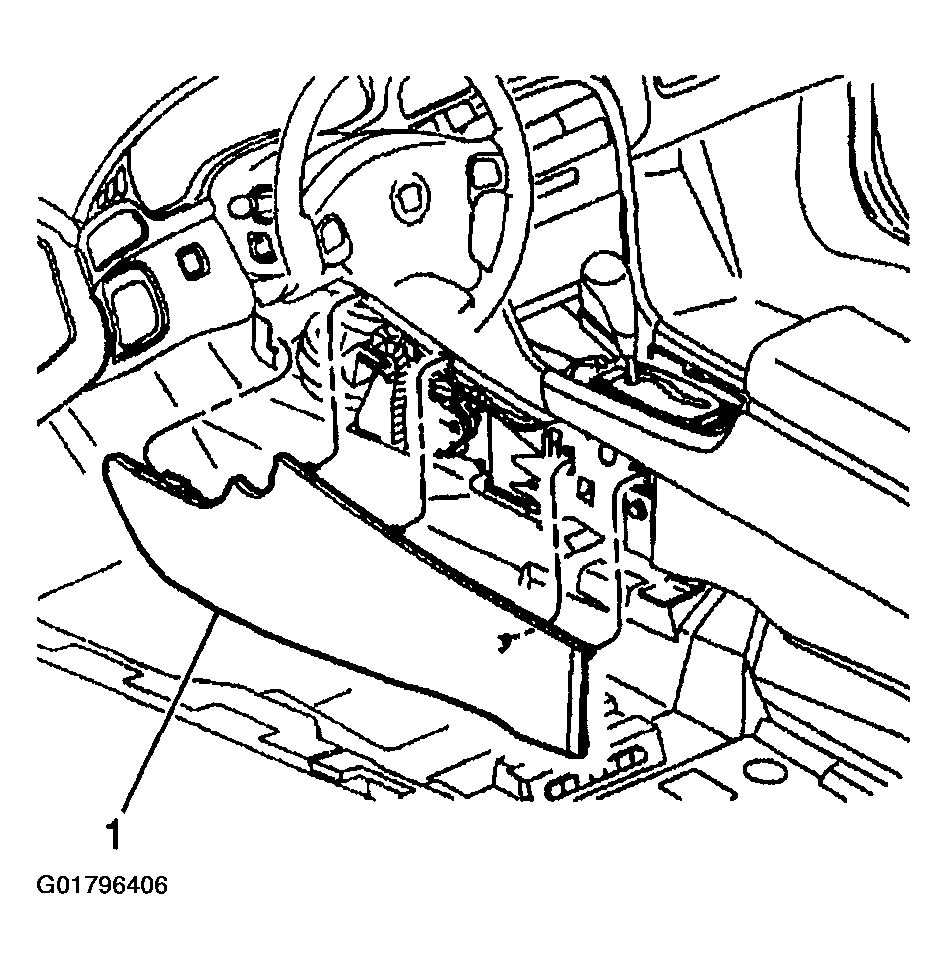

    Fig 1: Installing Auxiliary Power Outlet Electrical Connector & Trim Panel - Left
    G01796406Courtesy of GENERAL MOTORS CORP.
