Installation Procedure

  1. Install the docking station, if equipped with UV8. Refer to CELLULAR TELEPHONE DOCKING STATION REPLACEMEN .
  2. Align the center console tray (2) with the console door hinge.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws (1) to the console tray (2).

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  4. Inspect the console lid for proper operation.

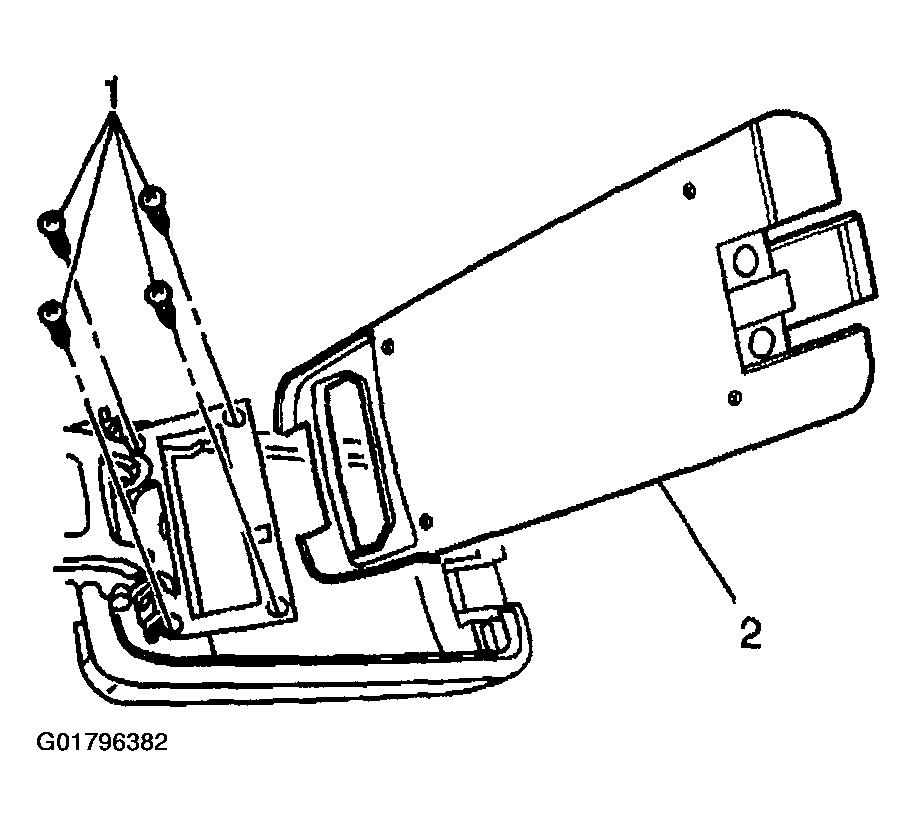

    Fig 1: Installing Screws & Center Console Tray
    G01796382Courtesy of GENERAL MOTORS CORP.
