Removal Procedure

  1. Remove the fasteners (1) at the rear edges of the insulators in order to disengage the insulators from the lower instrument panel (IP).
  2. Push in on the snap tab retainers in order to release the fasteners.

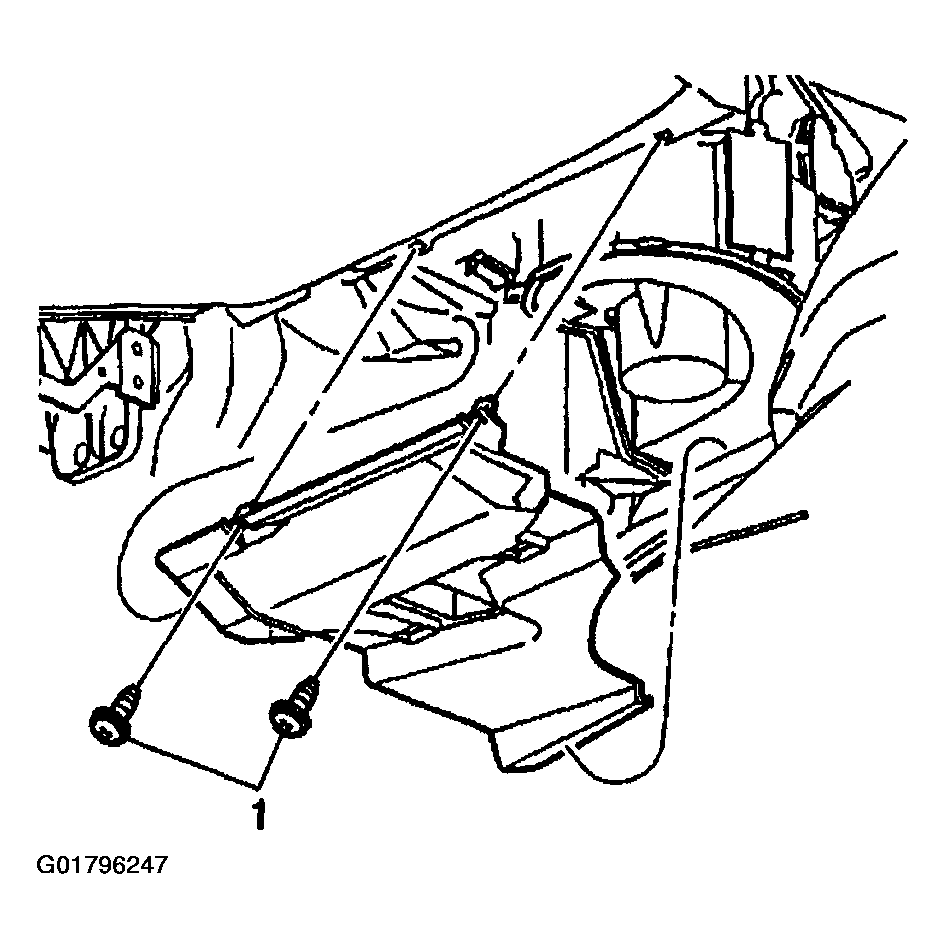

    Fig 1: Removing Fasteners & Closeout/Insulator Panel Replacement - Right (LHD)
    G01796247Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connectors (1,2).
  4. Slide the insulator (3) rearward toward the vehicle.

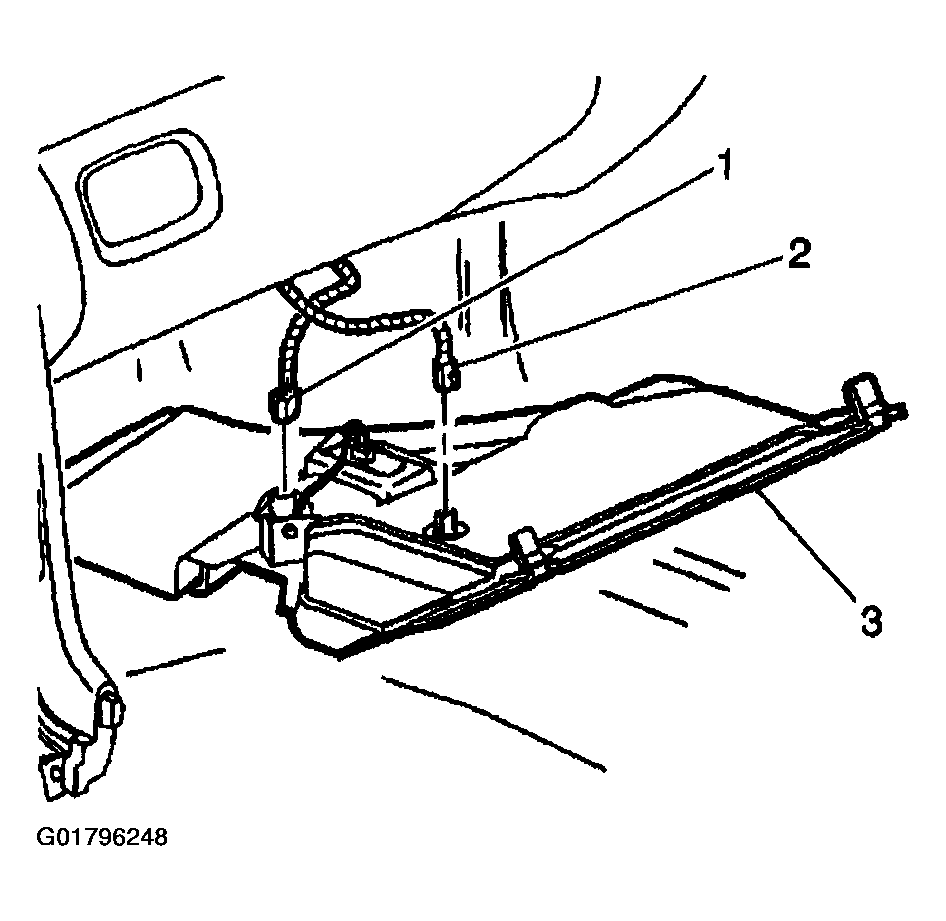

    Fig 2: Disconnecting Electrical Connectors & Insulator Closeout/Insulator Panel Replacement - Right (LHD)
    G01796248Courtesy of GENERAL MOTORS CORP.
