Installation Procedure

  1. Push the housing (1) into the trim panel opening.
  2. Screw the retainer onto the housing.
  3. Install the cigar lighter (2).
  4. Install the console trim plate. Refer to Trim Plate Replacement - Console

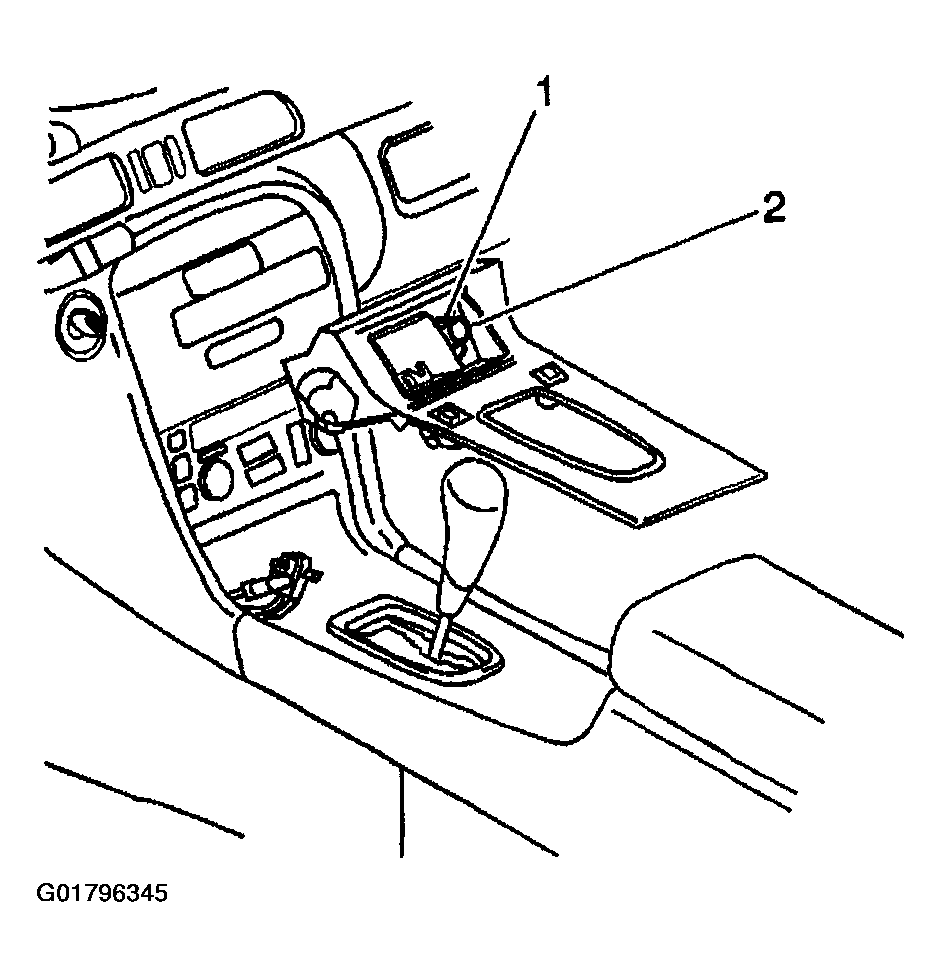

    Fig 1: Installing Cigar Lighter & Housing
    G01796345Courtesy of GENERAL MOTORS CORP.
