Removal Procedure

  1. Remove the right console side trim panel. Refer to Console Trim Panel Replacement - Right
  2. Disconnect the auxiliary power outlet electrical connector (1).
  3. Unscrew the retainer (3) from the outlet.
  4. Slide the outlet from the trim panel.

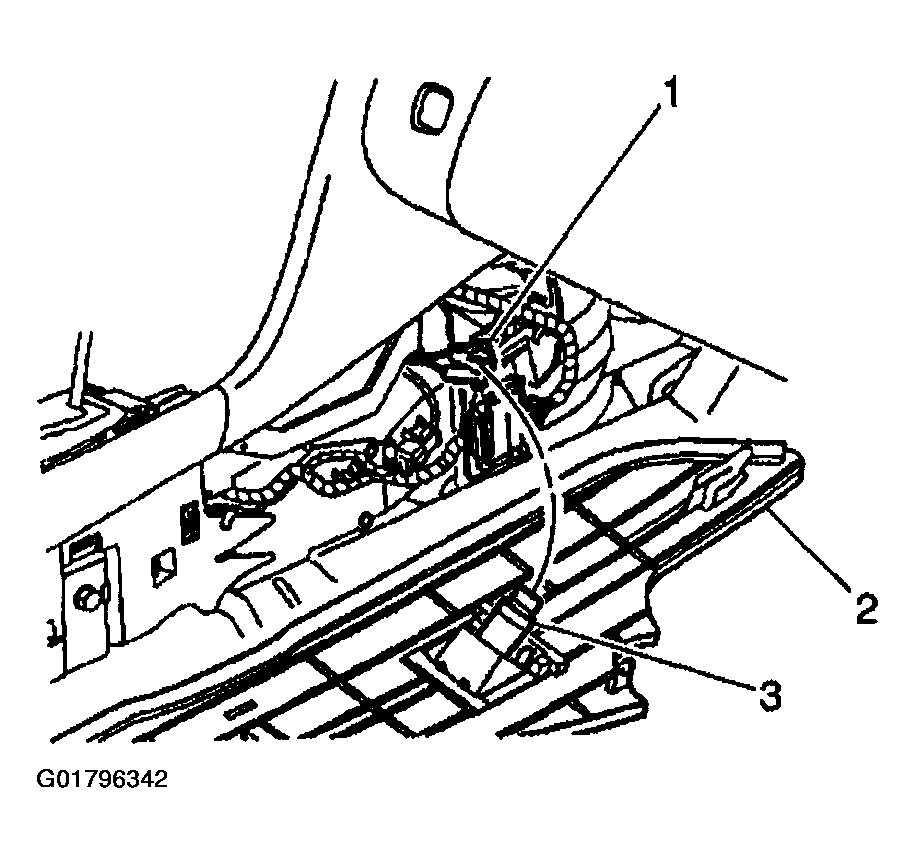

    Fig 1: Removing Auxiliary Power Outlet Electrical Connector
    G01796342Courtesy of GENERAL MOTORS CORP.
