Installation Procedure

  1. Slide the outlet into the hole in the trim panel.
  2. Screw the retainer (3) onto the outlet.
  3. Connect the auxiliary power outlet electrical connector (1).
  4. Install the right console side trim panel. Refer to Console Trim Panel Replacement - Right

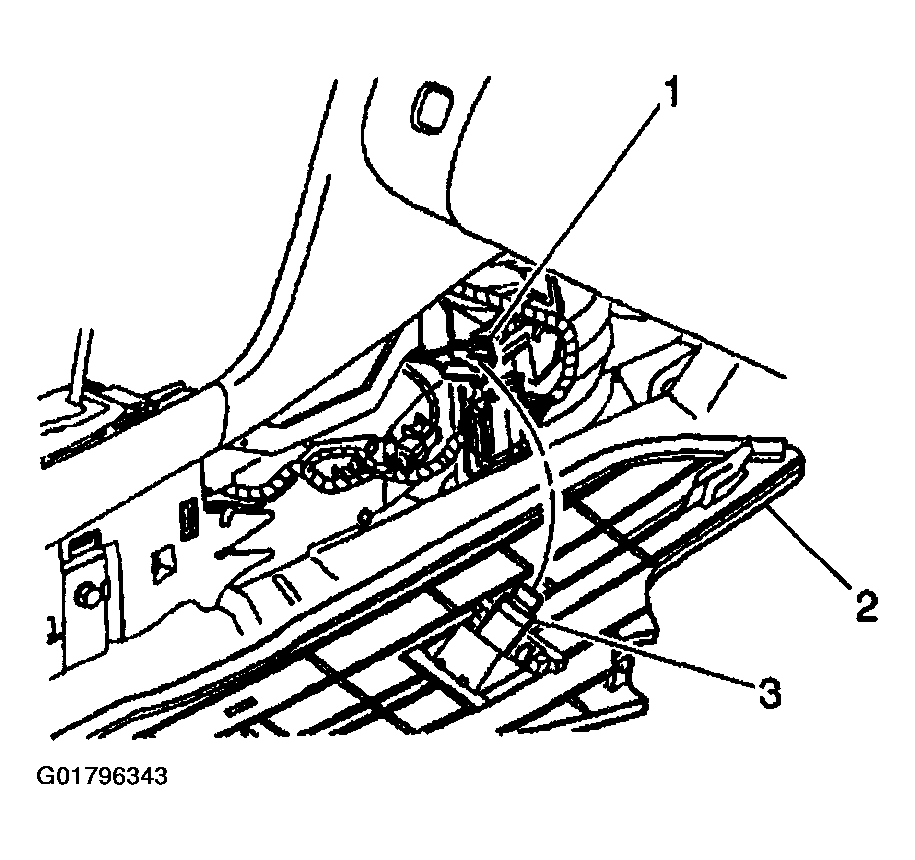

    Fig 1: Installing Auxiliary Power Outlet Electrical Connector
    G01796343Courtesy of GENERAL MOTORS CORP.
