Scan Tool Data List

Fig 1: Driver Door Module
G01796185Courtesy of GENERAL MOTORS CORP.

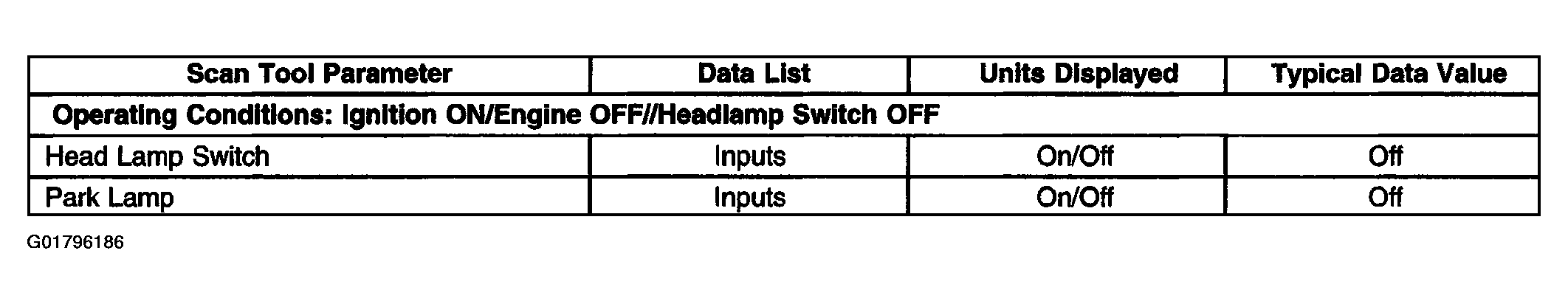

Fig 2: Dash Integration Module (DIM)
G01796186Courtesy of GENERAL MOTORS CORP.

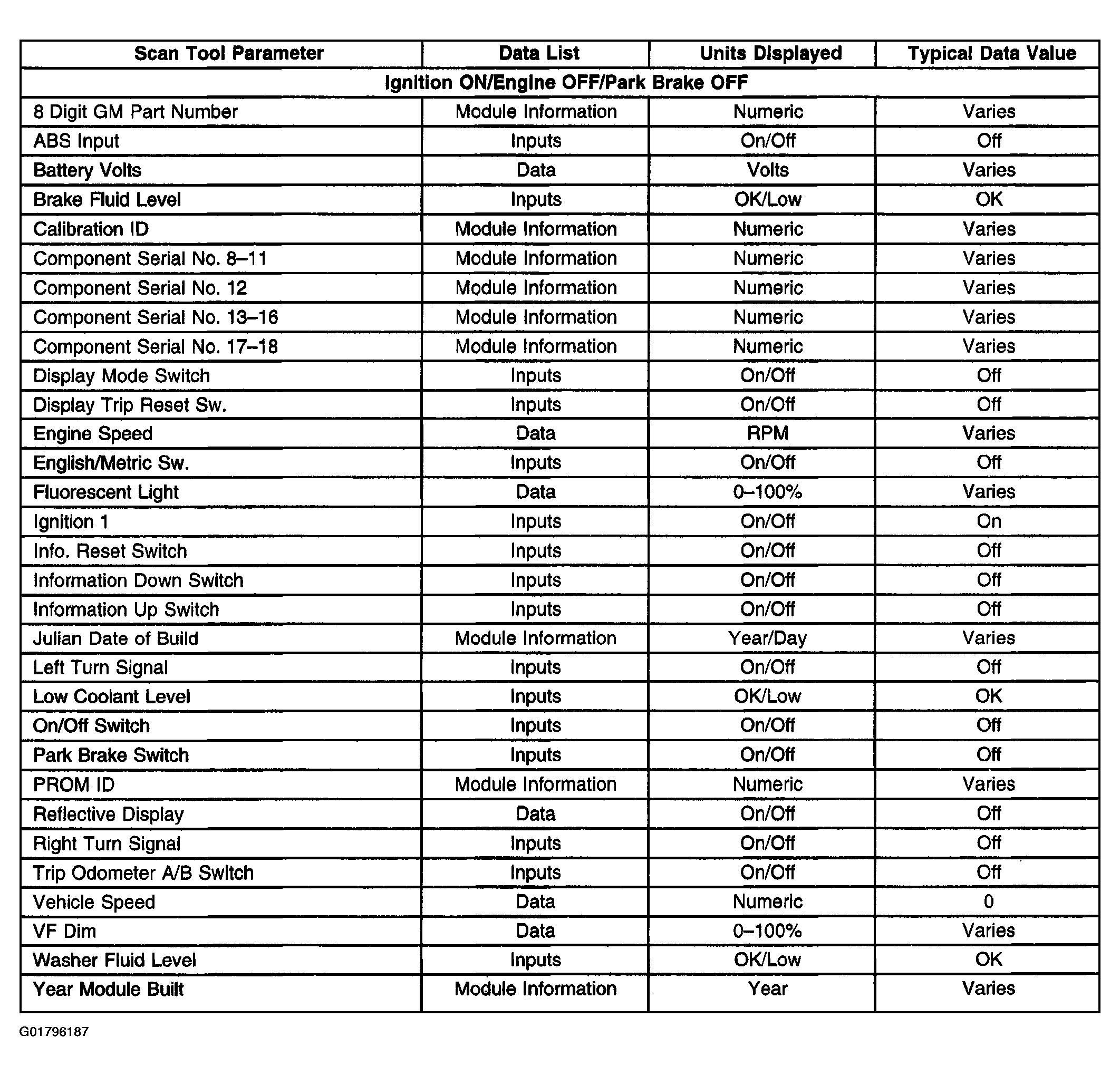

Fig 3: Instrument Panel Cluster (IPC)
G01796187Courtesy of GENERAL MOTORS CORP.
Fig 4: Instrument Panel Module (IPM)
G01796188Courtesy of GENERAL MOTORS CORP.

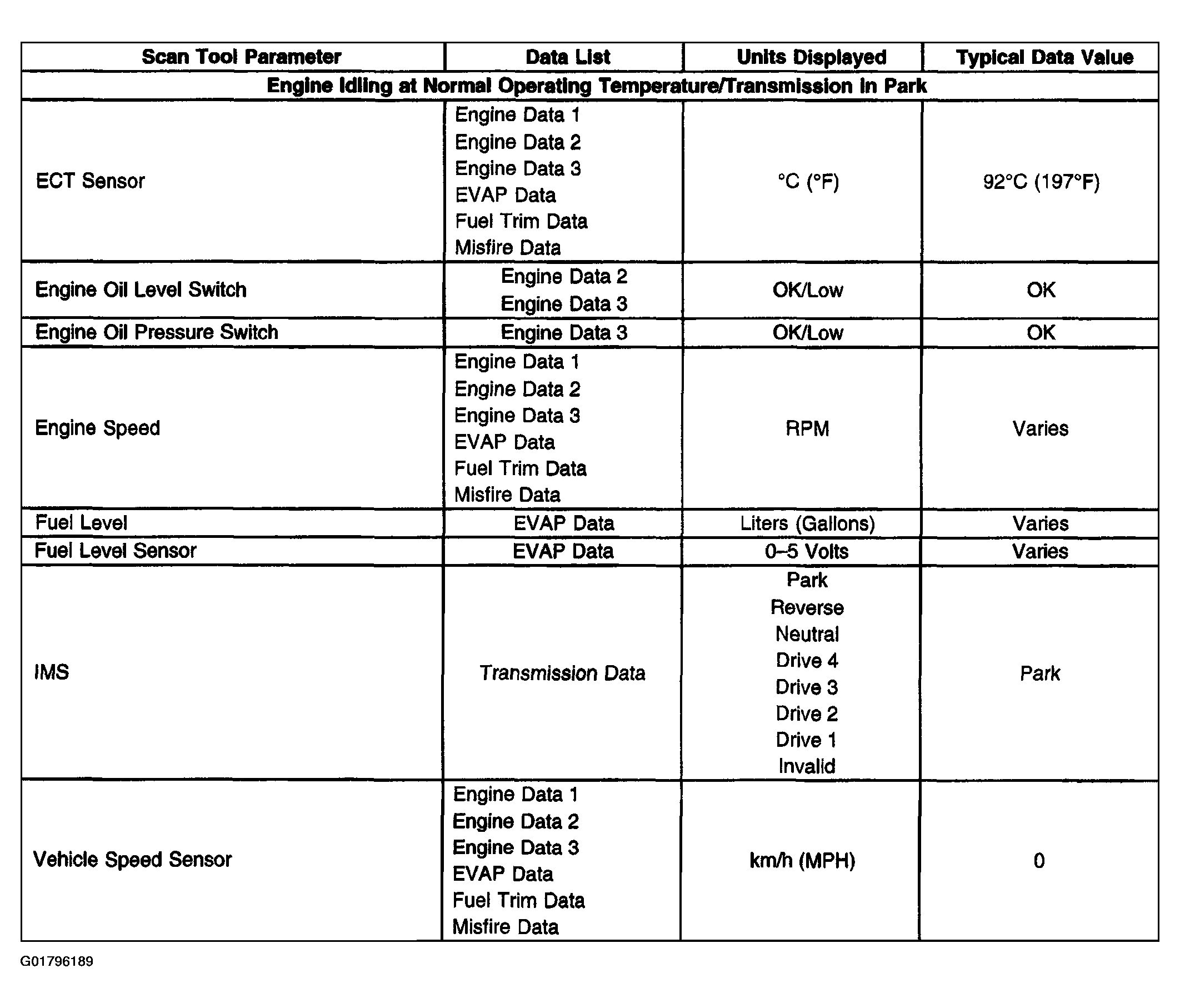

Fig 5: Powertrain Control Module (PCM)
G01796189Courtesy of GENERAL MOTORS CORP.
