Low Engine Oil Level Indicator Always On

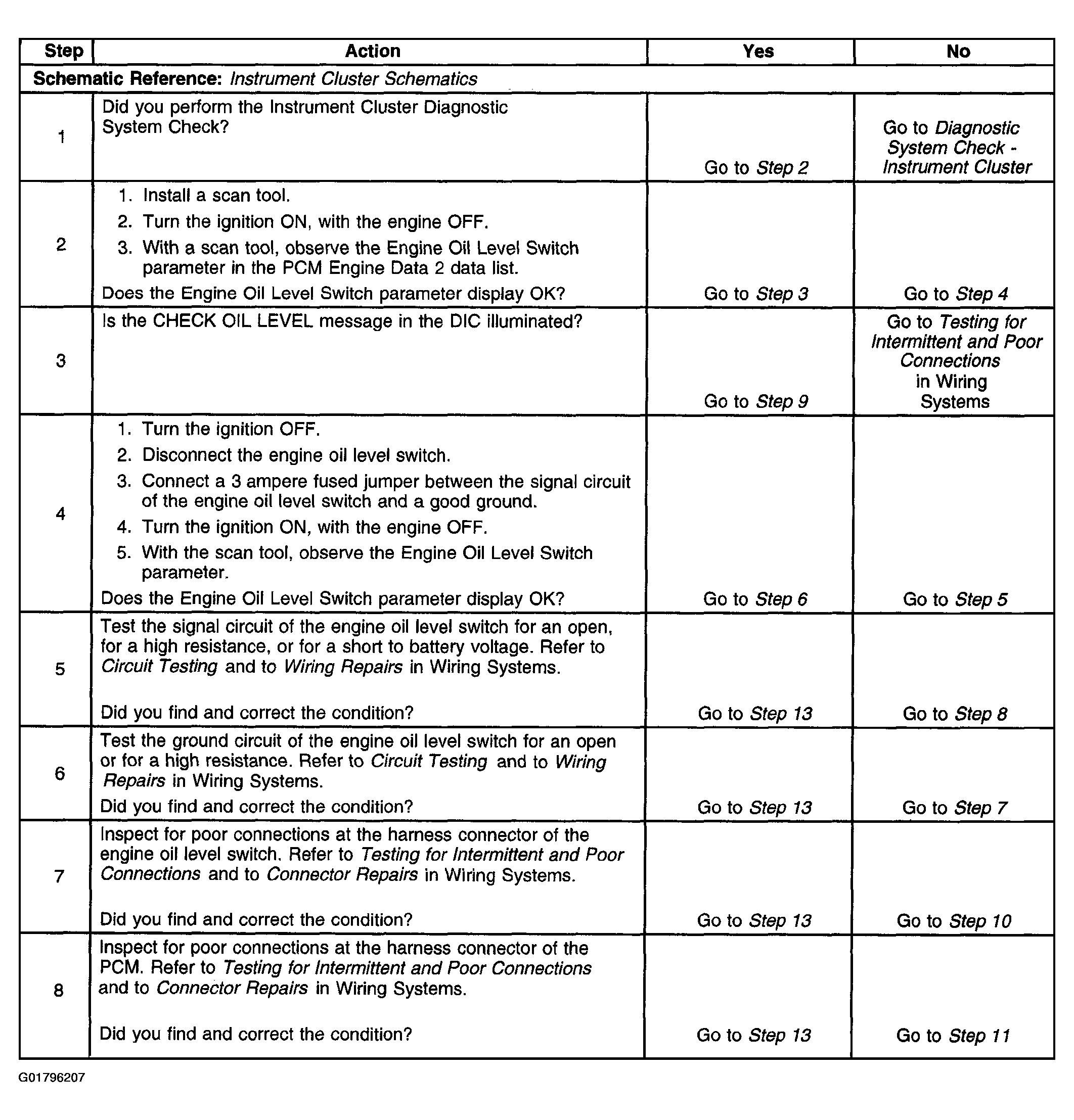

Fig 1: Low Engine Oil Level Indicator Always On (Steps 1-8)

Courtesy of GENERAL MOTORS CORP.

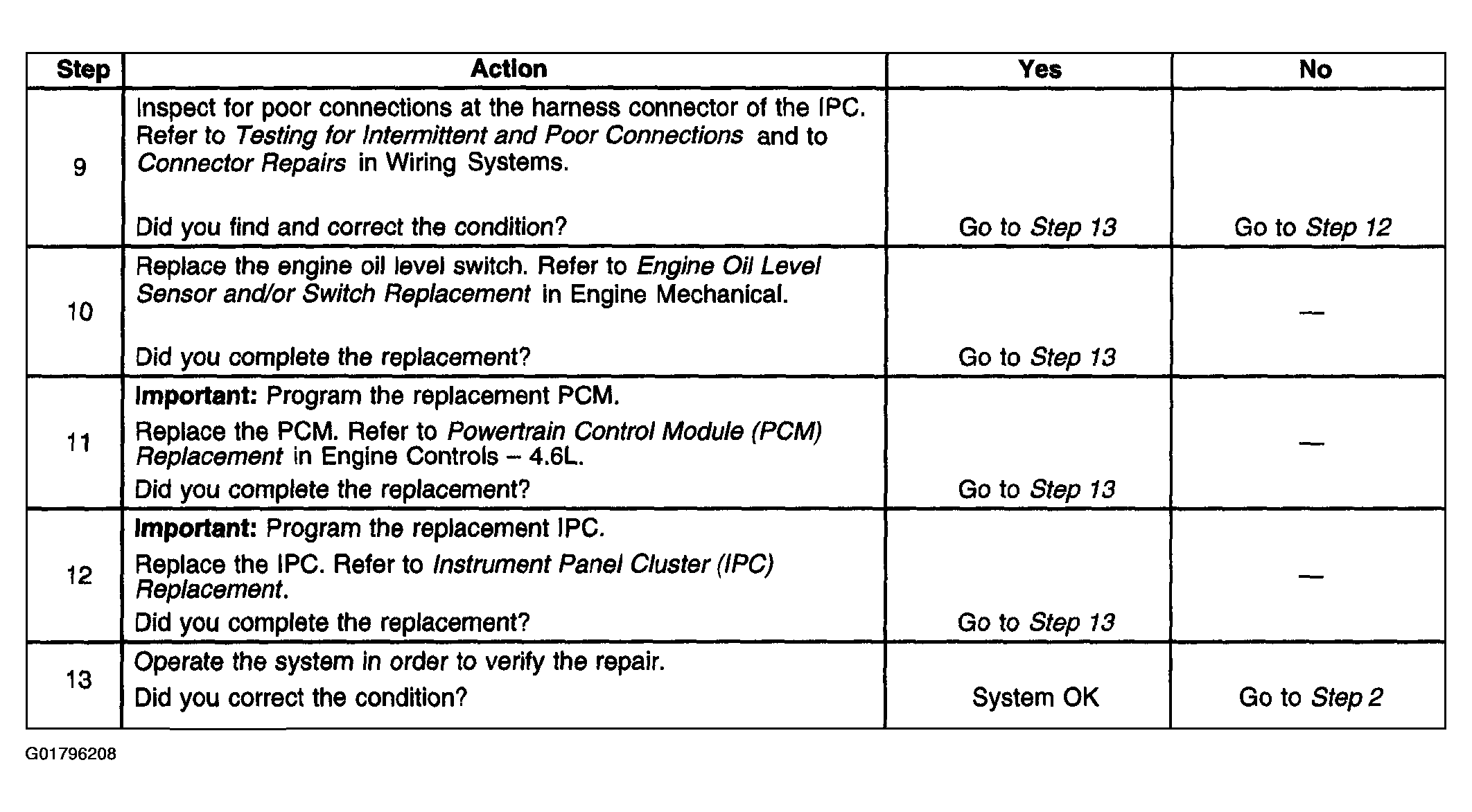

Fig 2: Low Engine Oil Level Indicator Always On (Steps 9-13)

Courtesy of GENERAL MOTORS CORP.
