Engine Oil Pressure Indicator Always On

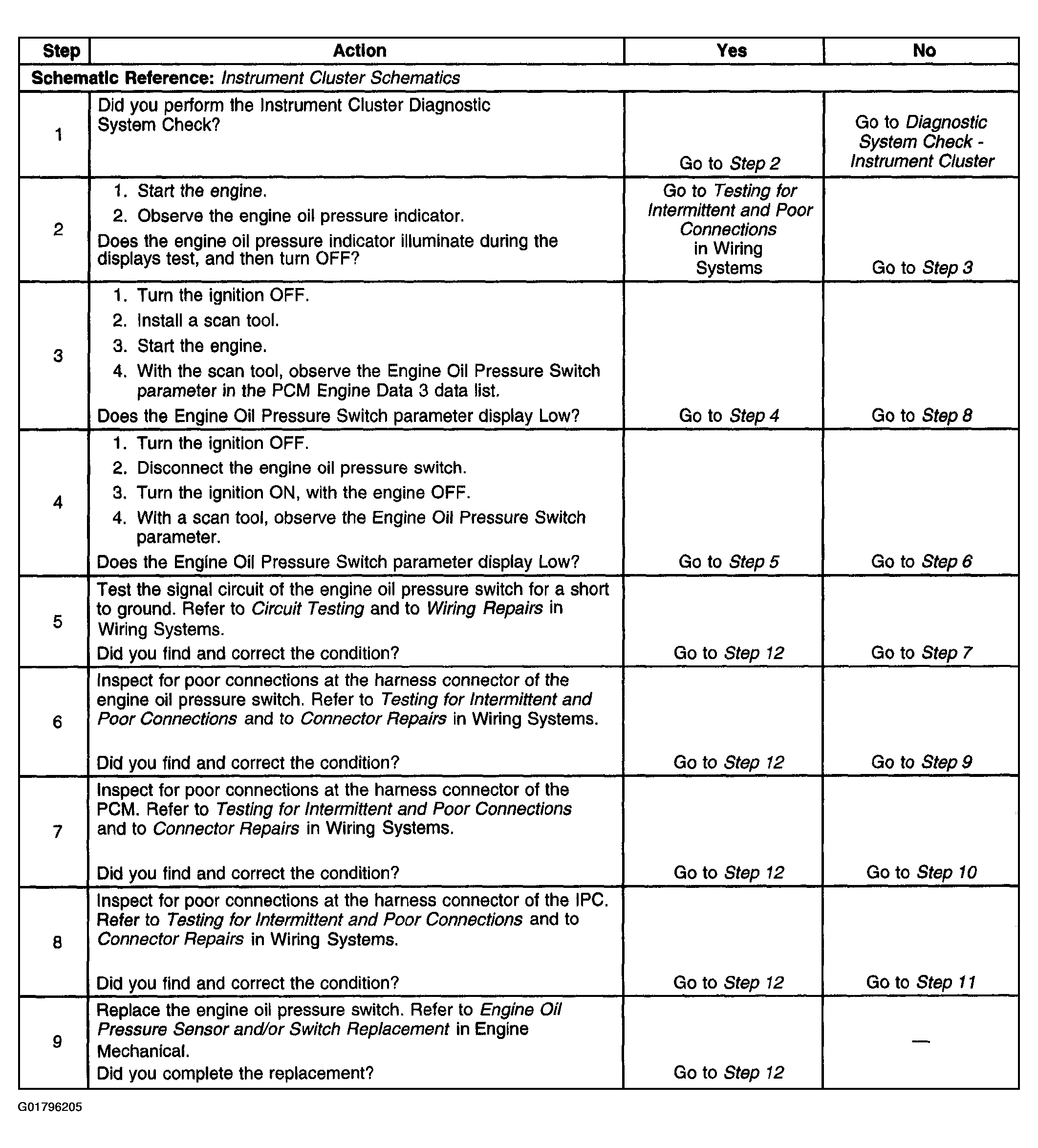

Fig 1: Engine Oil Pressure Indicator Always On (Steps 1-9)

Courtesy of GENERAL MOTORS CORP.

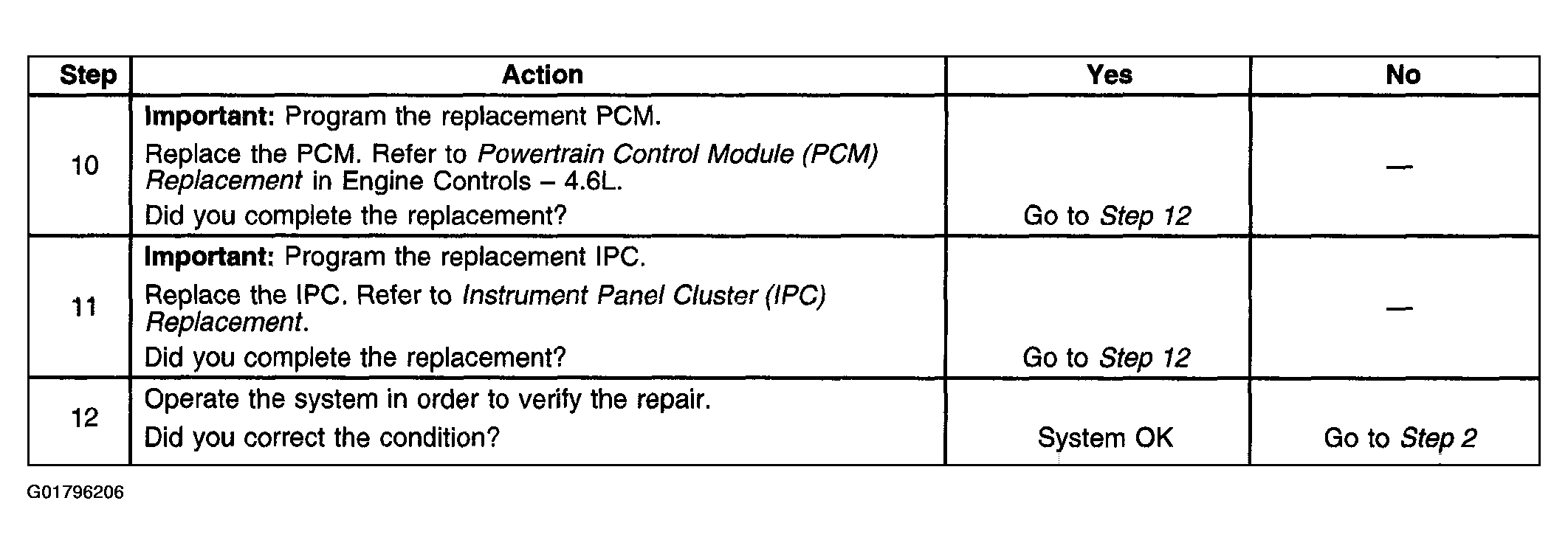

Fig 2: Engine Oil Pressure Indicator Always On (Steps 10-12)

Courtesy of GENERAL MOTORS CORP.
