Chime Inoperative

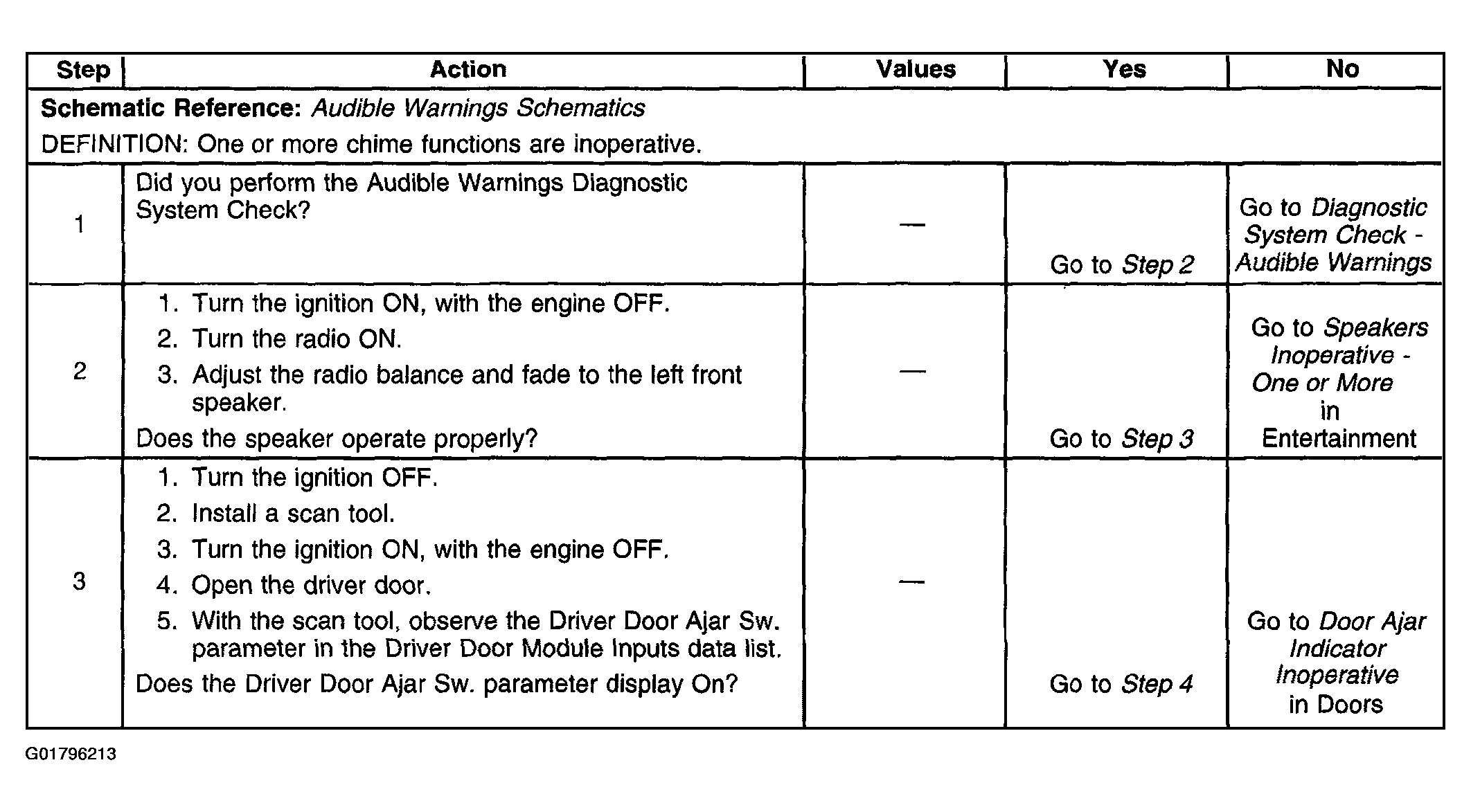

Fig 1: Chime Inoperative (Steps 1-3)
G01796213Courtesy of GENERAL MOTORS CORP.

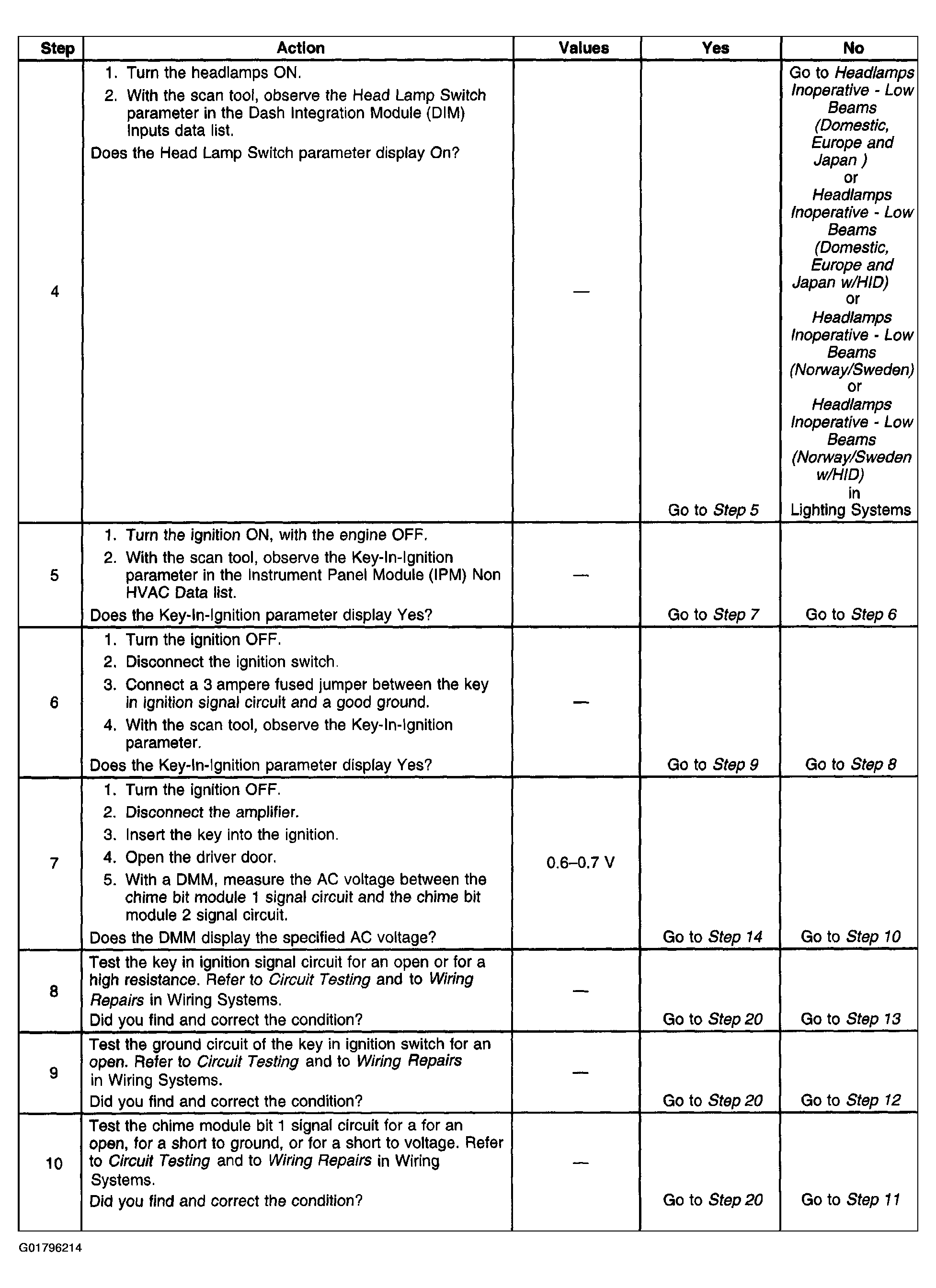

Fig 2: Chime Inoperative (Steps 4-10)
G01796214Courtesy of GENERAL MOTORS CORP.

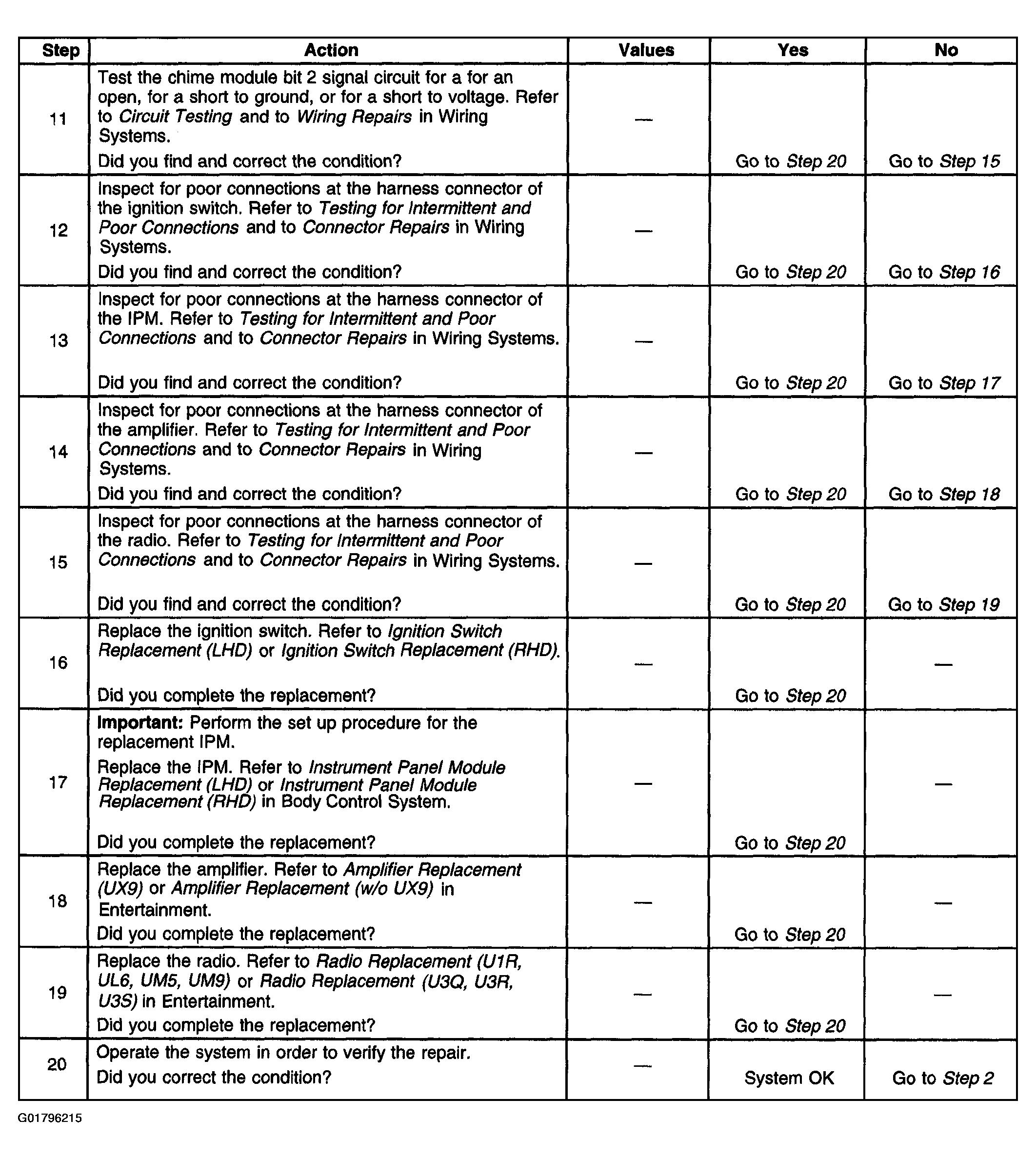

Fig 3: Chime Inoperative (Steps 11-20)
G01796215Courtesy of GENERAL MOTORS CORP.
