Instrument Panel, Gages & Console Connector End Views

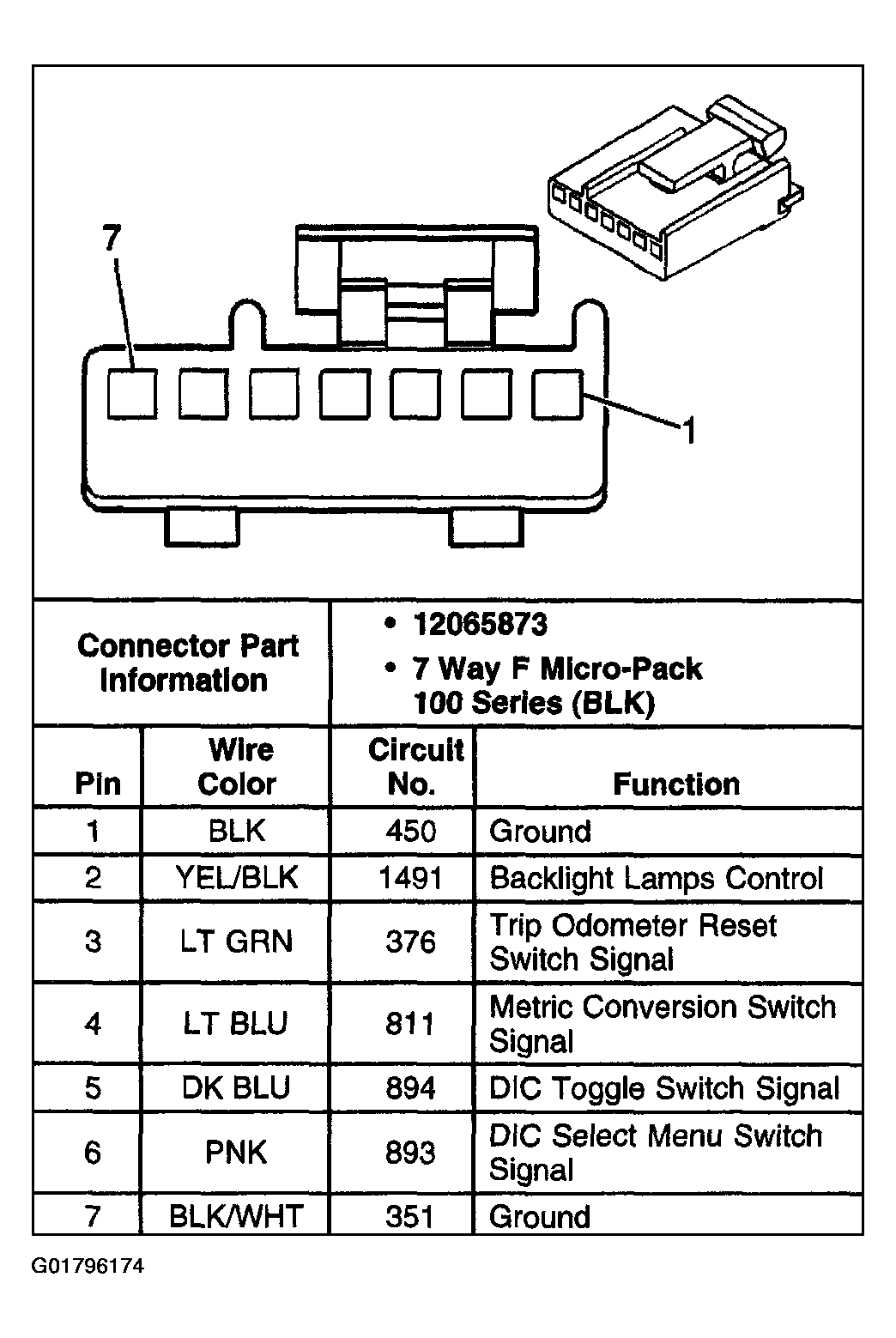

Fig 1: Driver Information Center (DIC) Switch - Left

Courtesy of GENERAL MOTORS CORP.

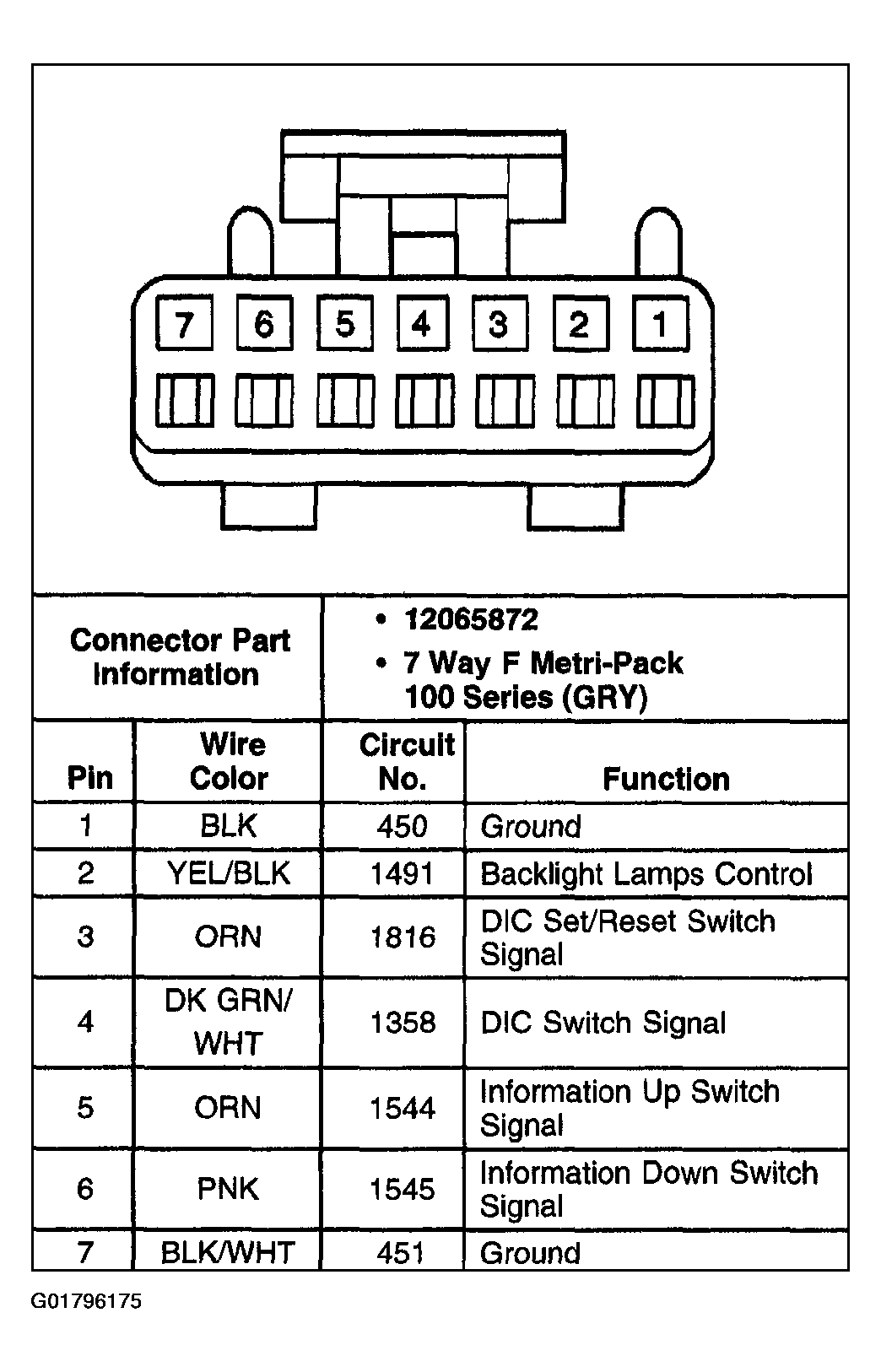

Fig 2: Driver Information Center (DIC) Switch - Right

Courtesy of GENERAL MOTORS CORP.

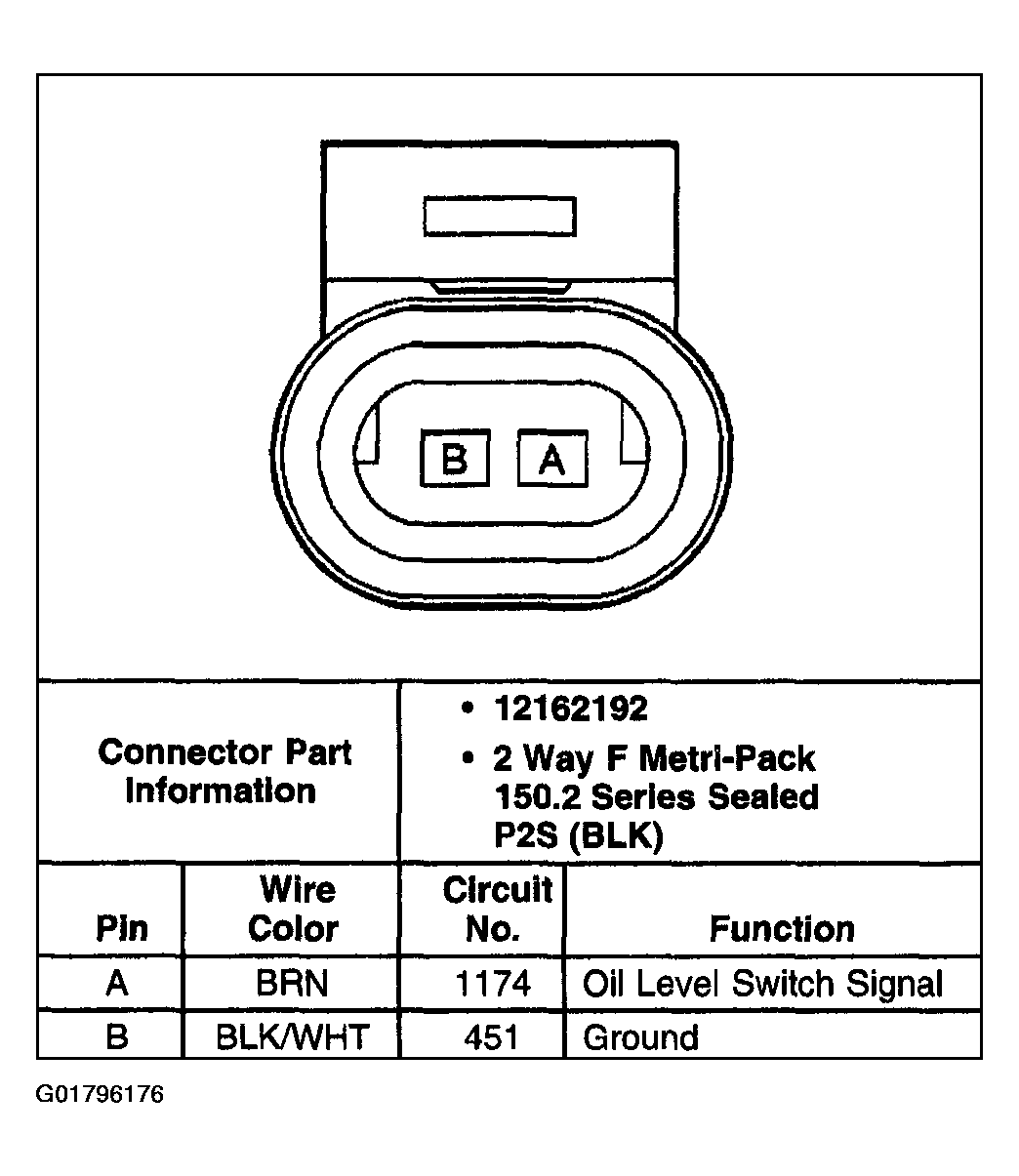

Fig 3: Engine Oil Level Switch

Courtesy of GENERAL MOTORS CORP.

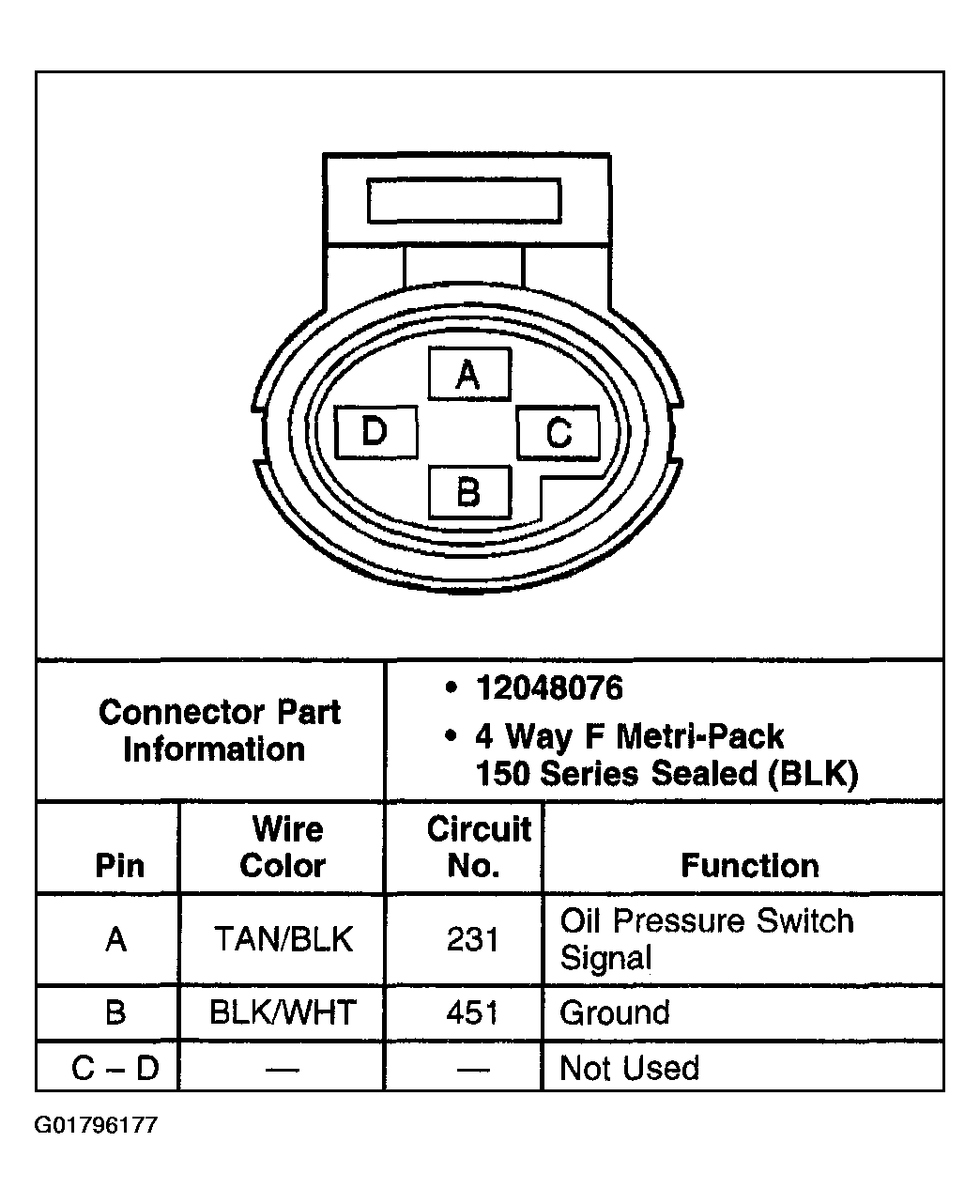

Fig 4: Engine Oil Pressure (EOP) Switch

Courtesy of GENERAL MOTORS CORP.

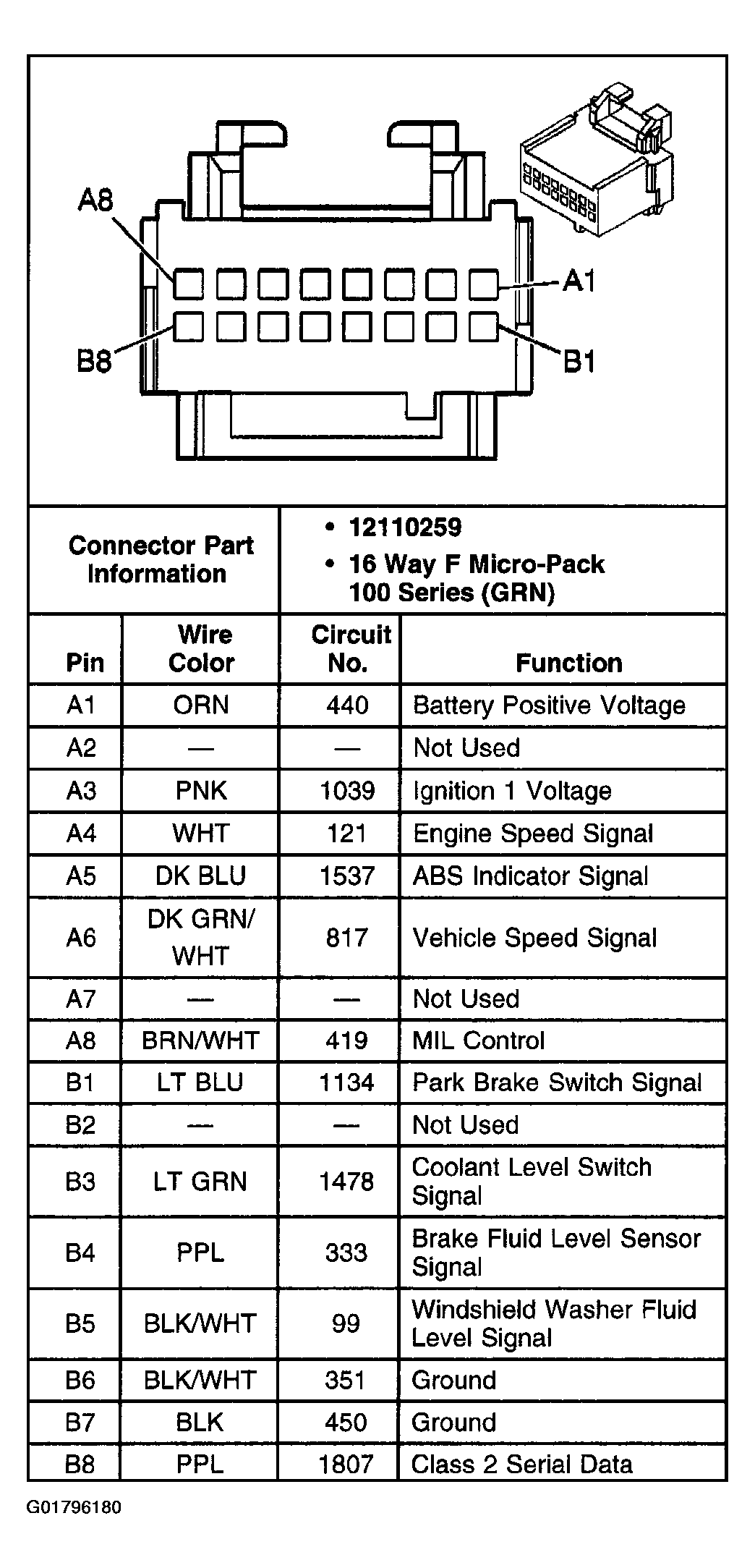

Fig 5: Instrument Panel Cluster (IPC) C1 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

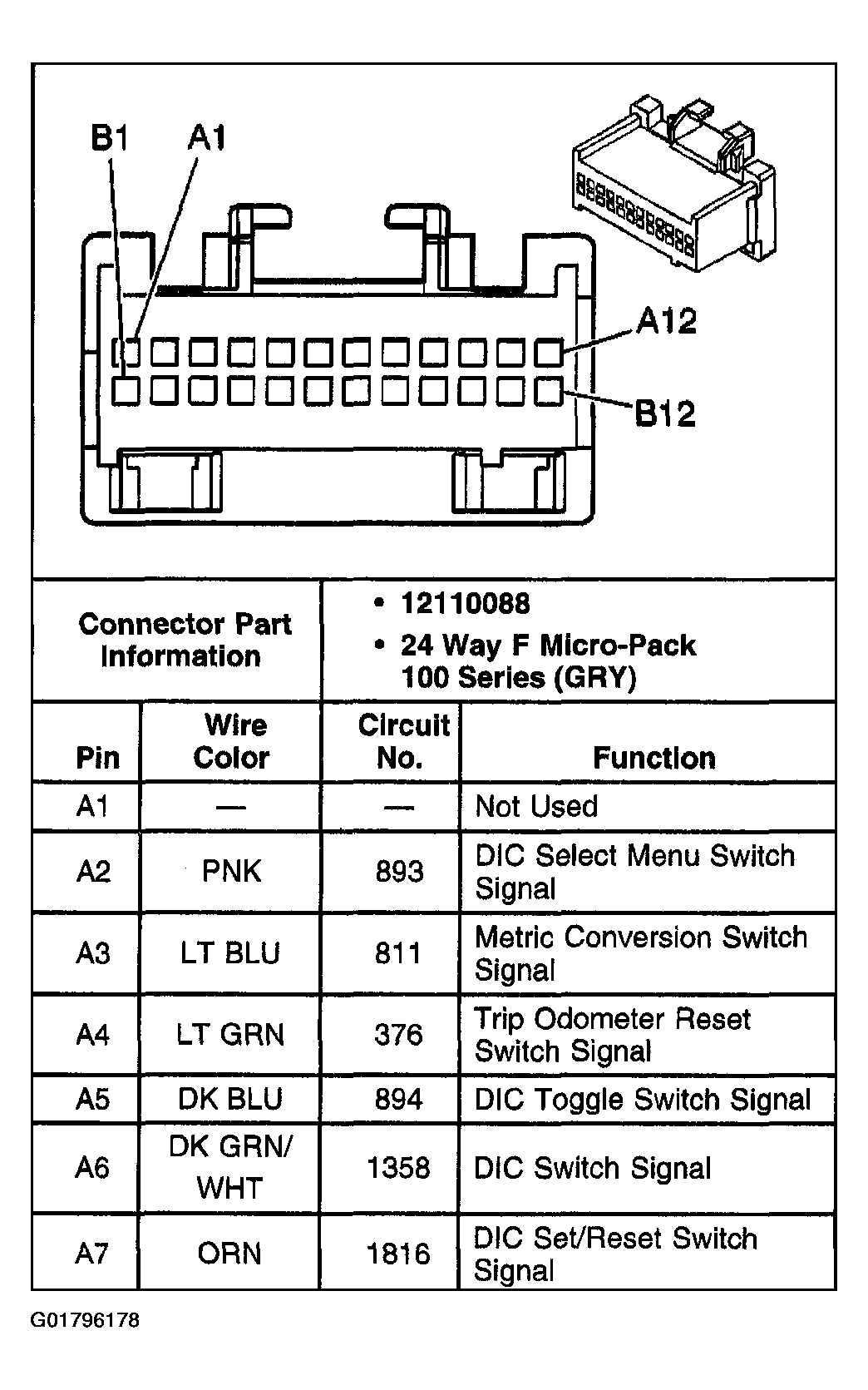

Fig 6: Instrument Panel Cluster (IPC) C1 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

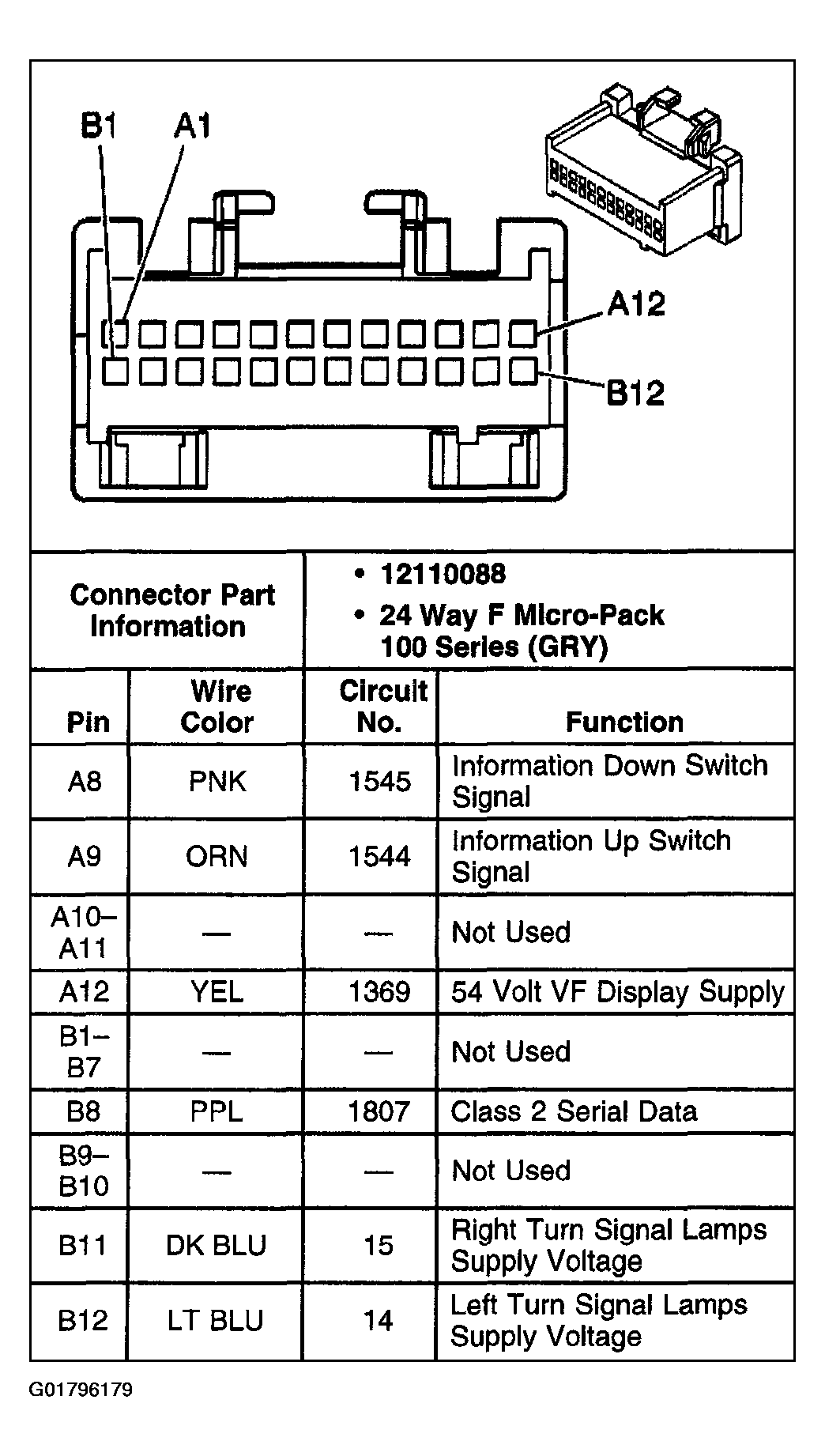

Fig 7: Instrument Panel Cluster (IPC) C2

Courtesy of GENERAL MOTORS CORP.

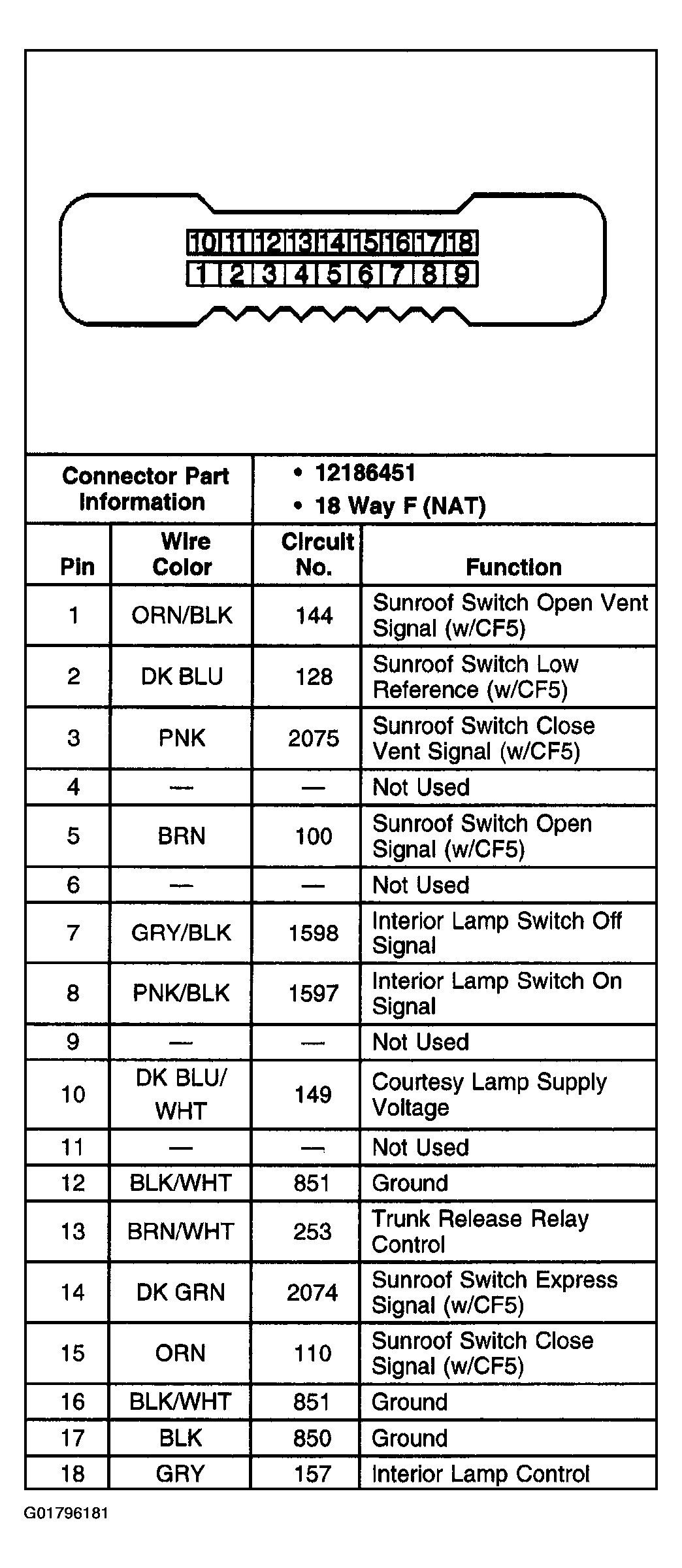

Fig 8: Overhead Console

Courtesy of GENERAL MOTORS CORP.
