Whine or Growl Noise from the Power Steering System (With Hydraulic Brake Booster)

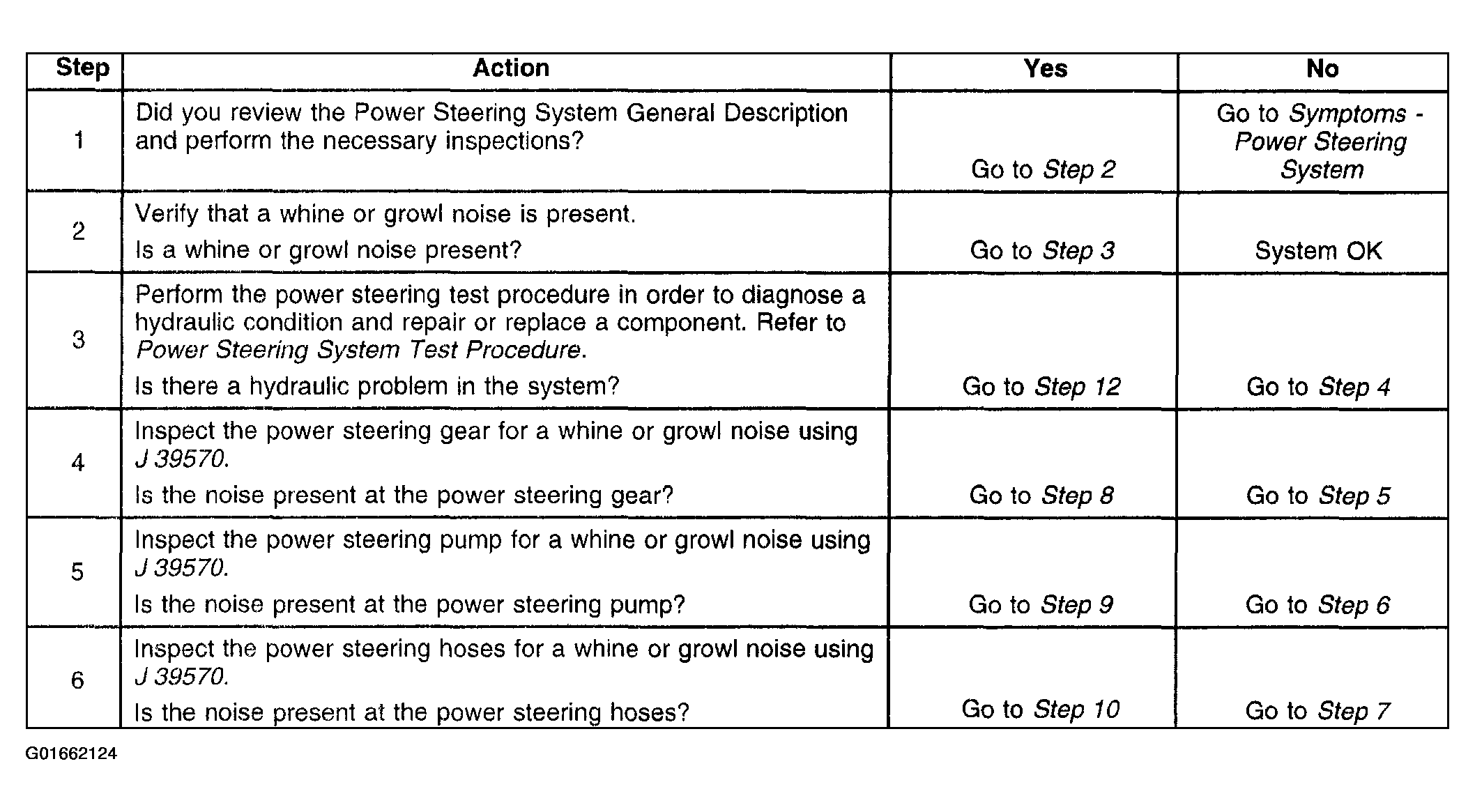

Fig 1: Identifying Whine Or Growl Noise From Power Steering System (With Hydraulic Brake Booster) Diagnostic Tables (1 Of 2)
G01662124Courtesy of GENERAL MOTORS CORP.

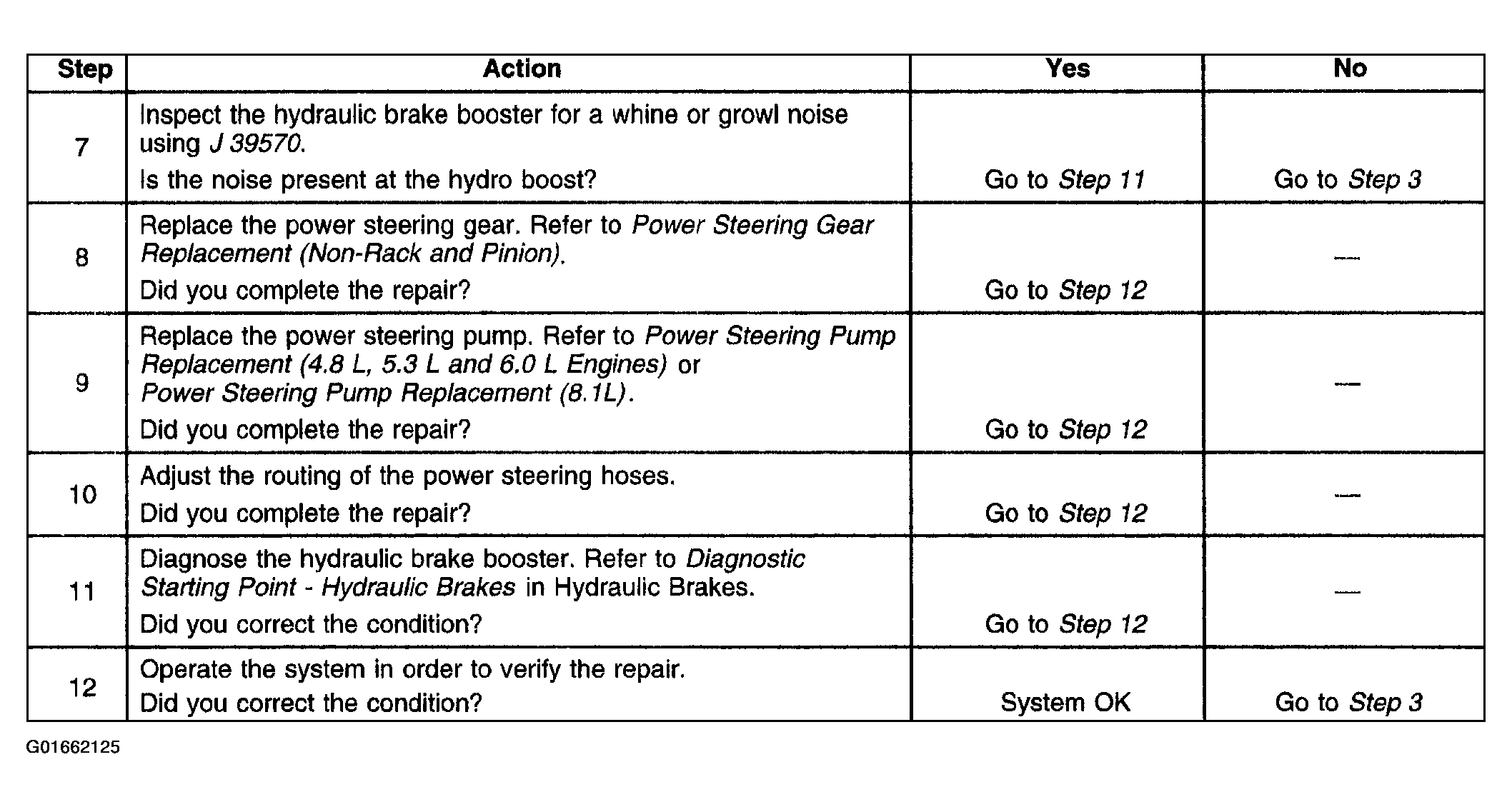

Fig 2: Identifying Whine Or Growl Noise From Power Steering System (With Hydraulic Brake Booster) Diagnostic Tables (2 Of 2)
G01662125Courtesy of GENERAL MOTORS CORP.
