Radio/Audio System Schematics

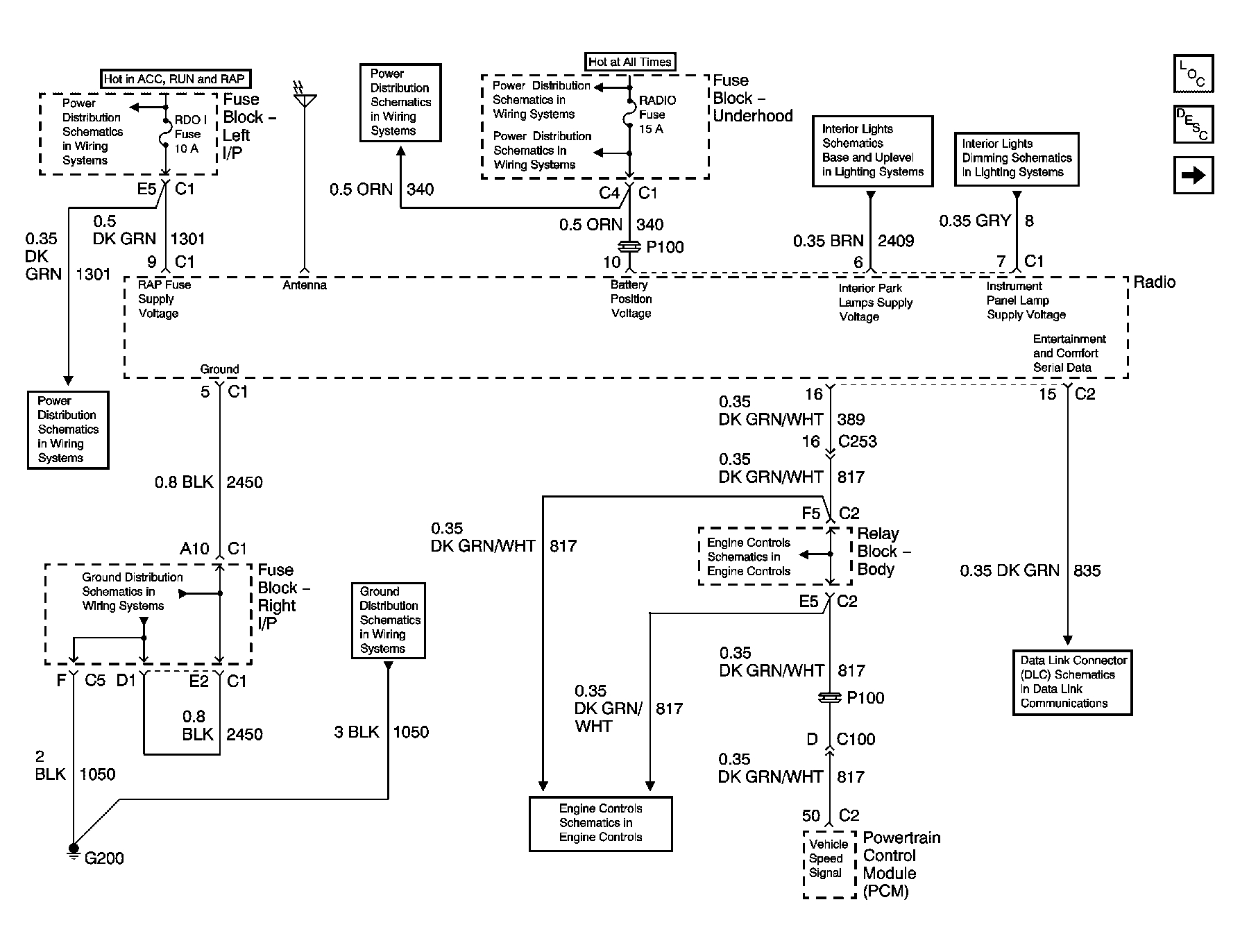

Fig 1: Power, Ground, and Subsystem References - Base Schematic

Courtesy of GENERAL MOTORS CORP.

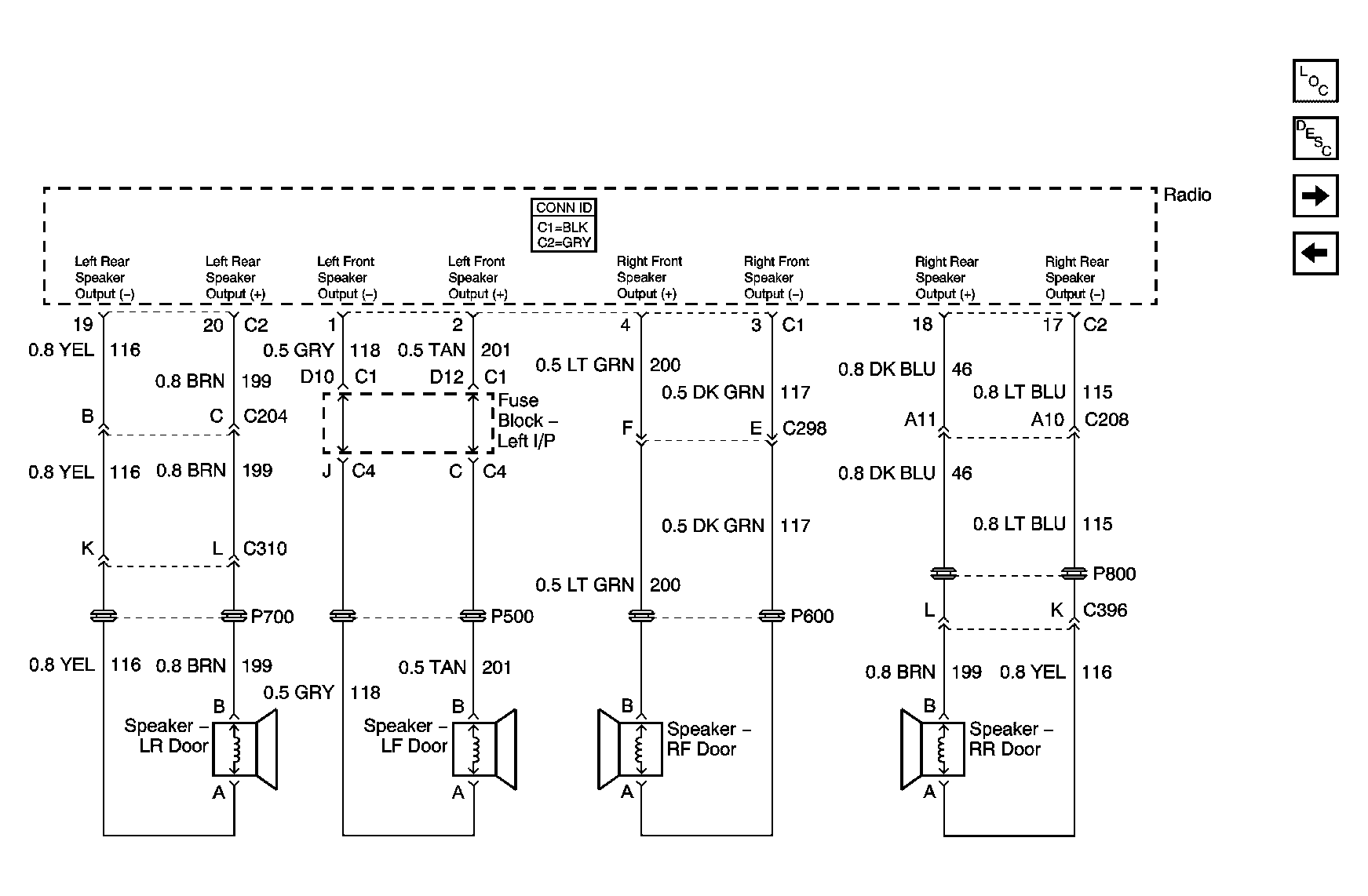

Fig 2: Speakers - Base Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Power & Ground - YE9 W/O Rear Seat Audio Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Amplifier Inputs & Controls & Subsystem References - YE9 W/O Rear Seat Audio Schematic

Courtesy of GENERAL MOTORS CORP.

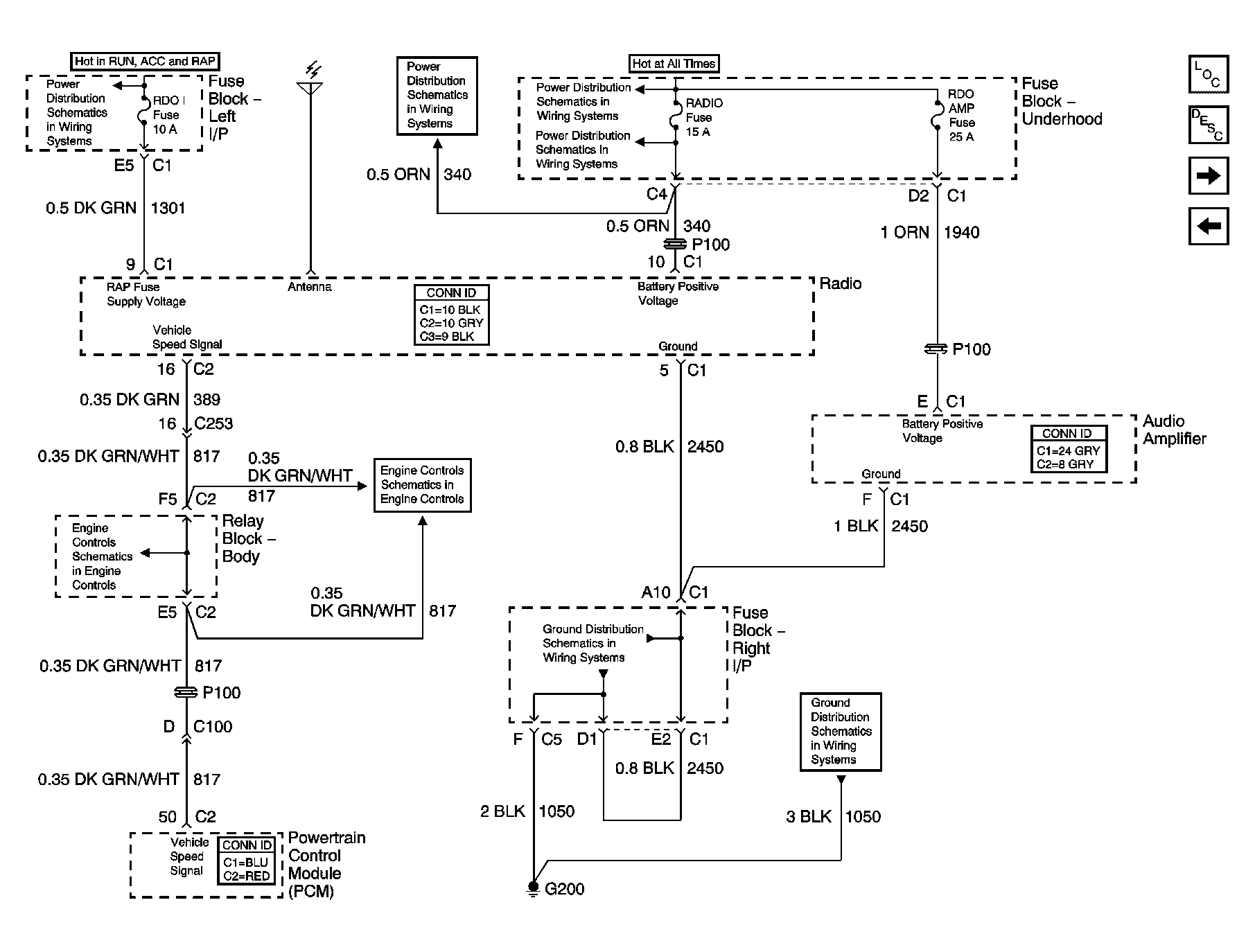

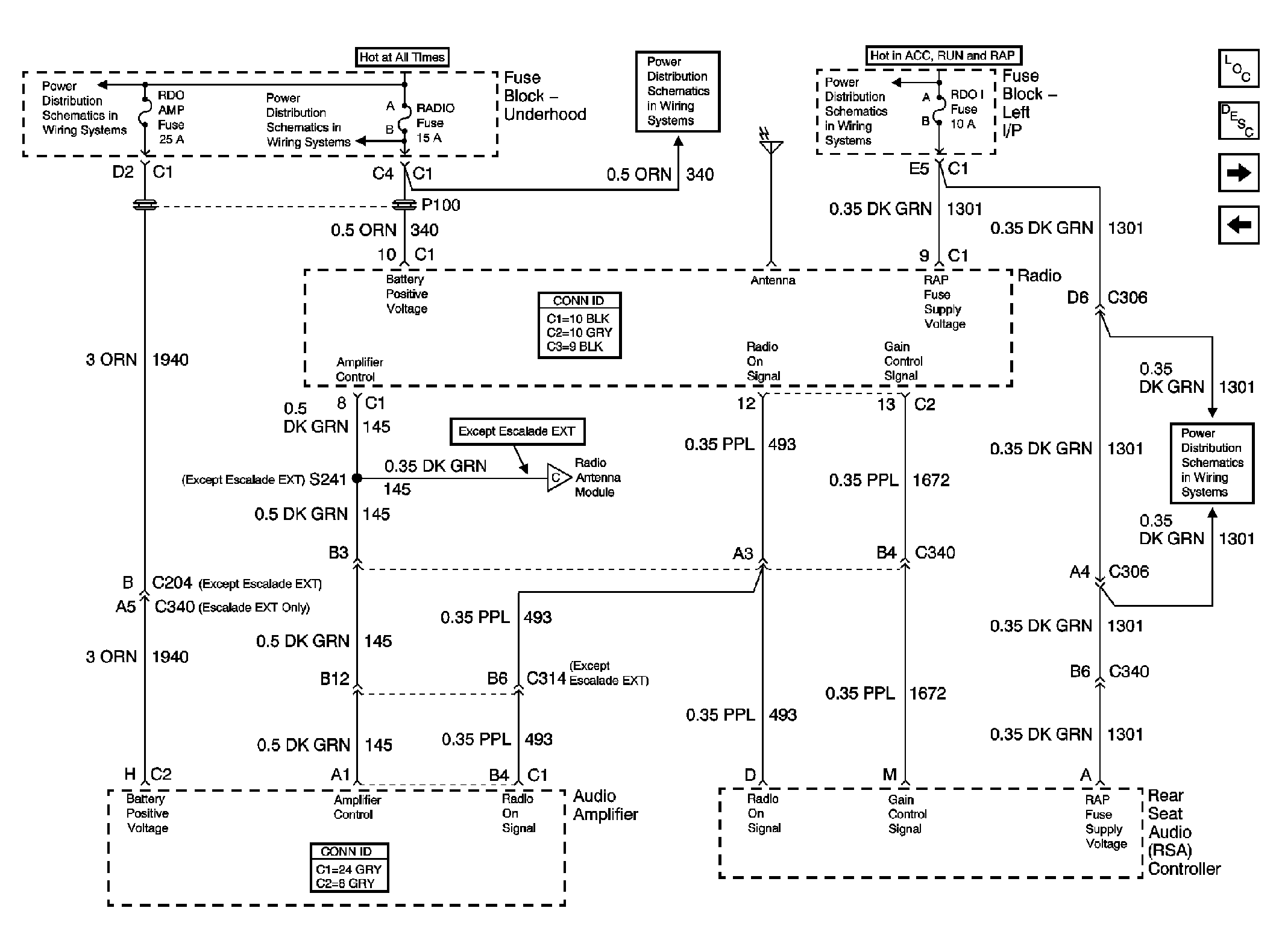

Fig 5: Power, Ground & Subsystem References - YE9 W/Rear Seat Audio Schematic

Courtesy of GENERAL MOTORS CORP.

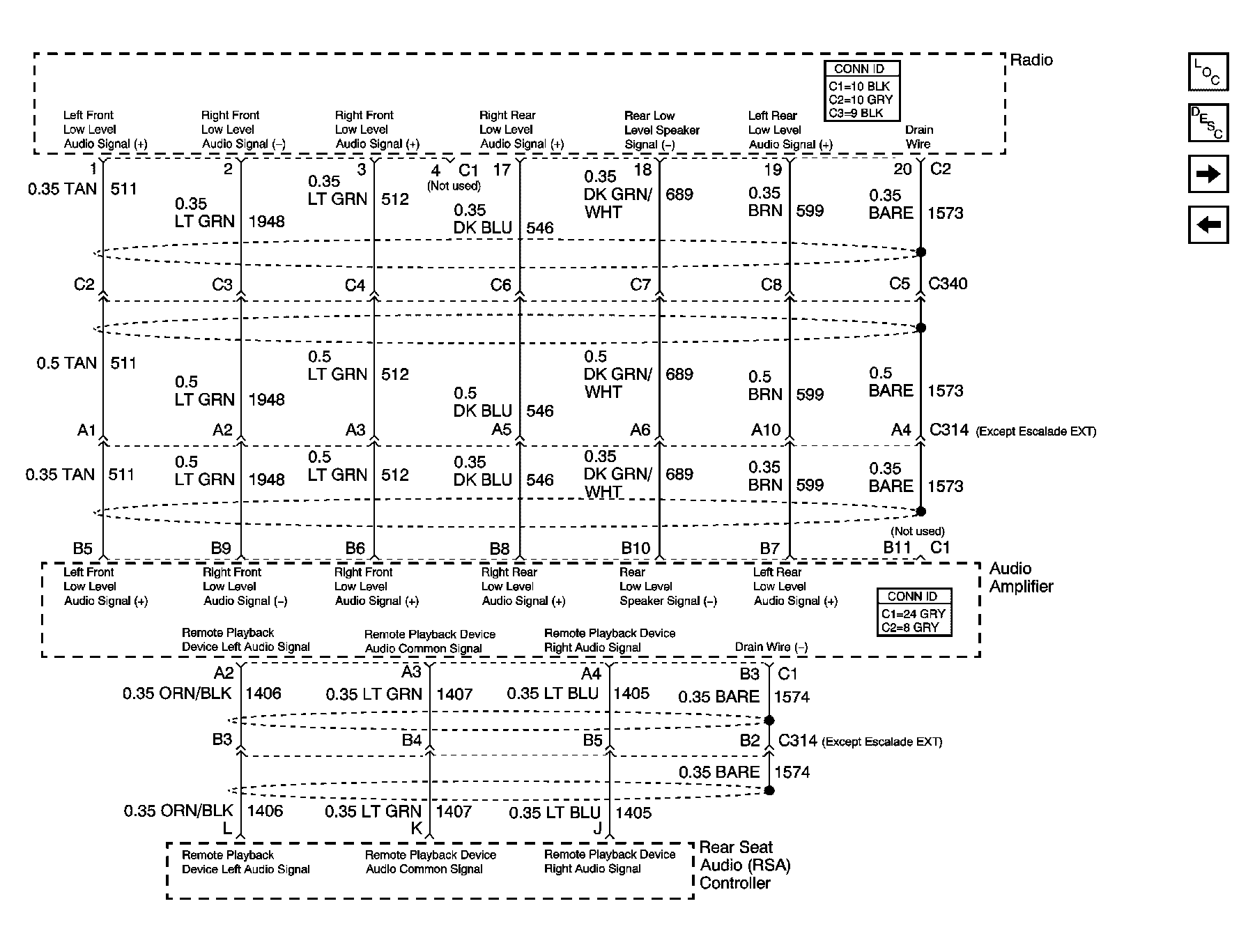

Fig 6: Amplifier & Rear Seat Audio Inputs & Controls - YE9 W/Rear Seat Audio Schematic

Courtesy of GENERAL MOTORS CORP.

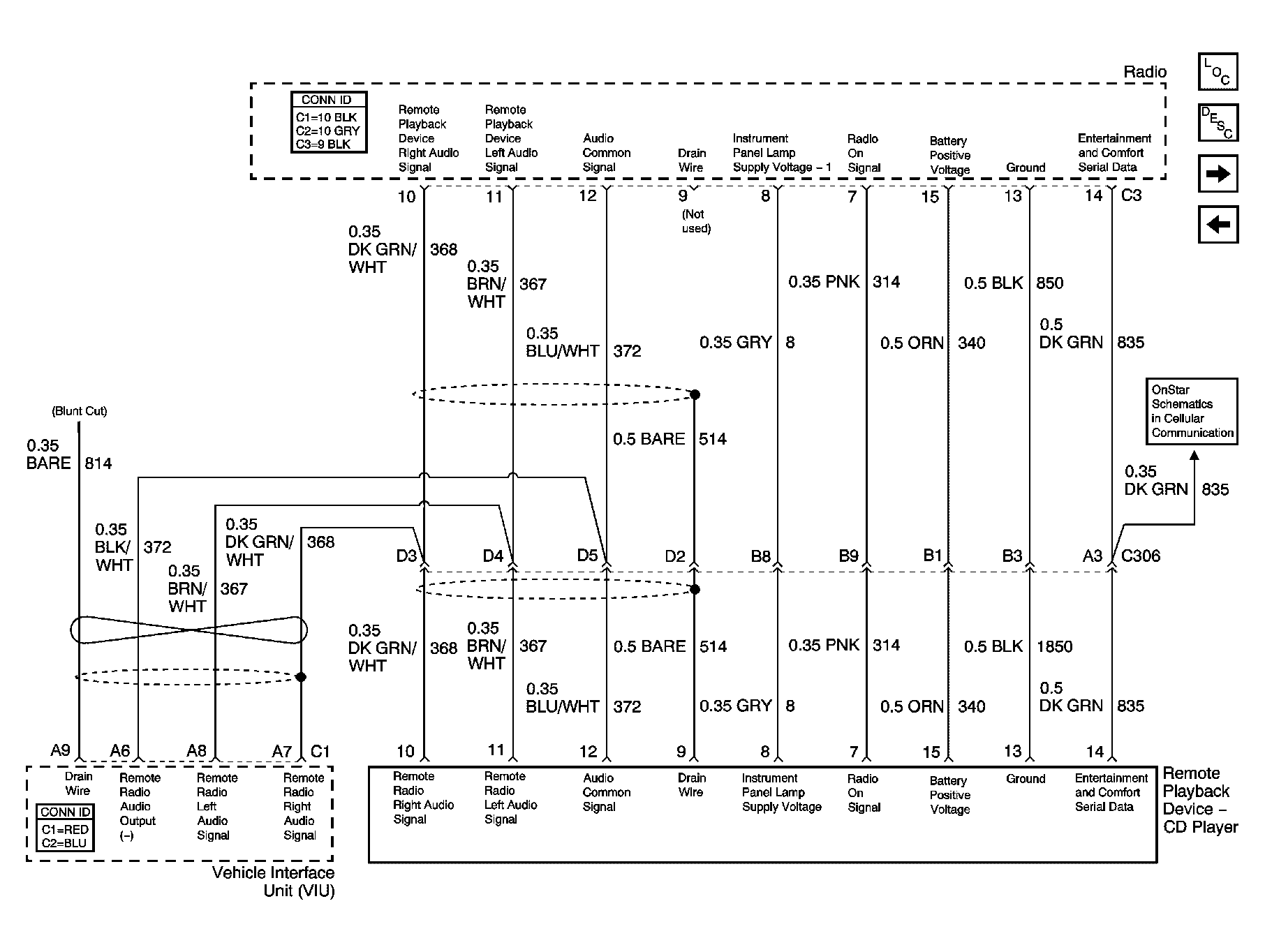

Fig 7: Remote Playback Device - CD Player - YE9 Schematic

Courtesy of GENERAL MOTORS CORP.

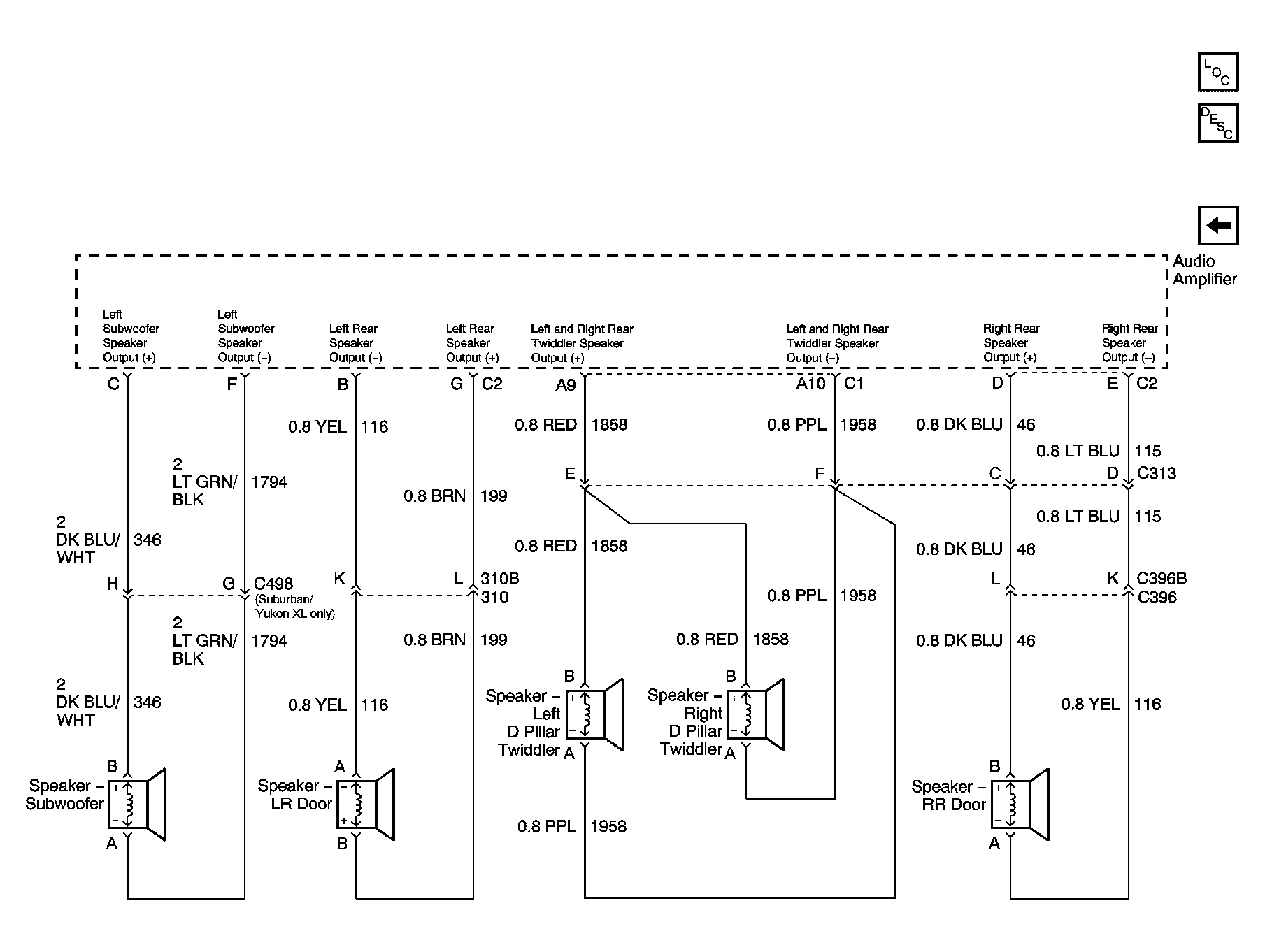

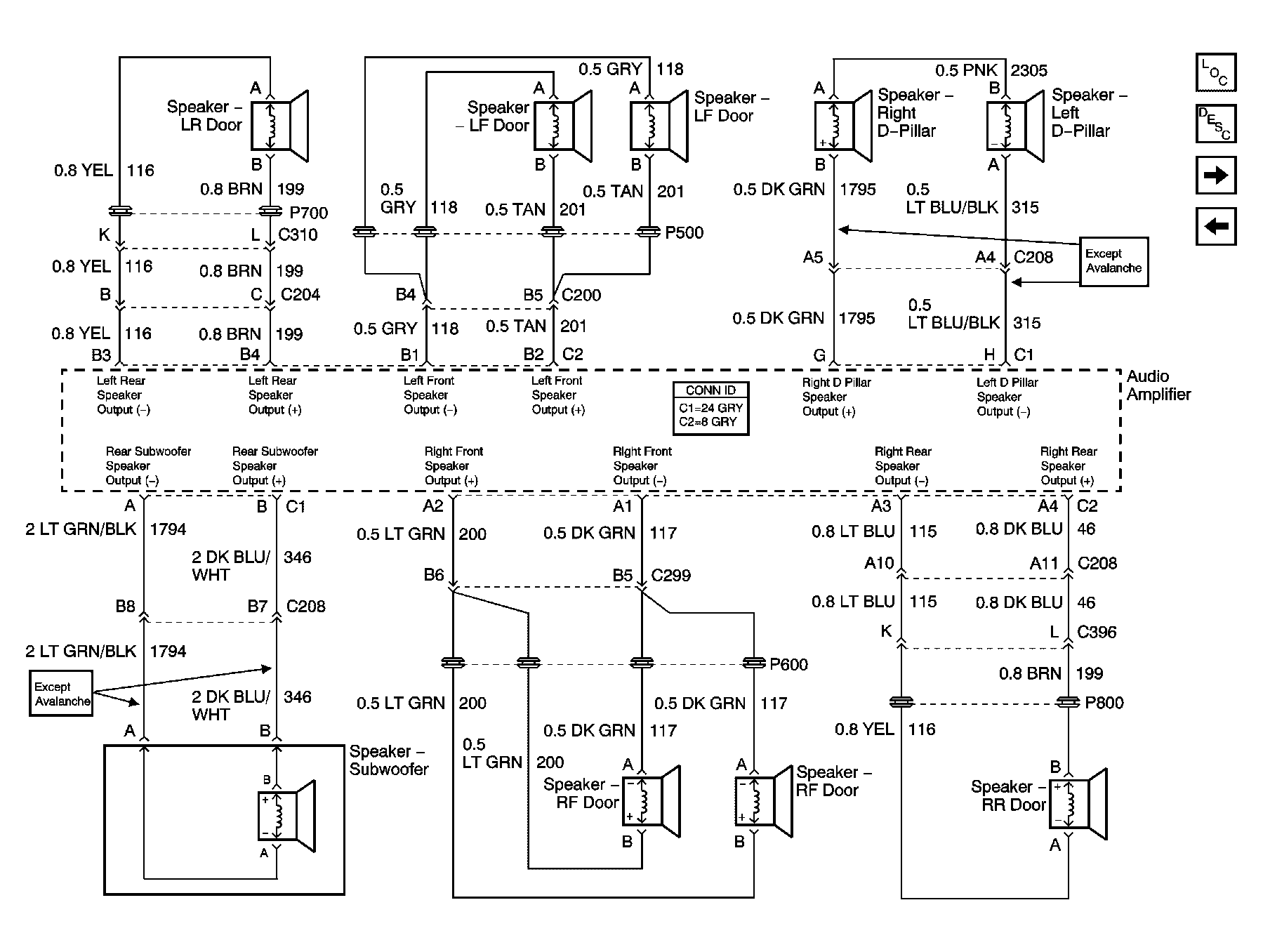

Fig 8: Speakers - YE9 Schematic

Courtesy of GENERAL MOTORS CORP.

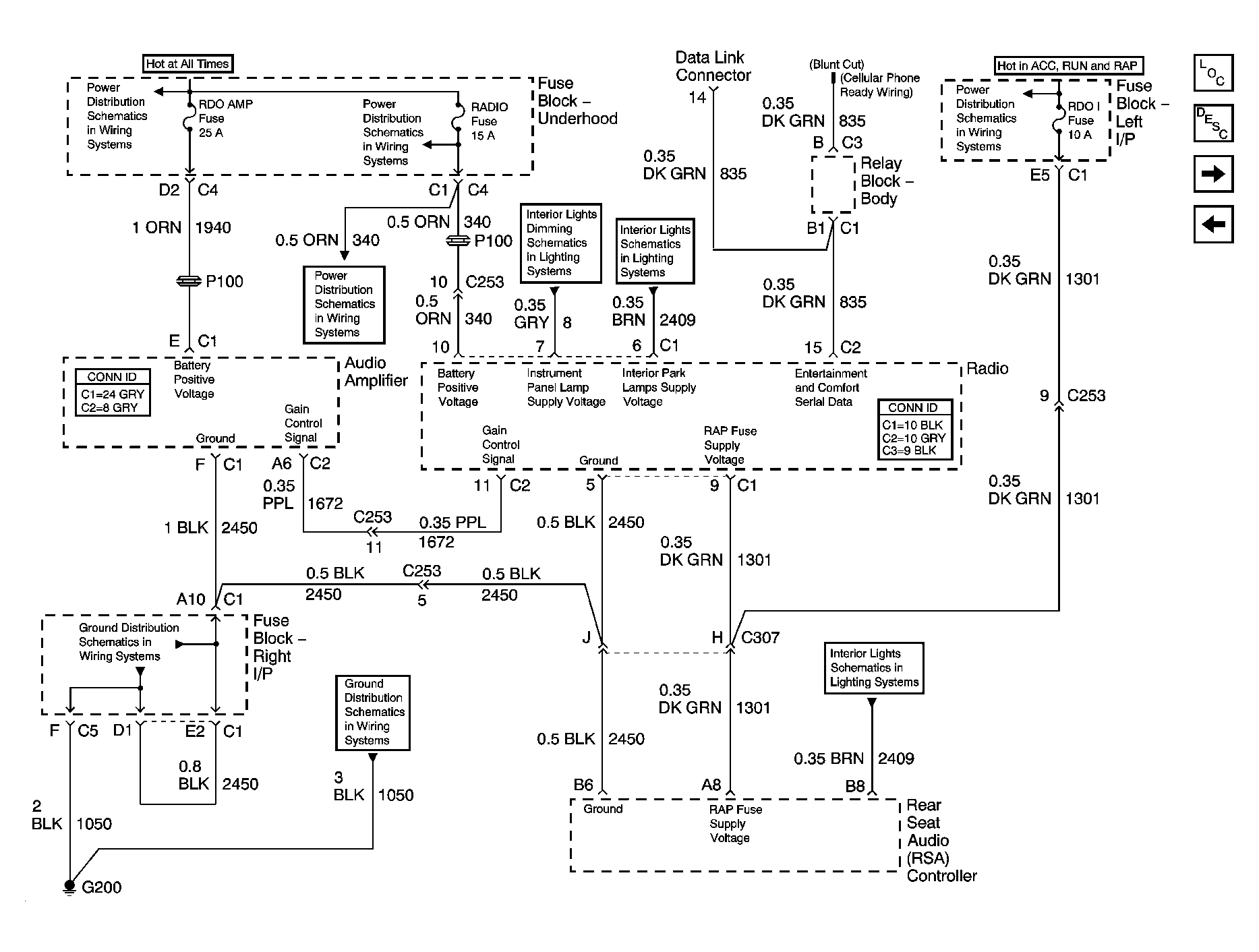

Fig 9: Power & Control Signals - Y91 Schematic

Courtesy of GENERAL MOTORS CORP.

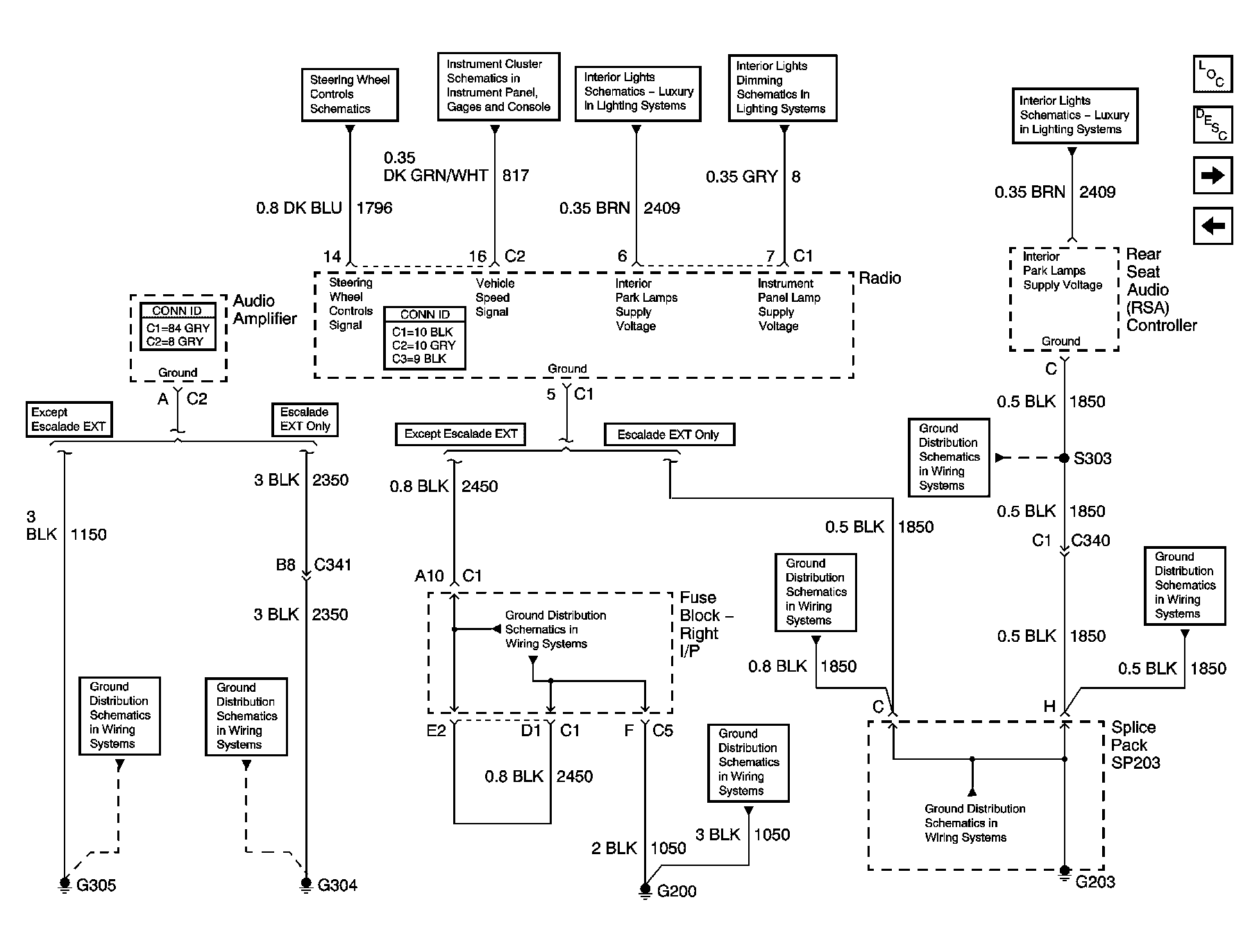

Fig 10: Ground & Subsystem References - Y91 Schematic

Courtesy of GENERAL MOTORS CORP.

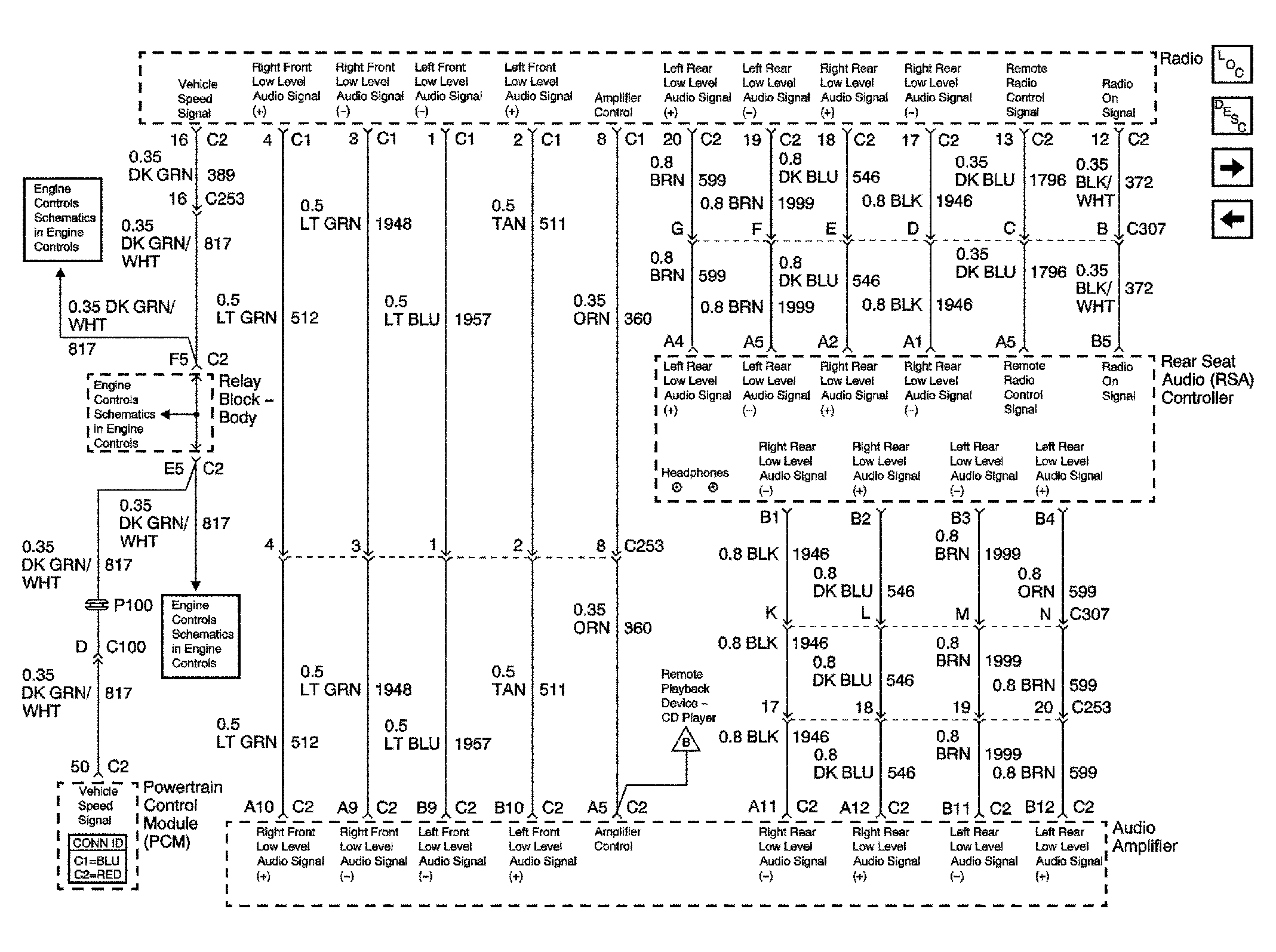

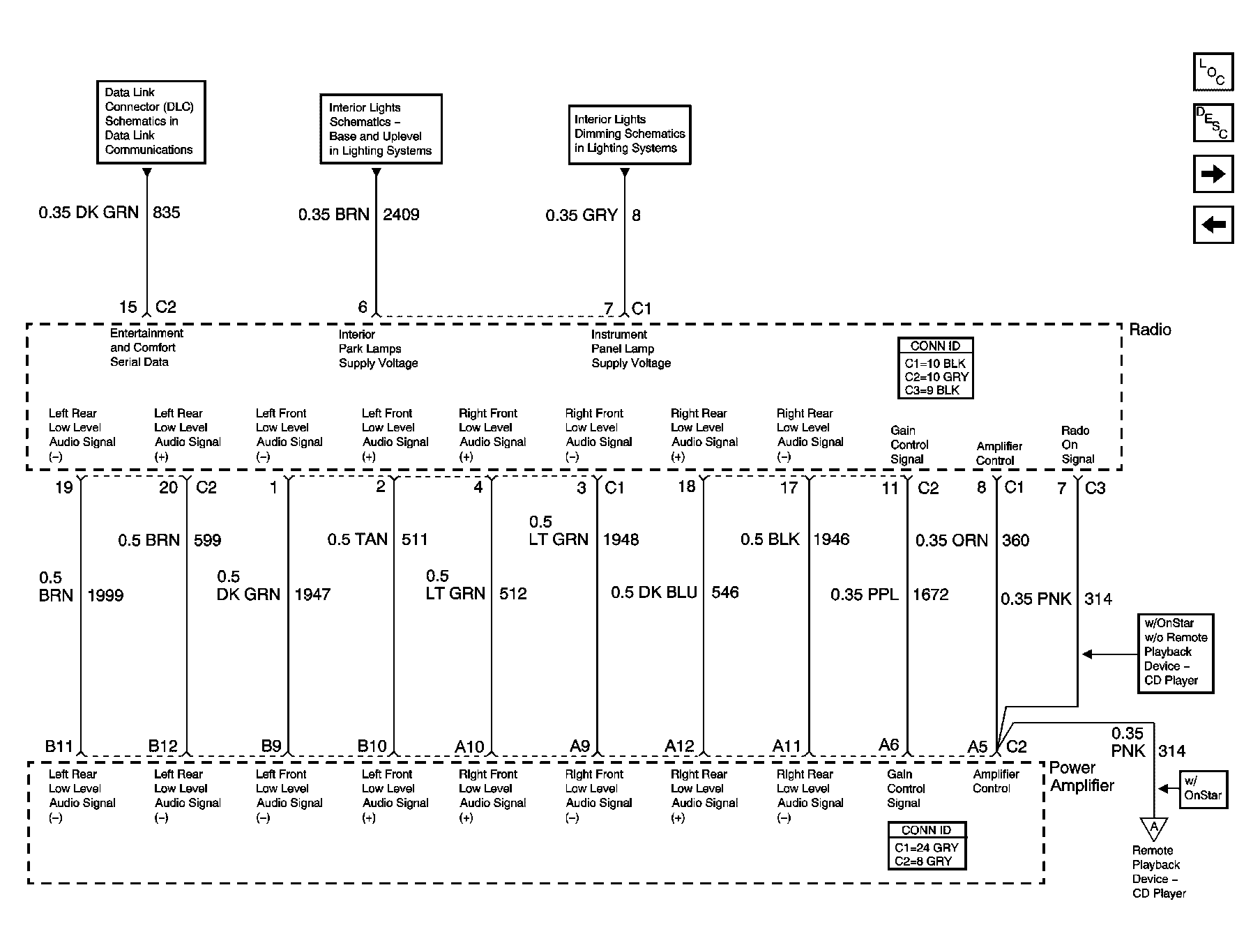

Fig 11: Amplifier & Rear Seat Audio Inputs - Y91 Schematic

Courtesy of GENERAL MOTORS CORP.

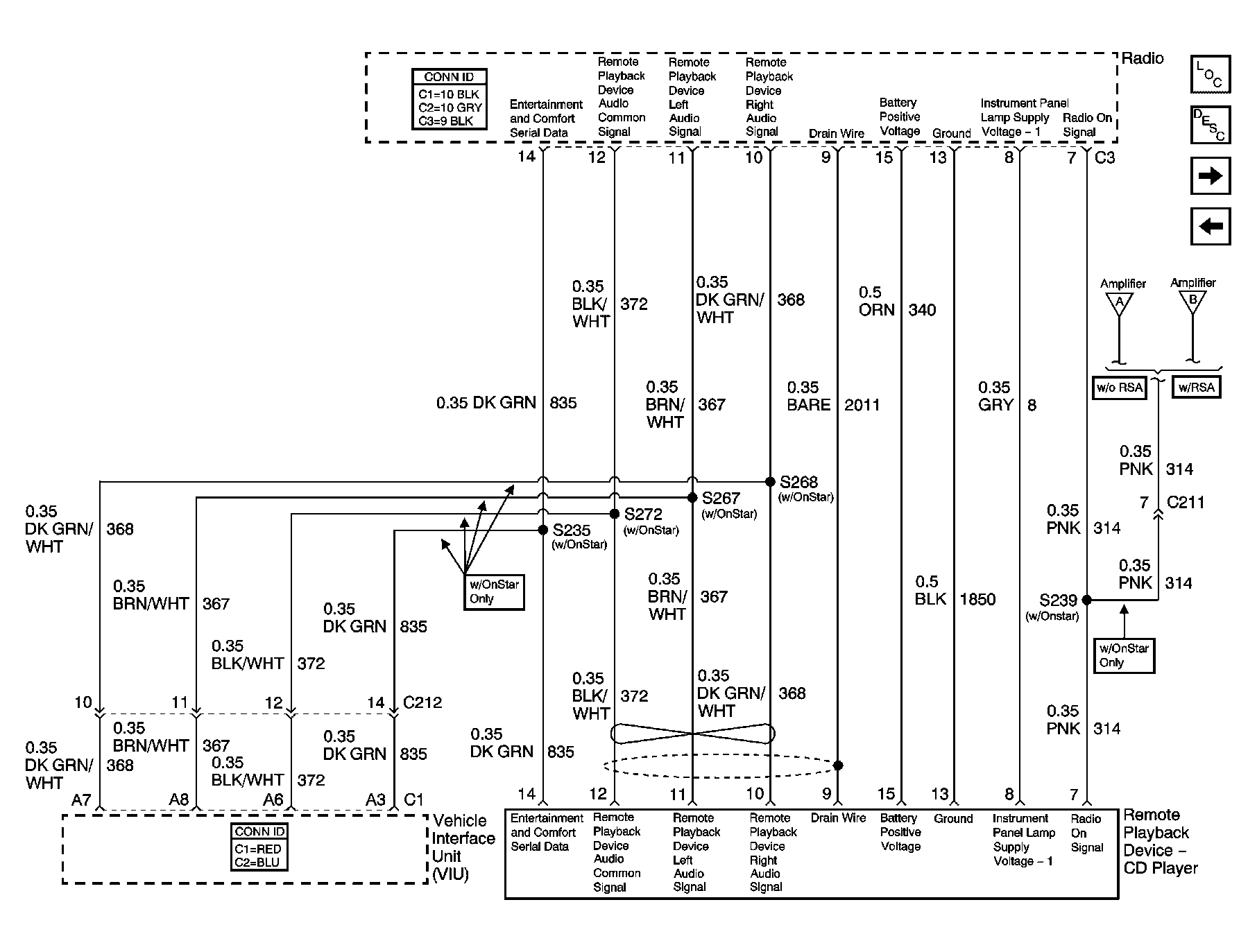

Fig 12: Remote Playback Device - CD Player - Y91 Schematic

Courtesy of GENERAL MOTORS CORP.

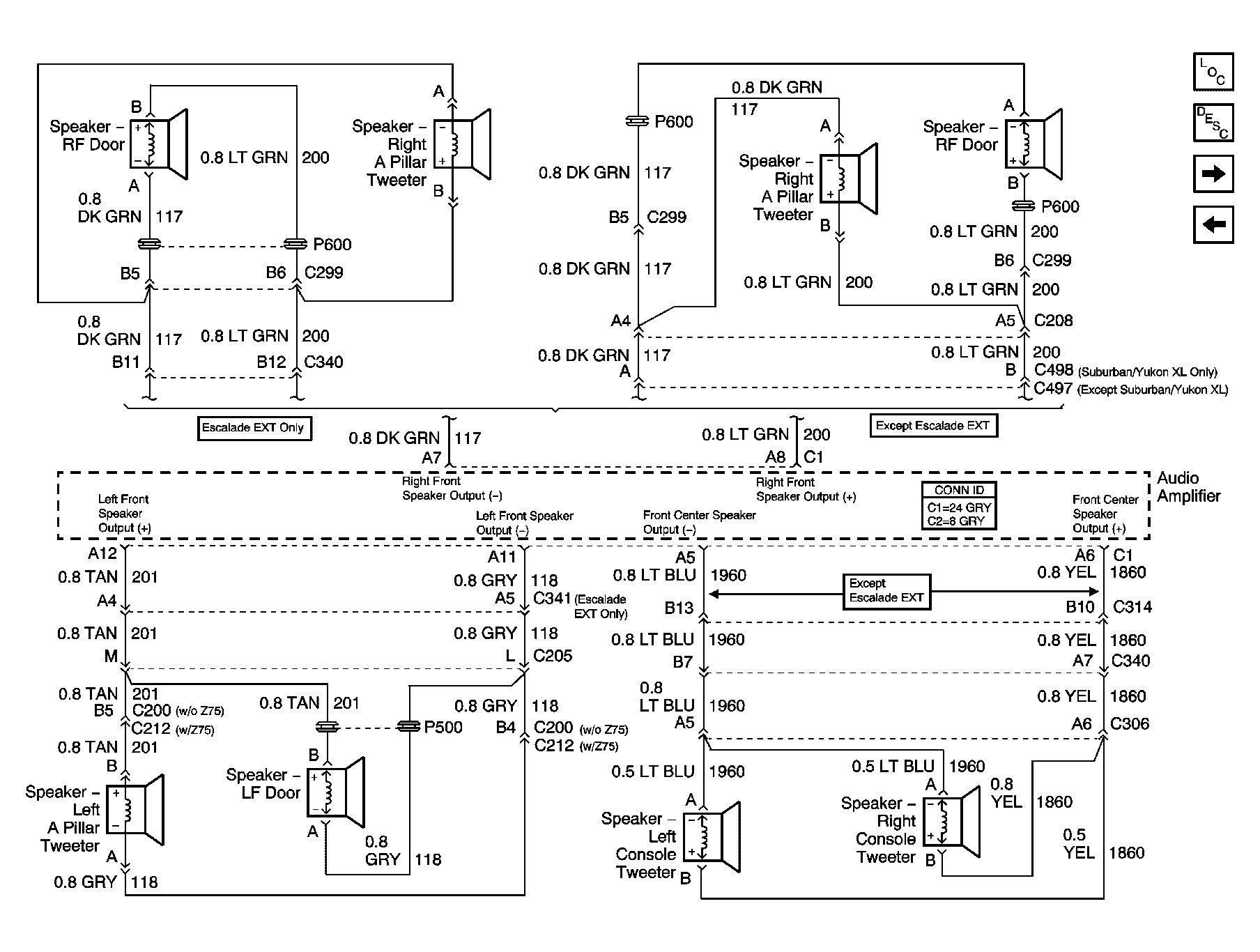

Fig 13: Front Speakers - Y91 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 14: Rear Speakers - Y91 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 15: Antenna Modules - W/Y91 Except Escalade EXT Schematic

Courtesy of GENERAL MOTORS CORP.
