Test Description

The number below refers to the step number on the diagnostic table.

  1. 4.  This step tests for proper operation of the low traction indicator circuitry.

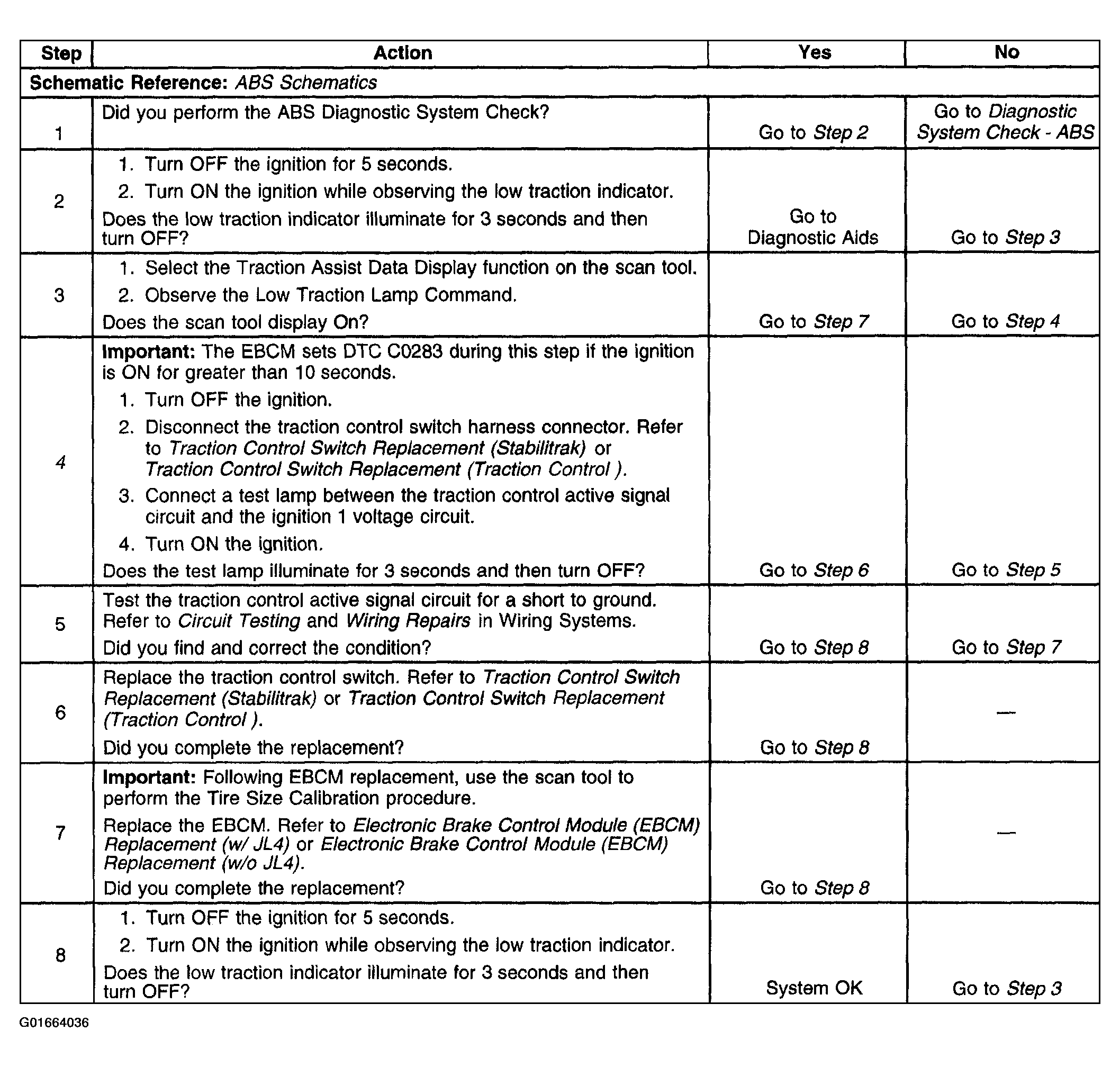

Fig 1: Low Traction Indicator Always On (Except Escalade)
G01664036Courtesy of GENERAL MOTORS CORP.
