Test Description

The number below refers to the step number on the diagnostic table.

1. 3.  This step tests if the IPC is able to turn OFF the ABS indicator.

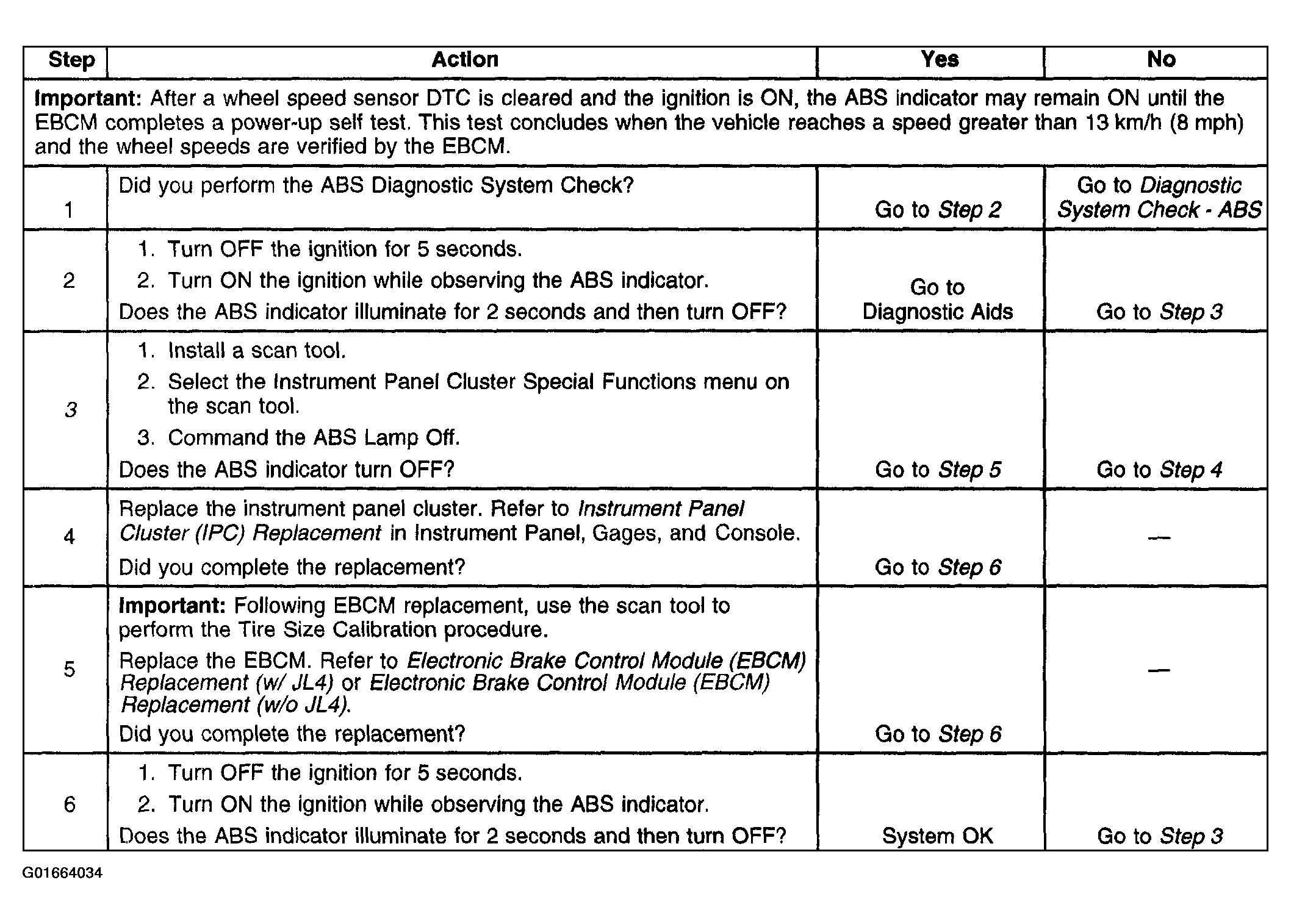

Fig 1: ABS Indicator Always On

Courtesy of GENERAL MOTORS CORP.
