Removal Procedure

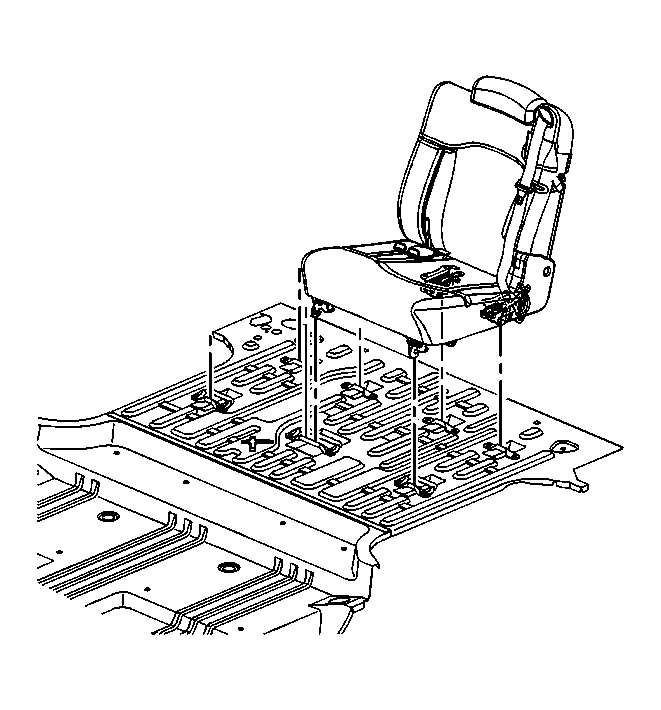

    Fig 1: Rear Seat (50/50 Split 2nd Rear)
    GM660315Courtesy of GENERAL MOTORS CORP.
  1. Pull up on the handle at the rear of the seat.
  2. Lift the seat up and out of the floor rails.
  3. Remove the seat from the vehicle.
