Test Description

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Tests for a short or an open in the strut actuator coil.
  2. 3. Tests for voltage at the coil side of the strut actuator.

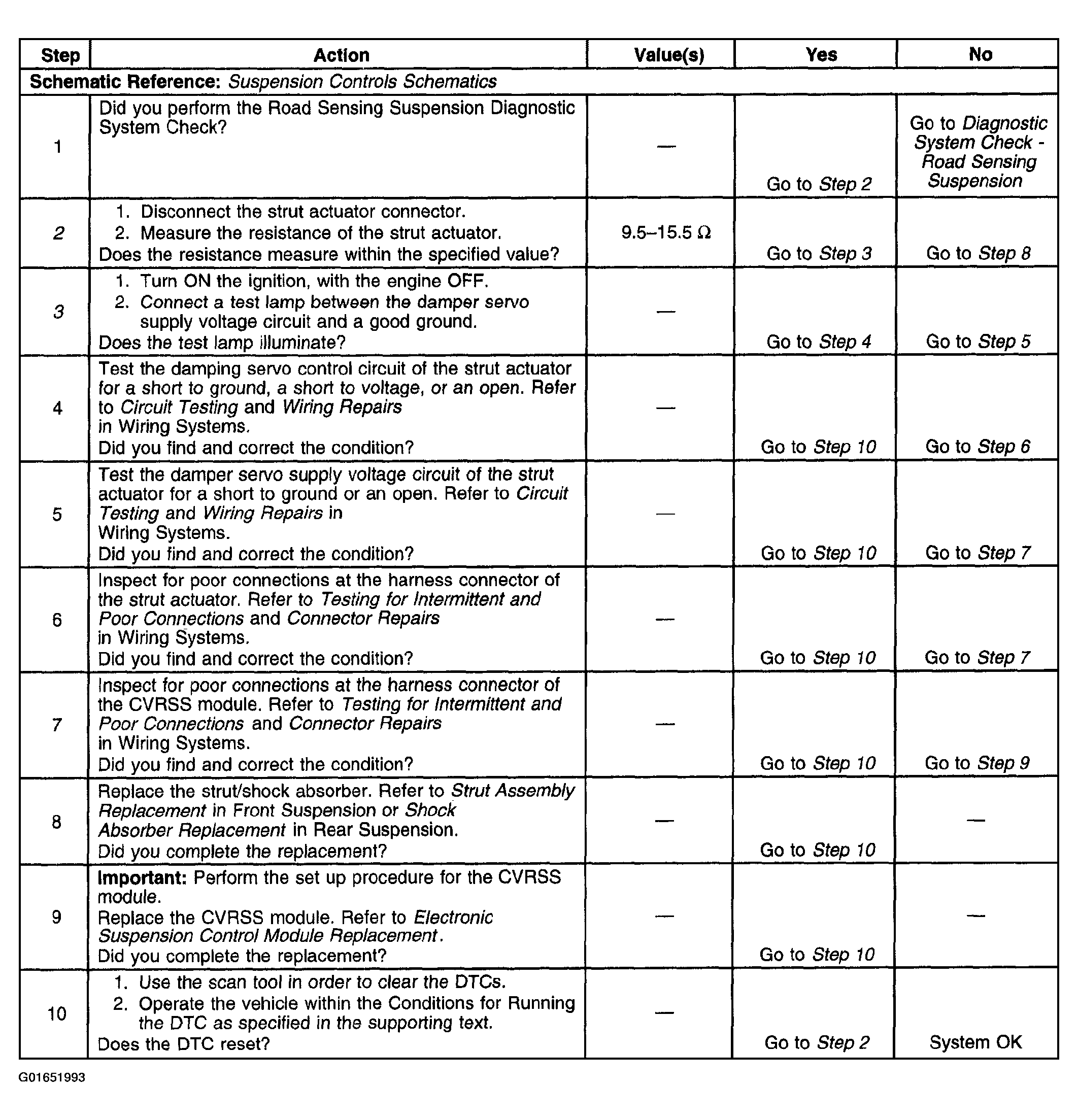

    Fig 1: DTC C0577, C0578, C0579, C0582, C0583, C0584, C0587, C0588, C0589, C0592, C0593 or C0594
    G01651993Courtesy of GENERAL MOTORS CORP.
