Removal Procedure

Important:  Replace the filler trim if any damage exists. Do not repair the filler trim.

1. Remove the left sound insulator from the vehicle. Refer to Closeout/Insulator Panel Replacement - Left .
2. Grasp the trim at the front edges and the rear edges.
3. Pull the filler trim downward (3).

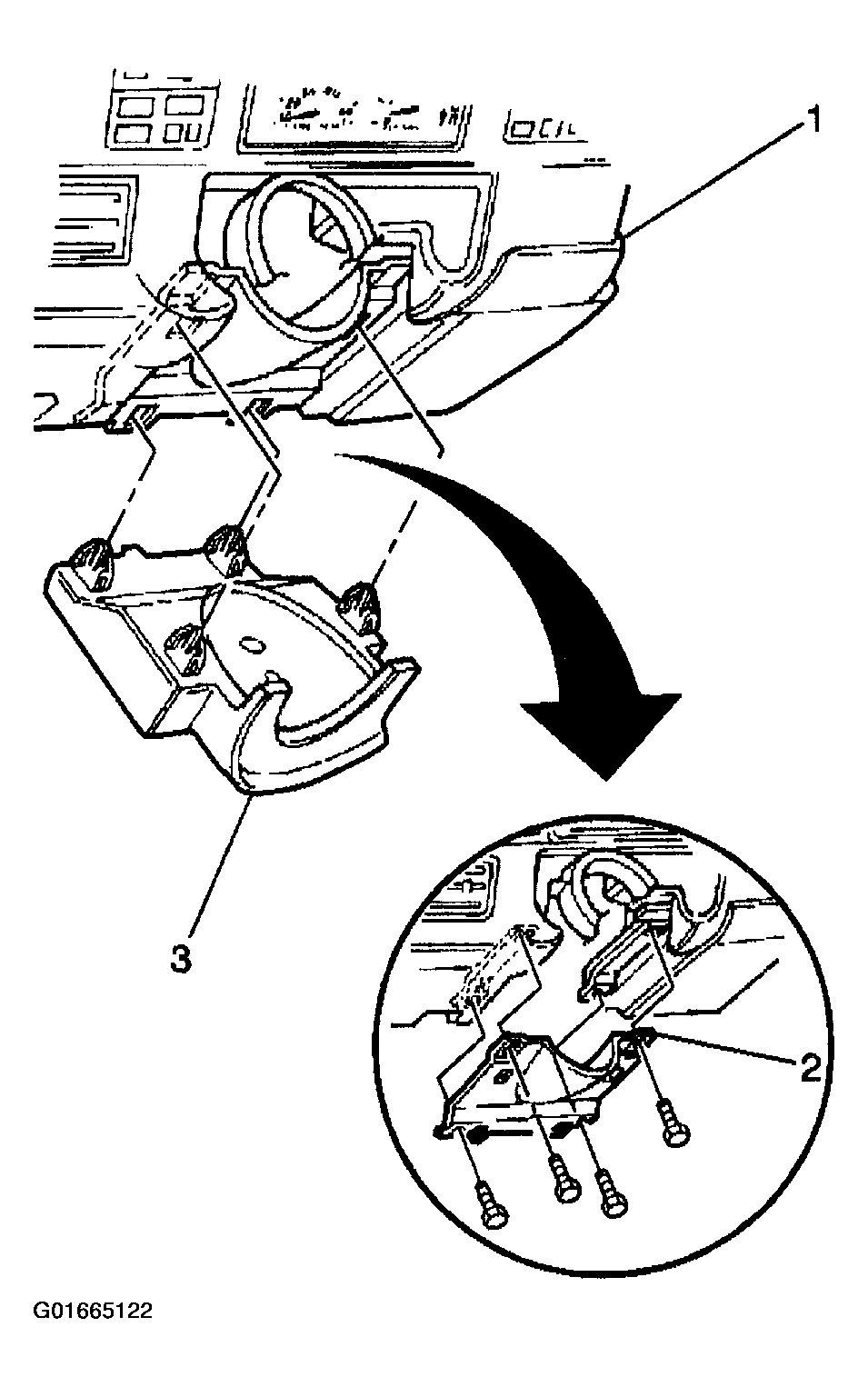

   Fig 1: Exploded View of Filler Trim

   Courtesy of GENERAL MOTORS CORP.
