Removal Procedure

Remove the console compartment. Refer to Console Storage Bin Replacement .
Remove the 3 fasteners (1) retaining the lock assembly to the console.
Remove the lock assembly.

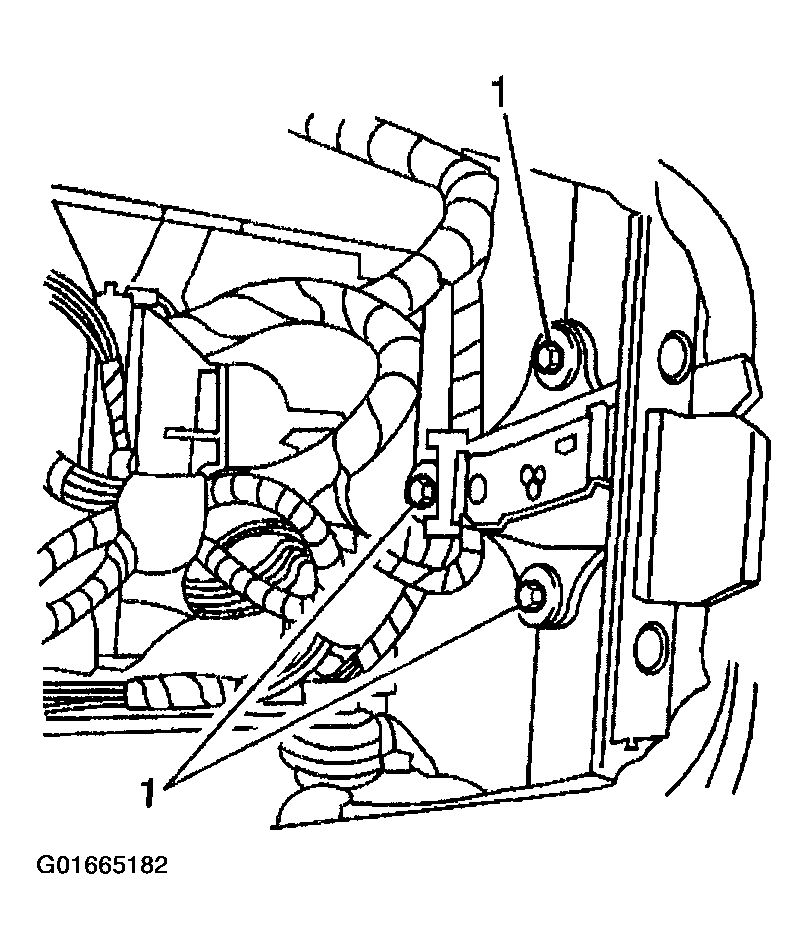

Fig 1: Identifying Lock Assembly to Console Fasteners
Courtesy of GENERAL MOTORS CORP.
Push down on the silver tab (1) on the lock cylinder.

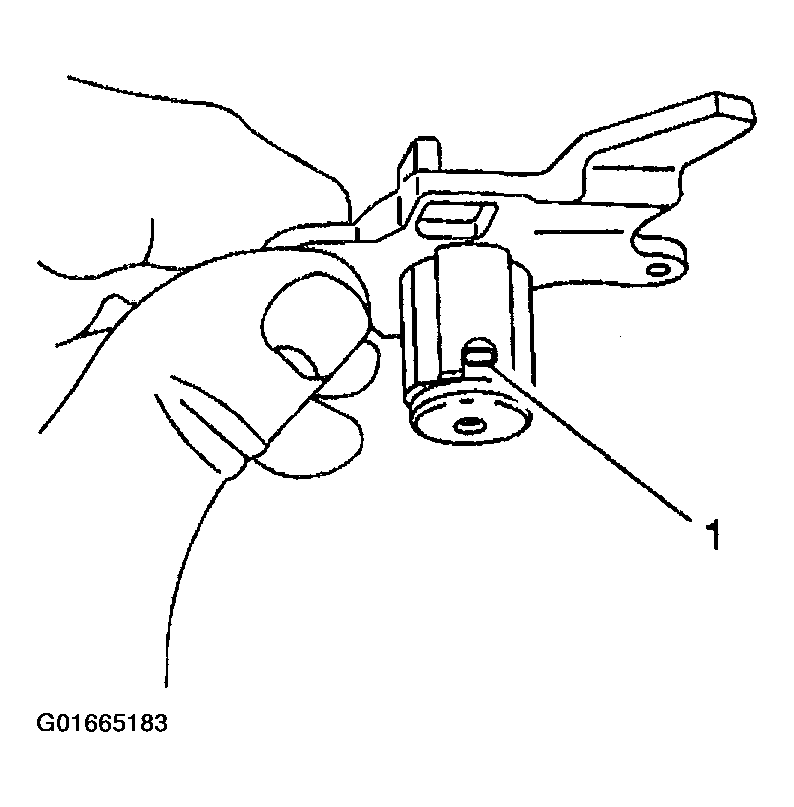

Fig 2: Identifying Lock Cylinder Silver Tab
Courtesy of GENERAL MOTORS CORP.
Insert the key.
Turn the lock cylinder.
Remove the lock cylinder (2) from the lock assembly (1).

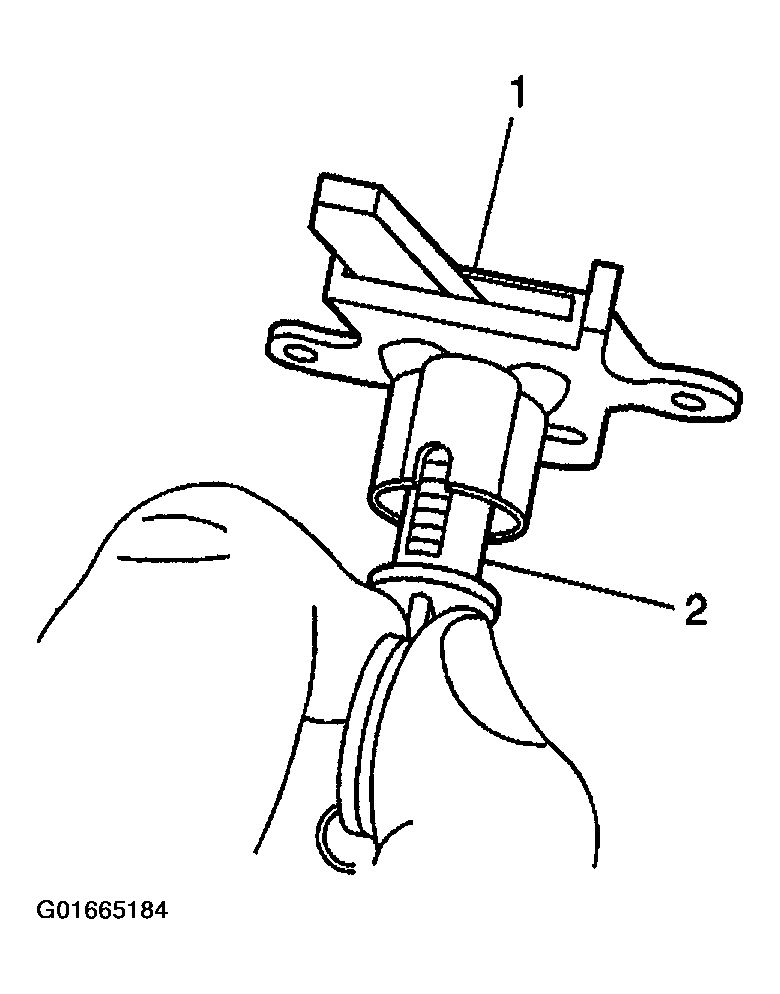

Fig 3: Identifying Lock Cylinder & Lock Assembly
Courtesy of GENERAL MOTORS CORP.
