Driver Information Center (DIC) Switch(es) Inoperative

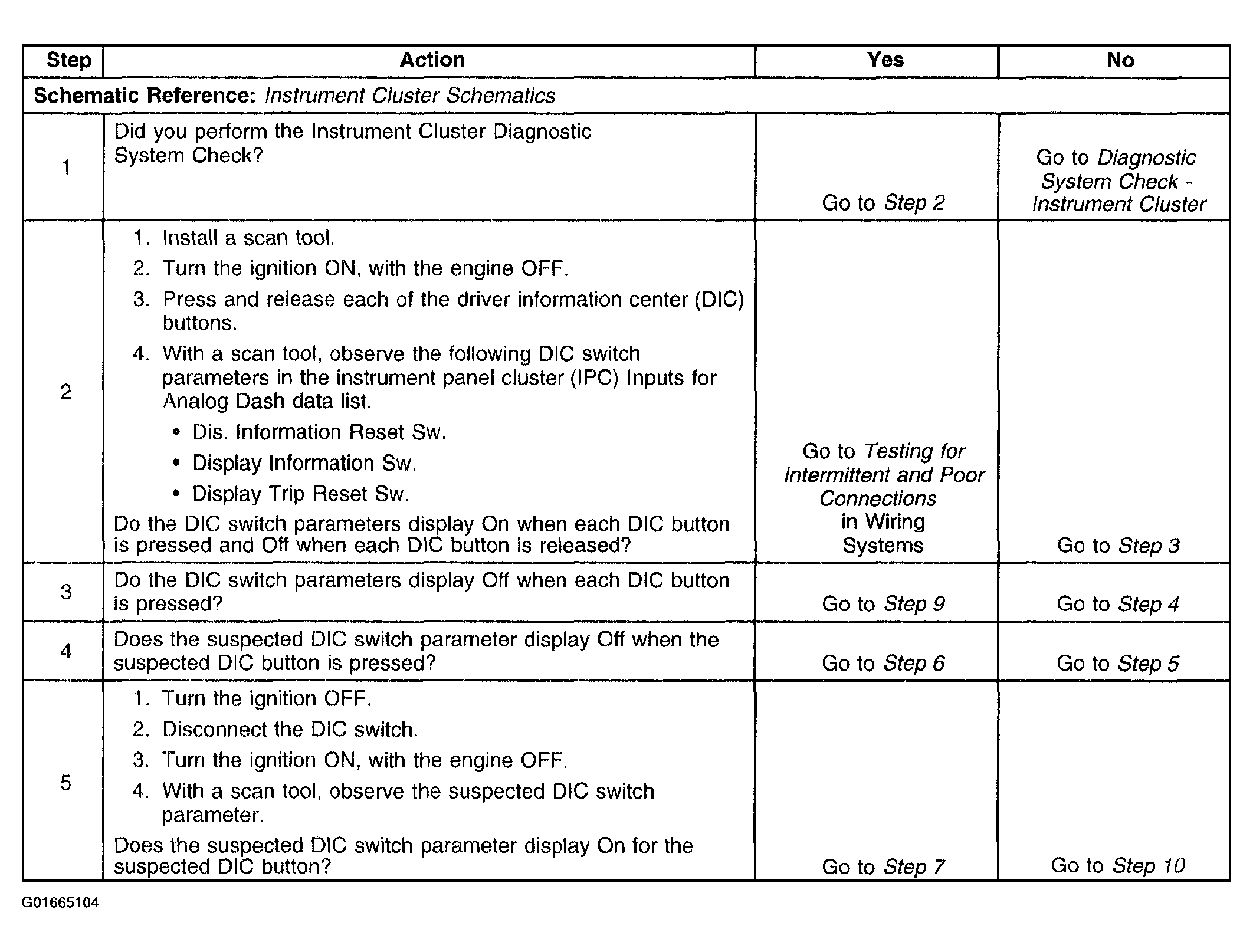

Fig 1: Driver Information Center (DIC) Switch(es) Inoperative (1 of 2)
G01665104Courtesy of GENERAL MOTORS CORP.

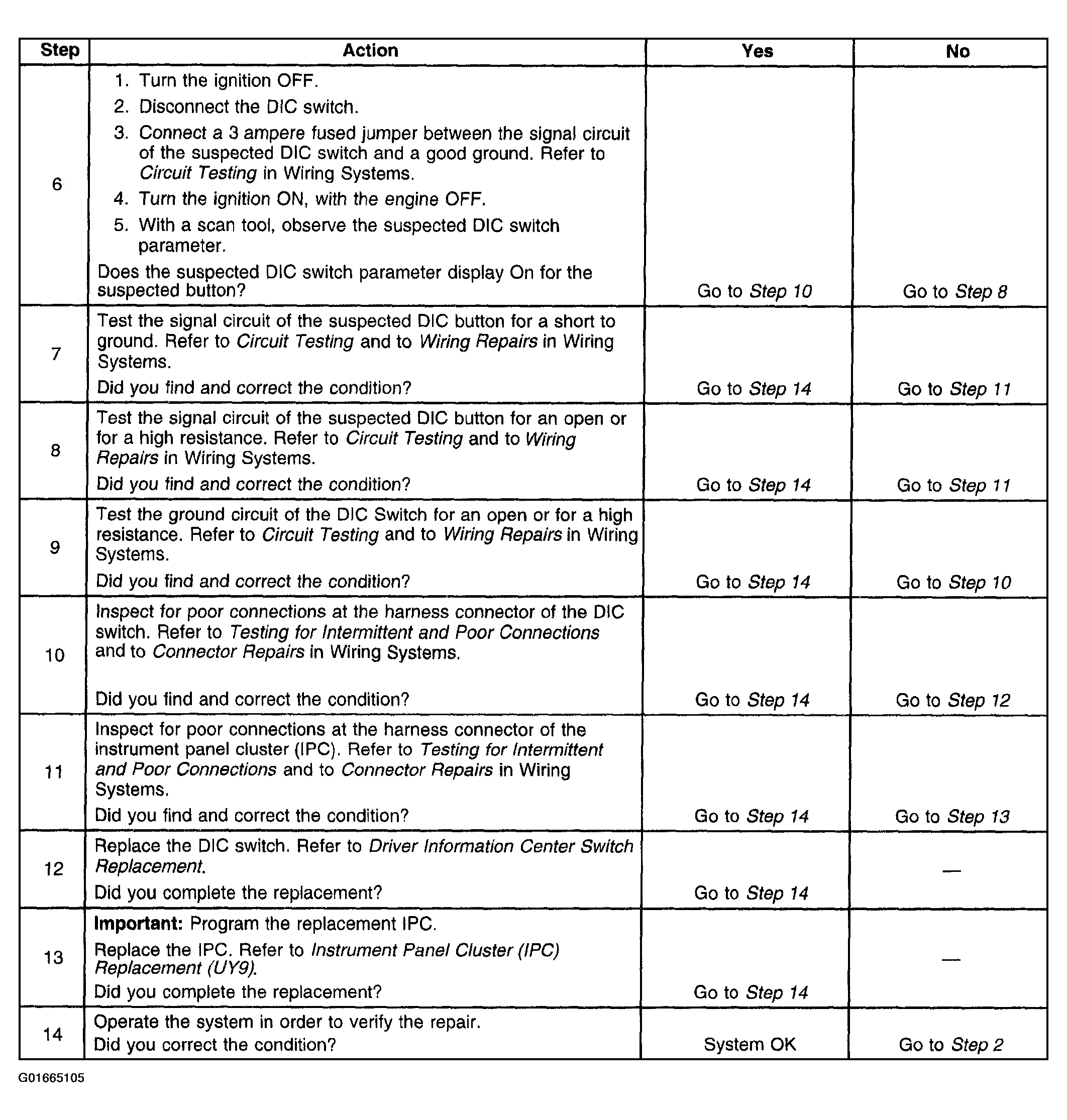

Fig 2: Driver Information Center (DIC) Switch(es) Inoperative (2 of 2)
G01665105Courtesy of GENERAL MOTORS CORP.
