Description & Operation

NOTE: For trim height specifications, diagnostic information and procedures, see SUSPENSION - GENERAL DIAGNOSIS article.

Independent rear suspension uses coil springs to support vehicle weight. See Fig 1. Hub and bearing assembly on knuckle is a sealed unit. If faulty, entire assembly must be replaced. Suspension support is a subframe that supports all other suspension components. Entire suspension support can be removed if necessary.

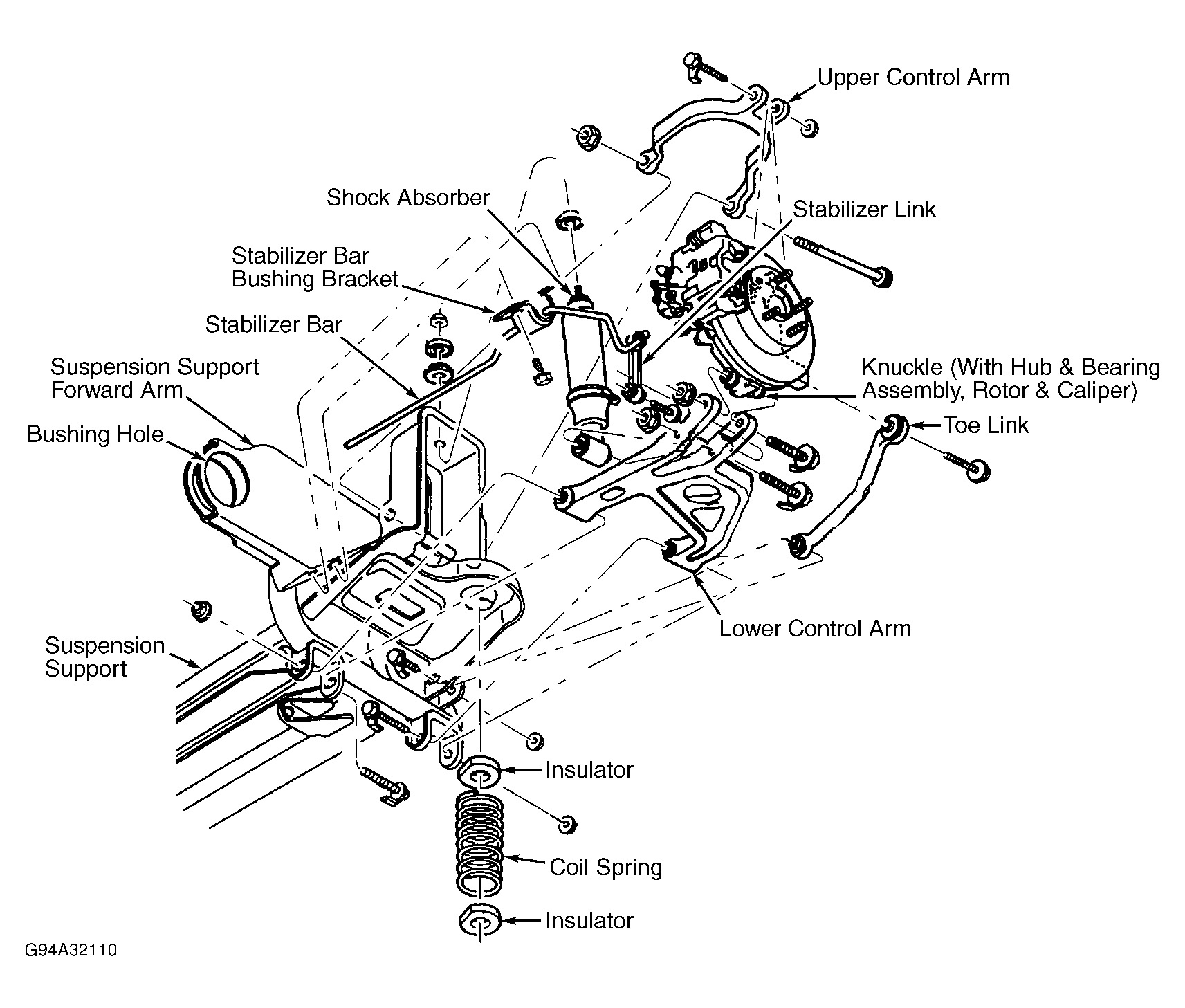

Fig 1: Exploded View Of Rear Suspension

Courtesy of GENERAL MOTORS CORP.
