Instrument Cluster Schematics

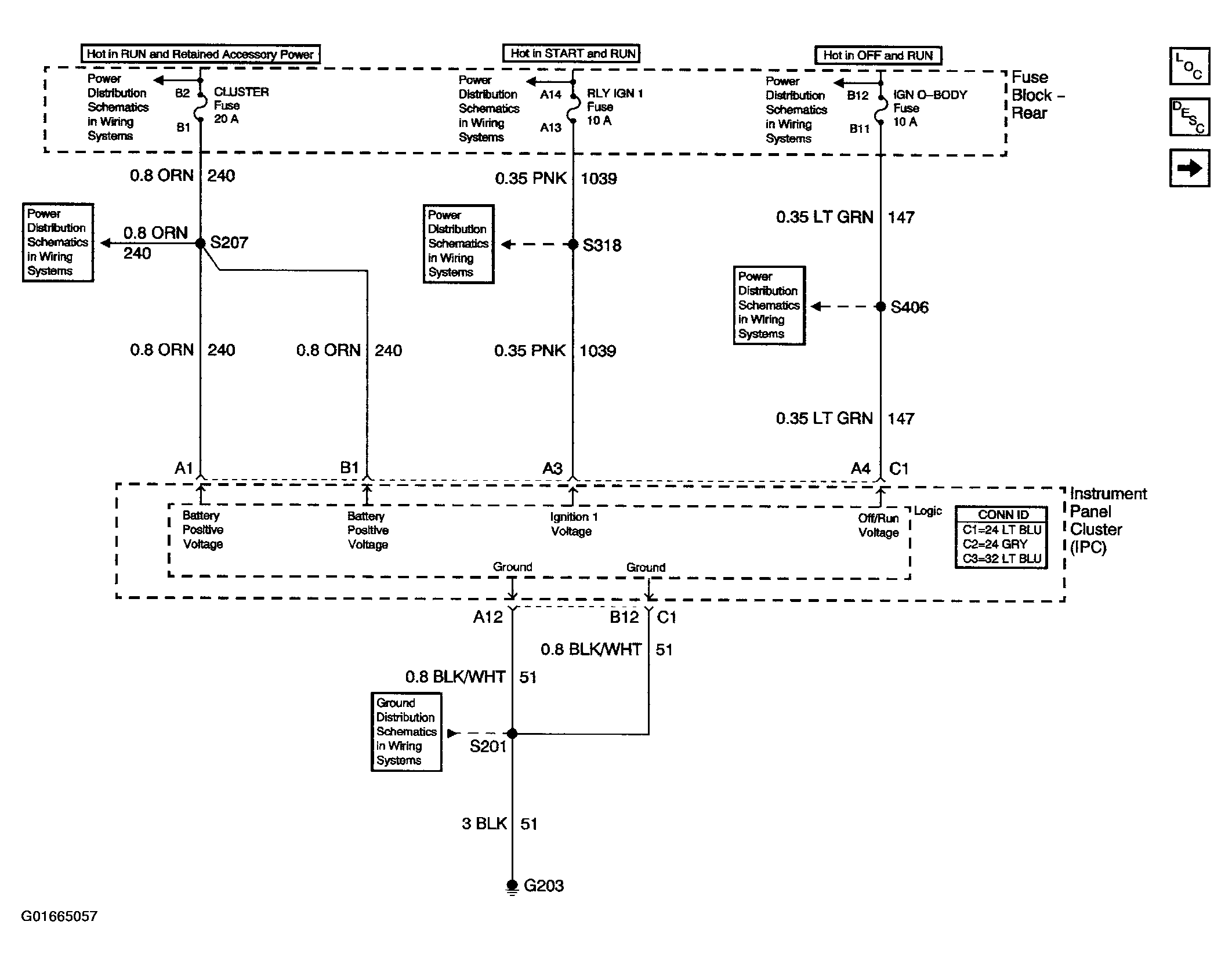

Fig 1: Instrument Cluster Schematics (Powers and Grounds)

Courtesy of GENERAL MOTORS CORP.

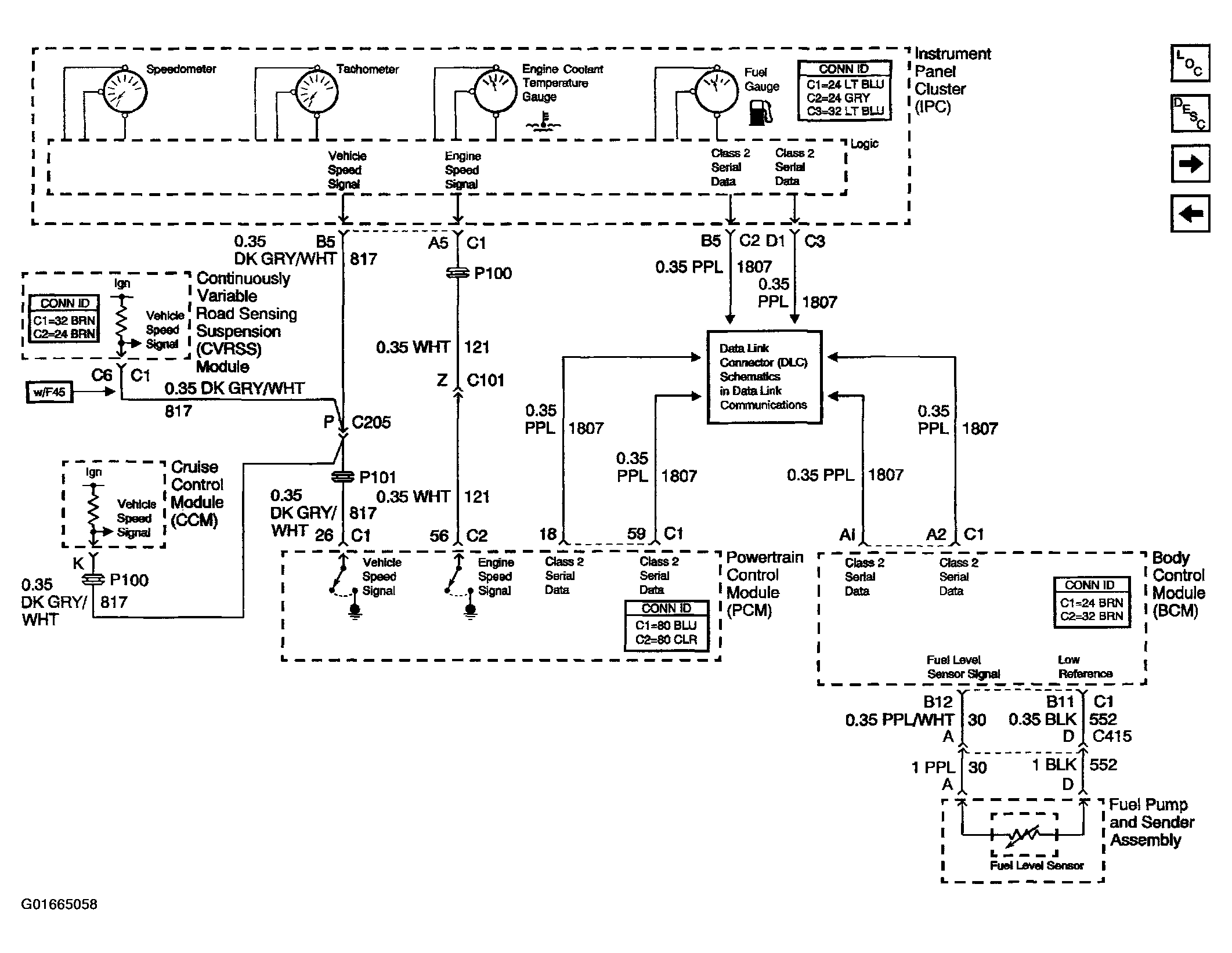

Fig 2: Instrument Cluster Schematics (Gages)

Courtesy of GENERAL MOTORS CORP.

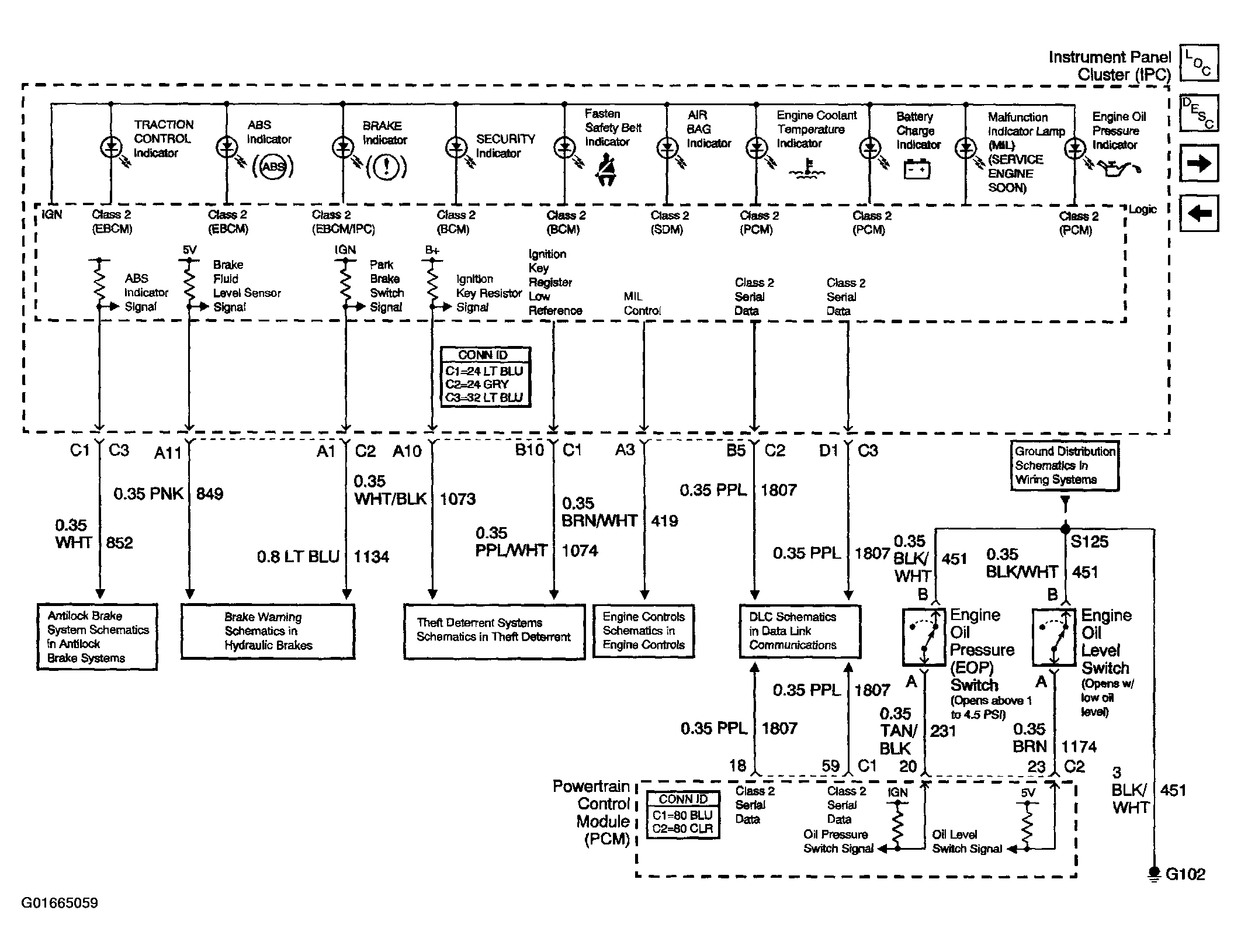

Fig 3: Instrument Cluster Schematics (Indicators)

Courtesy of GENERAL MOTORS CORP.

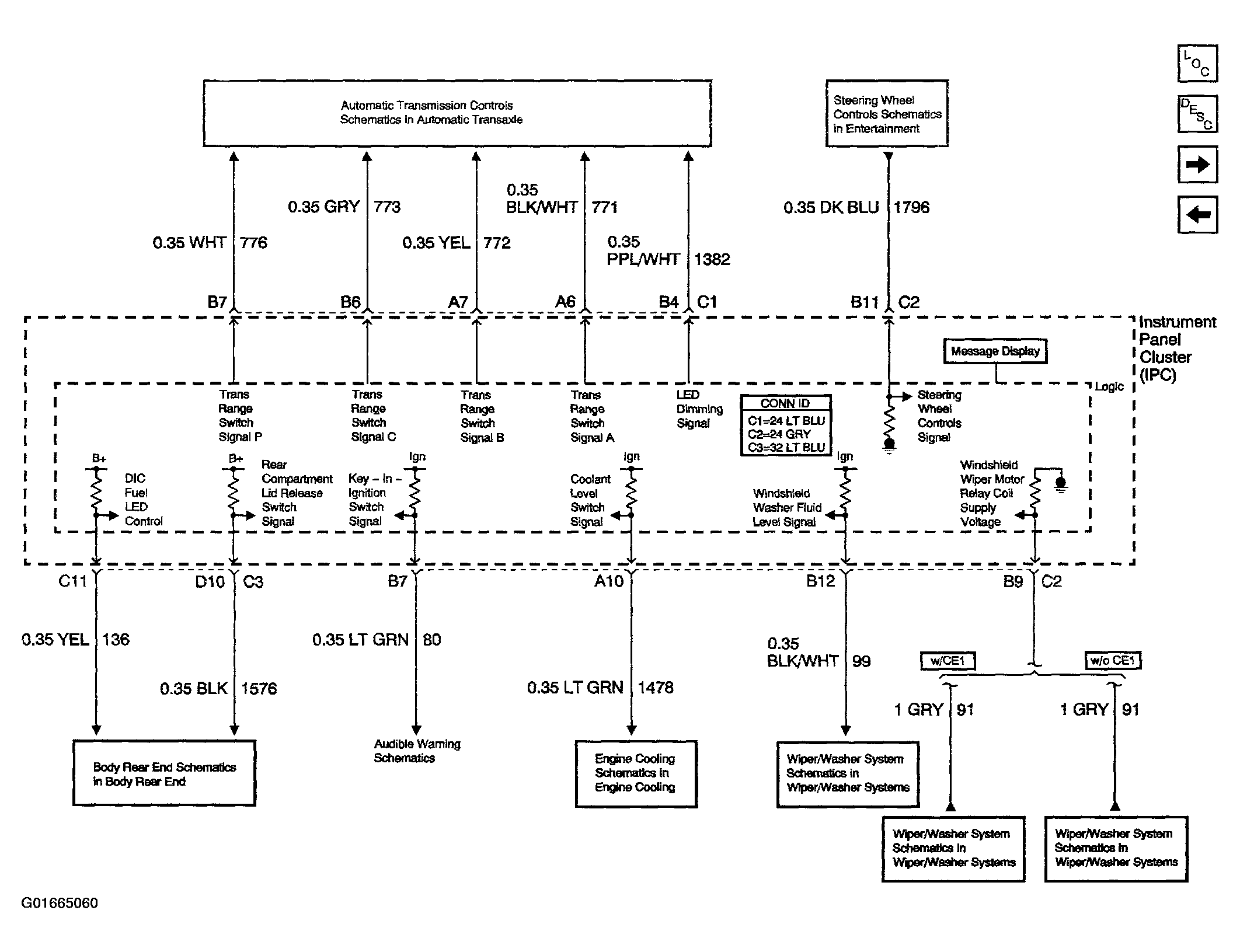

Fig 4: Instrument Cluster Schematics (Message Display Signals (1 of 2))

Courtesy of GENERAL MOTORS CORP.

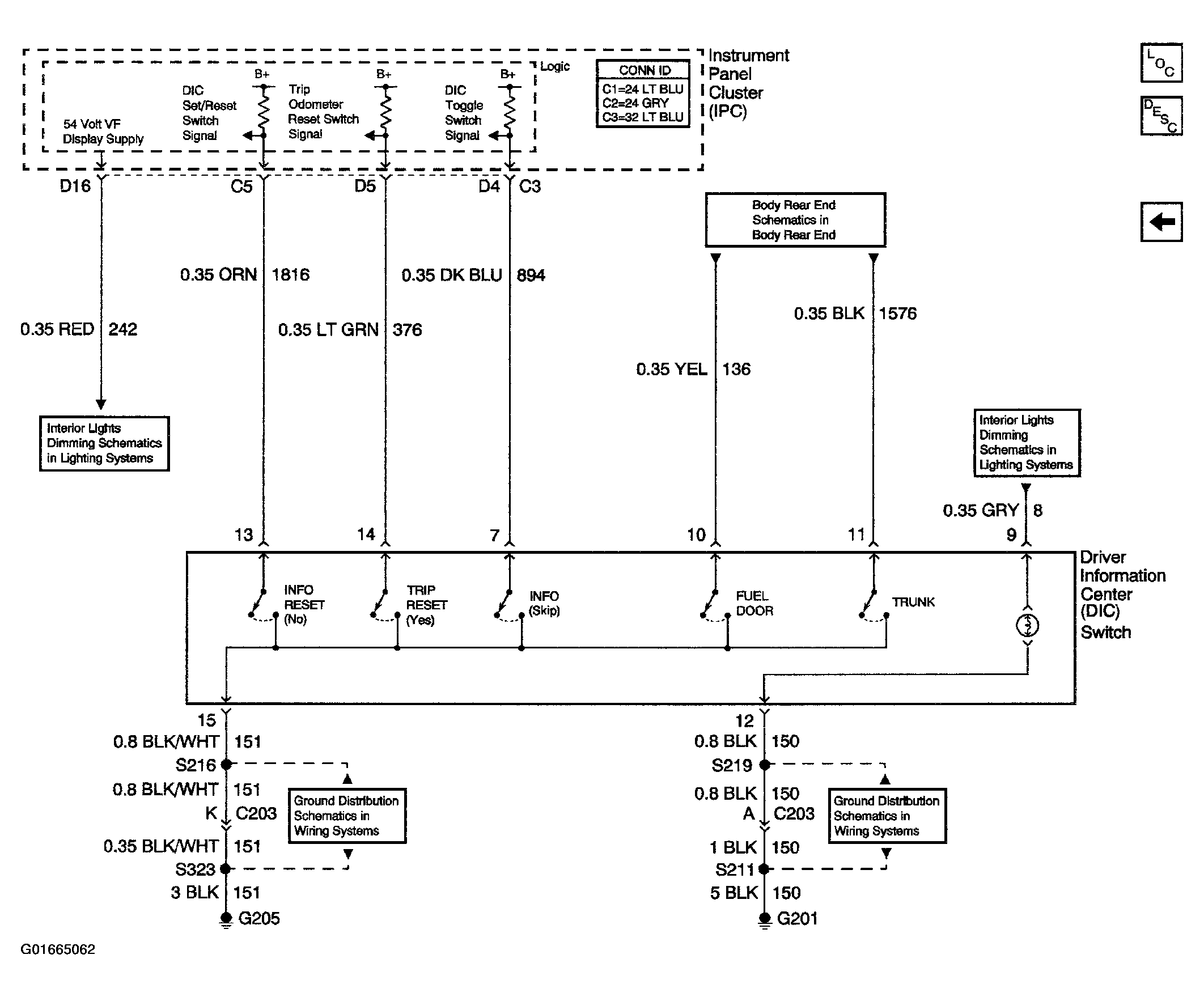

Fig 5: Instrument Cluster Schematics (Message Display Signals (2 of 2))

Courtesy of GENERAL MOTORS CORP.

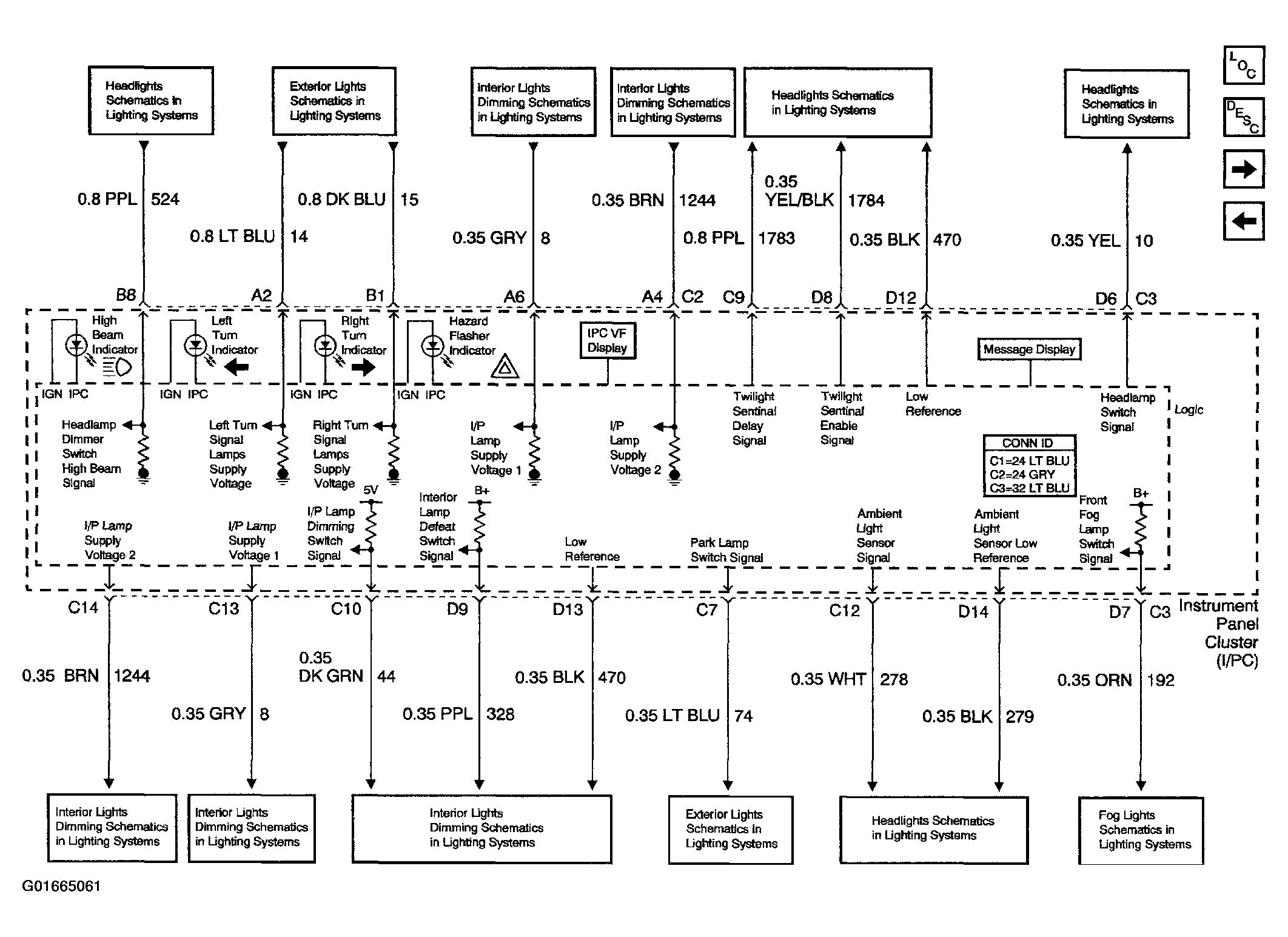

Fig 6: Instrument Cluster Schematics (DIC Signals)

Courtesy of GENERAL MOTORS CORP.
