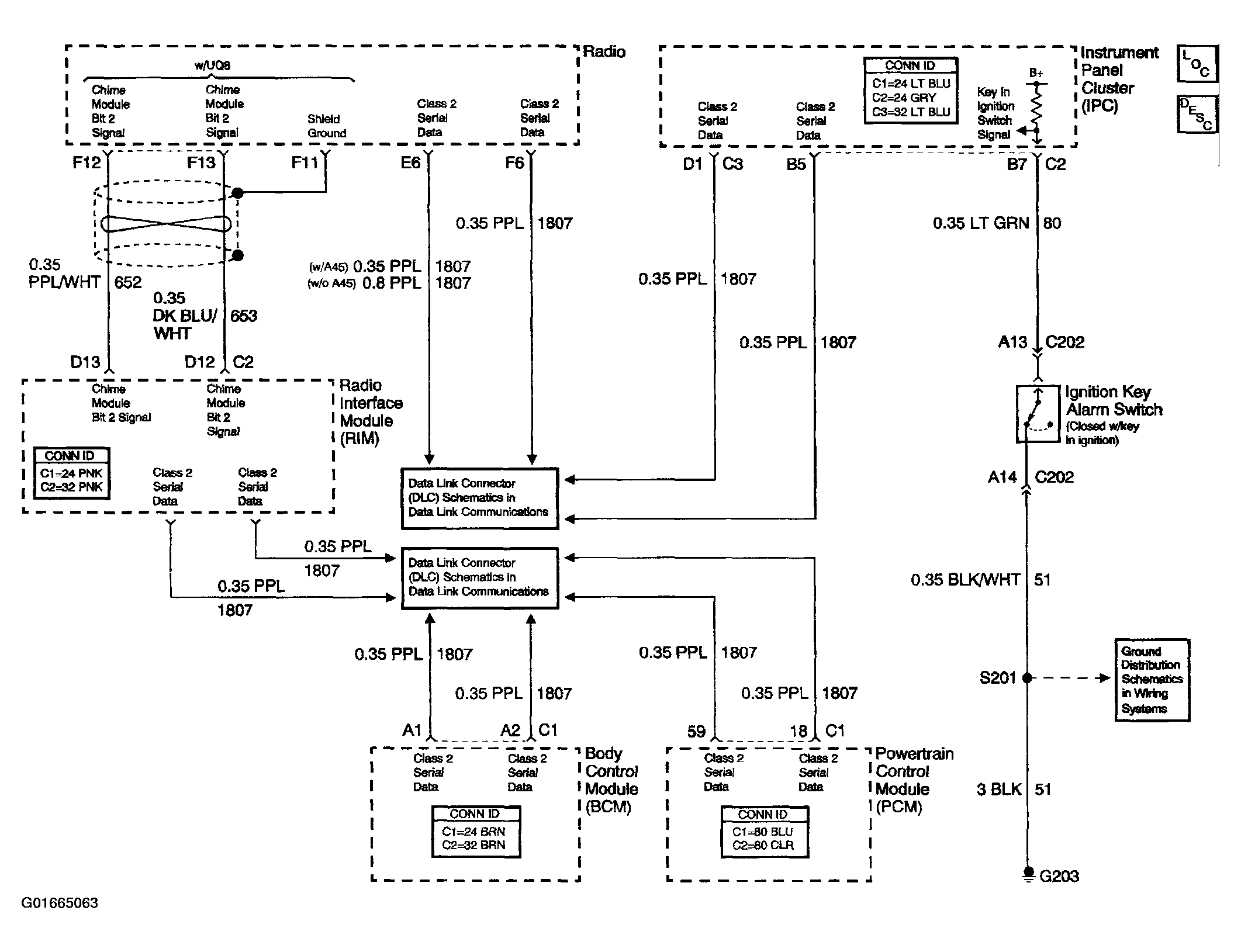

Home >> Cadillac >> 2002 >> Eldorado ECS >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel, Gauges & Console >> Schematic and Routing Diagrams >> Audible Warnings Schematics
