Removal Procedure

  1. Remove the instrument panel storage compartment. Refer to Storage Compartment Replacement - IP .
  2. Disengage the retainers fastening the instrument panel storage compartment switch plate bezel. Remove the bezel.
  3. Squeeze the valet switch retainers.
  4. Pry out the valet switch.
  5. Remove the valet switch (1).

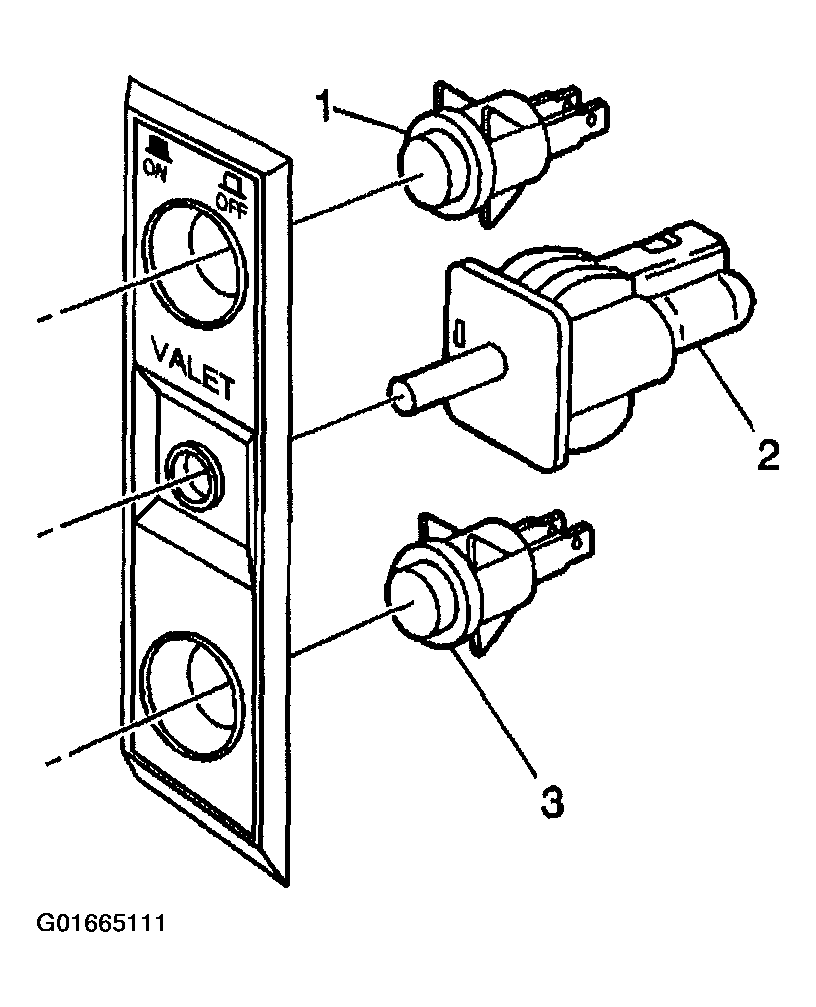

    Fig 1: Identifying Valet Switch
    G01665111Courtesy of GENERAL MOTORS CORP.
