Installation Procedure

  1. Align the valet switch to the instrument panel storage compartment switch hole opening.

    Push the valet switch (1) inward in order to fasten.

  2. Align the instrument panel storage compartment switch plate bezel to the instrument panel storage compartment.

    Push inward in order to fasten the bezel.

  3. Install the instrument panel storage compartment. Refer to Storage Compartment Replacement - IP .

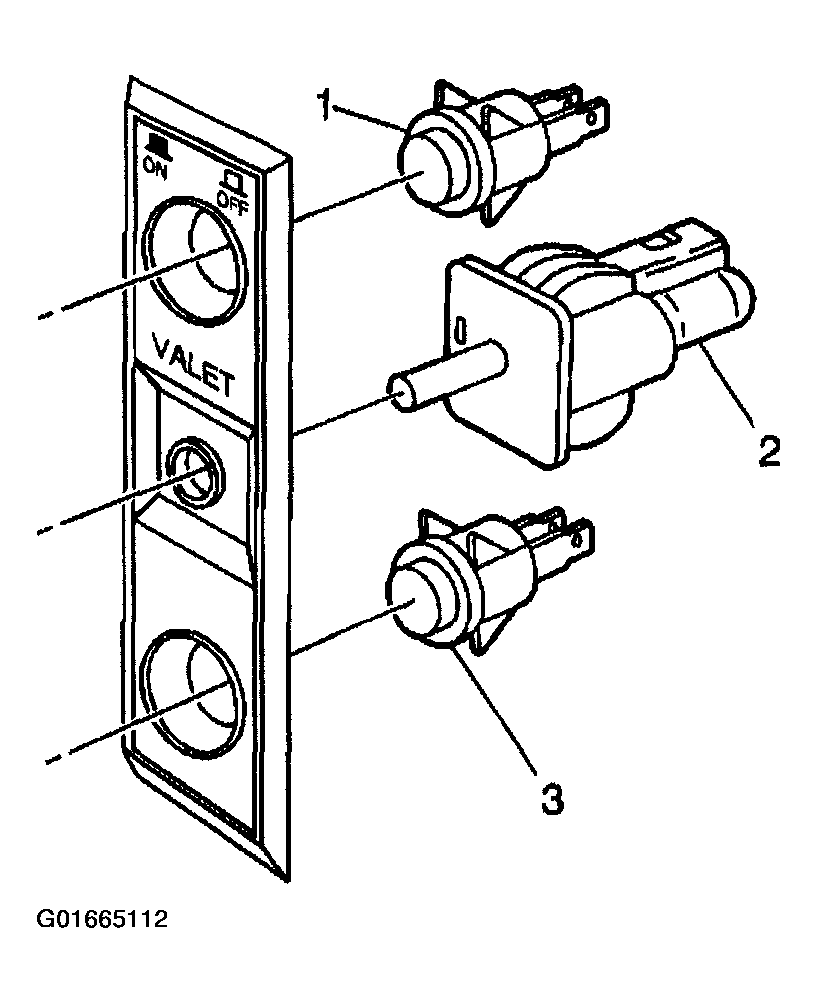

    Fig 1: Identifying Valet Switch
    G01665112Courtesy of GENERAL MOTORS CORP.
